Burndy YAEV18BOX Nylon Ring Terminal For 22 - 18 AWG

Manufacturer: Burndy | Catalog # YAEV18BOX | Cooper Electric Part # 1309022
$3.24/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Copper Lug; Ring Tongue; 1 Hole w/ Inspection Hole; AN 22-18; #8-#10 Stud; Insulated; Short Barrel; Tin Plated; 600 Volts Max.

Technical Information

Applications
For High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants
Cable Size
22 - 18 AWG
Color Coding
Red
Conductor Size
18 AWG
Connection Type
Ring Terminal
Insulation Type
Nylon
Material
Copper
Max Voltage
600 V
Plated?
Yes
Plating Type
Tin
Stud Size
#10,#8
Temperature Rating
105 degrees C
Tongue Type
Ring
Type
YAEV, Heavy Duty
Voltage
600 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810023334
Color
Red
GTiN
00781810023334
Product UPC
78181002333

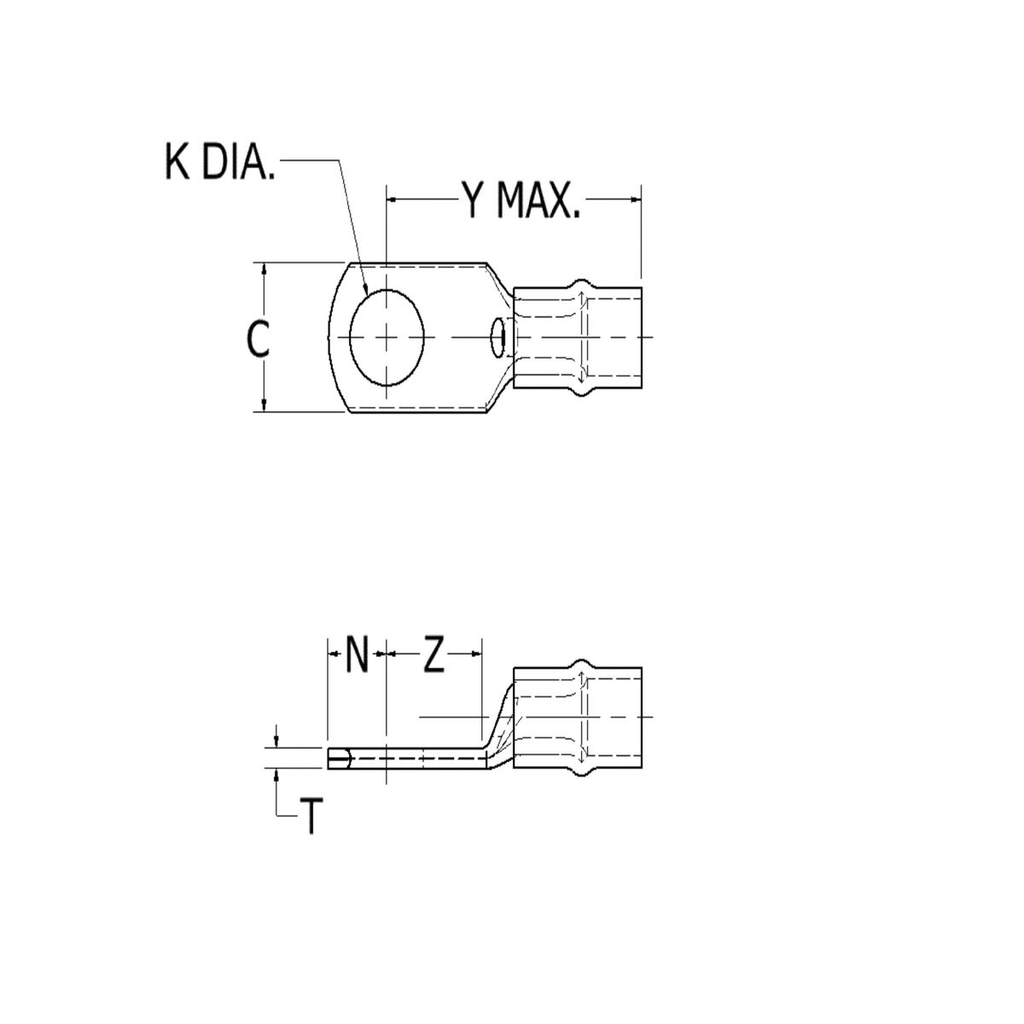

Dimensions

Height
0.18 Inch
Hole Size
0.20 in
Length
0.91 Inch
Overall Length
23 mm
Pad Width
0.31 in
Width
0.31 in

Certifications and Compliance

Country of Origin
USA
CSA
No
Features
  • Double thick tongue for maximum reliability and electrical capacity plus an extra strong terminal tongue
  • Manufactured from one-piece pure electrolytic copper high conductivity, low resistance with no seams to split plus ductility for excellent crimp forming properties
  • Electro-tin plated to provide long-lasting corrosion resistance
  • Nylon insulation is locked in place Insulation will not move or twist off
  • 600 volt nylon insulation providing high dielectric strength and stability in demanding oily evironmental conditions
  • Color Coded providing quick, easy wire size connector selection
