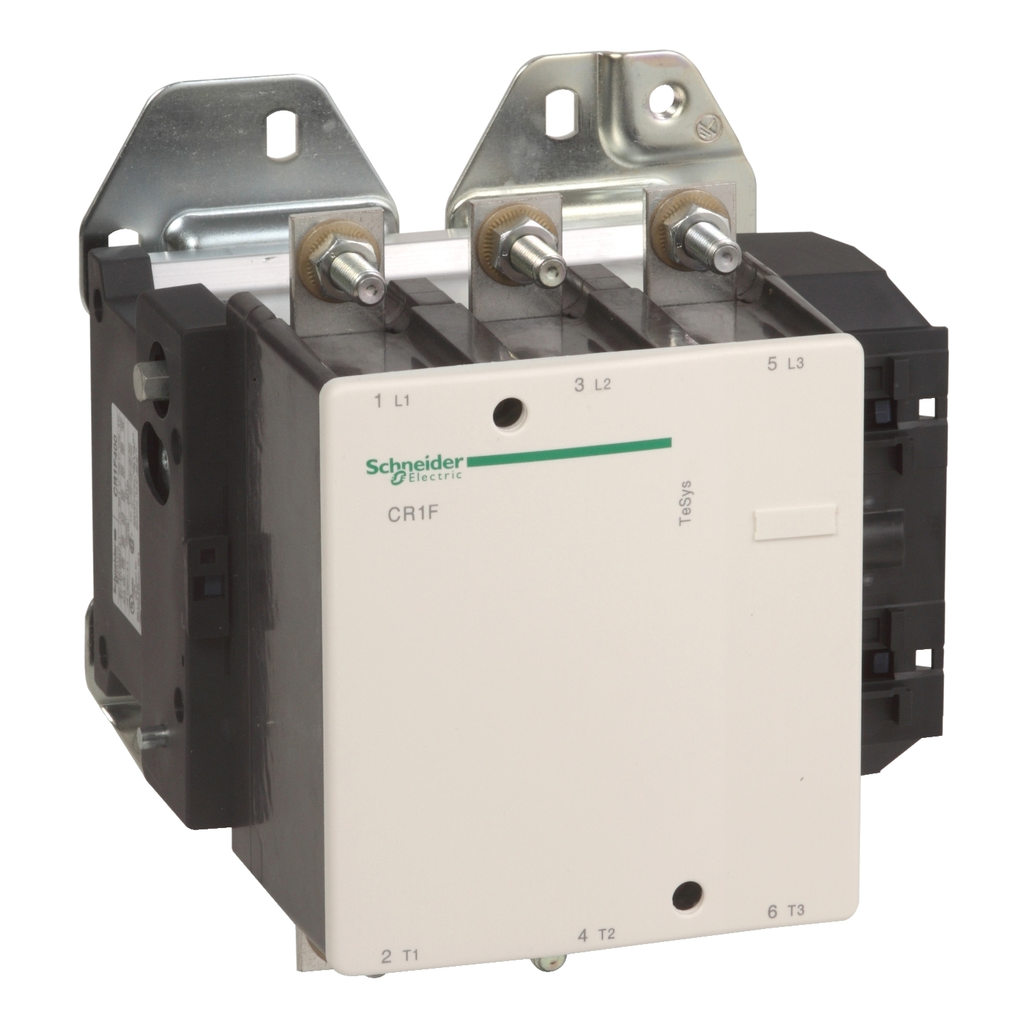

Square D CR1F400M7 600 VAC 400 Amp 3-Pole Reversing Magnetic Latching Contactor

Manufacturer: Square-D / Schneider | Catalog # CR1F400M7 | Cooper Electric Part # 1307624
$2,191.83/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys F magnetic latching contactor, 3 poles (3NO), 400A/1000V AC-3, for motor applications up to 200kW@400V. It provides a double coil 220-230V AC (50-400Hz) or DC for latching and unlatching, bolt terminals for bars or cables with lugs. Supply to the coils must be applied by pulsed contacts leading to energy saving and no sensibility to interferences for contactors remaining in closed state for long periods. For operating rates until 120 cycles/hour and environments until 70.C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks (instantaneous and time delay auxiliary contacts, suppressor blocks) and connection accessories (to be ordered separately). It conforms to IEC 60158-1 and IEC 60947-4.

Technical Information

Applications
CONTROL,MOTOR CONTROL-RESISTIVE LOAD
Coil Voltage
1000 V AC 25...200 HZ,220...230 V AC 50...400 HZ-220...230 V DC
Contact Configuration
3 NO
Impedance
0.28 MOhm - Ith 500 A 50 Hz
Net Weight
9.1 kg
Operating Cycles
120 cyc/h 104 F (40 C)
Operating Temperature
-15-70 Adegrees C
Power Consumption
...400 Hz
Size
206 MM,213 MM,219 MM
Standard
CSA C22.2 No 60947-4-1,EN/IEC 60947-1,EN/IEC 60947-4-1,JIS C8201-4-1,UL 60947-4-1
Storage Temperature
-60-80 degrees C
TC Connection
LUGS-RING TERMINALS 2 150-150 MMA- BARS 2 30 X 5 MM-POWER CIRCUIT BOLTED CONNECTION
Type
MAGNETIC LATCHING CONTACTOR
Voltage
1000 Volt
Wattage
1600 VA AC 50...400 HZ LATCHING-16 VA AC 50...400 HZ UNLATCHING-1600 VA DC LATCHING-16 VA DC UNLATCHING45 Watt AC-3 - 70 Watt AC-1

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS F

General Product Info

12-Digit UPC
785901548553
GTiN
03389110548556
Product UPC
78590154855
Weight
9.1 kg

Dimensions

Depth
219 mm
Height
206 mm
Warranty Length
18 mth
Width
213 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CB Scheme,CE,CSA,EAC,UKCA,UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • LA9F703
  • LA9FJ970
  • LA9FJ976
  • LA9FL4J
Cross Sell Products
  • LADN11
  • LADN20
  • LADN22
  • LADT0
Spare Part Products
  • LA5F400803
  • LA9FG970
