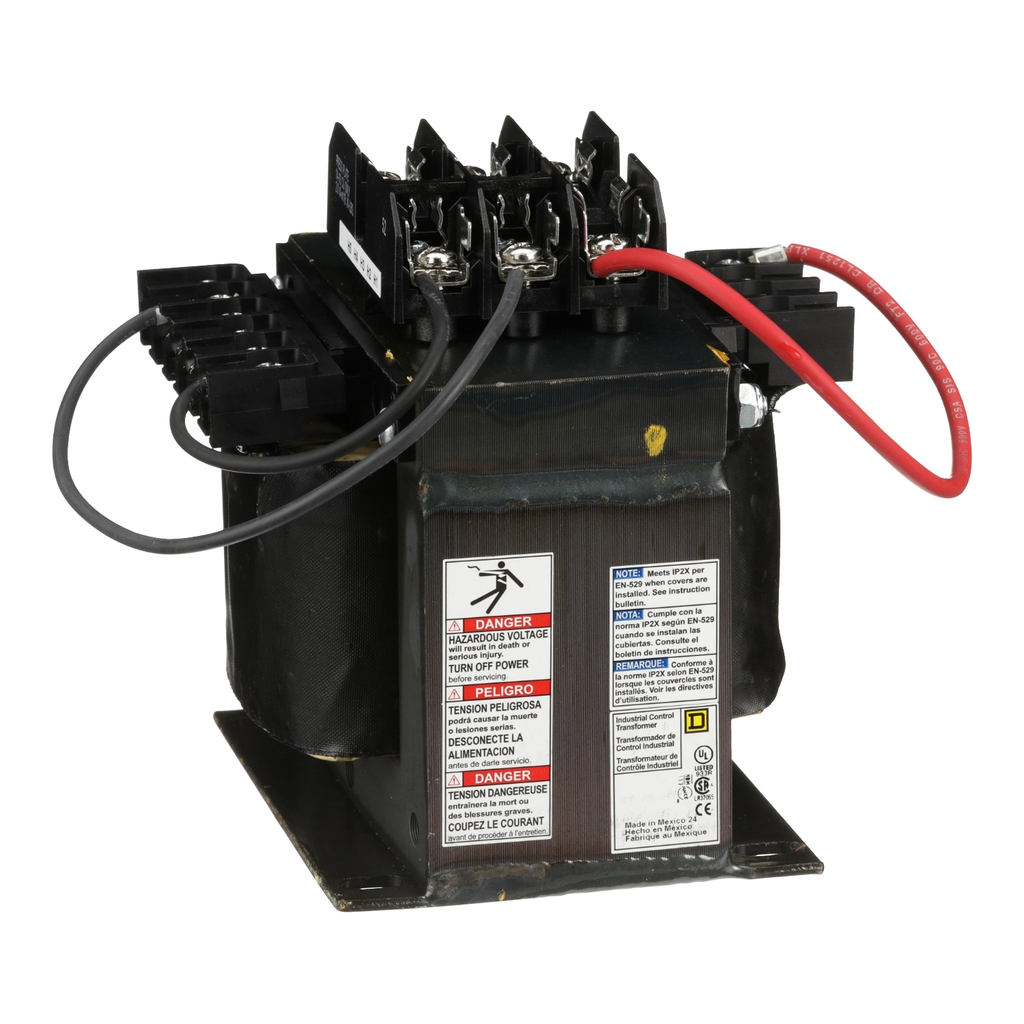

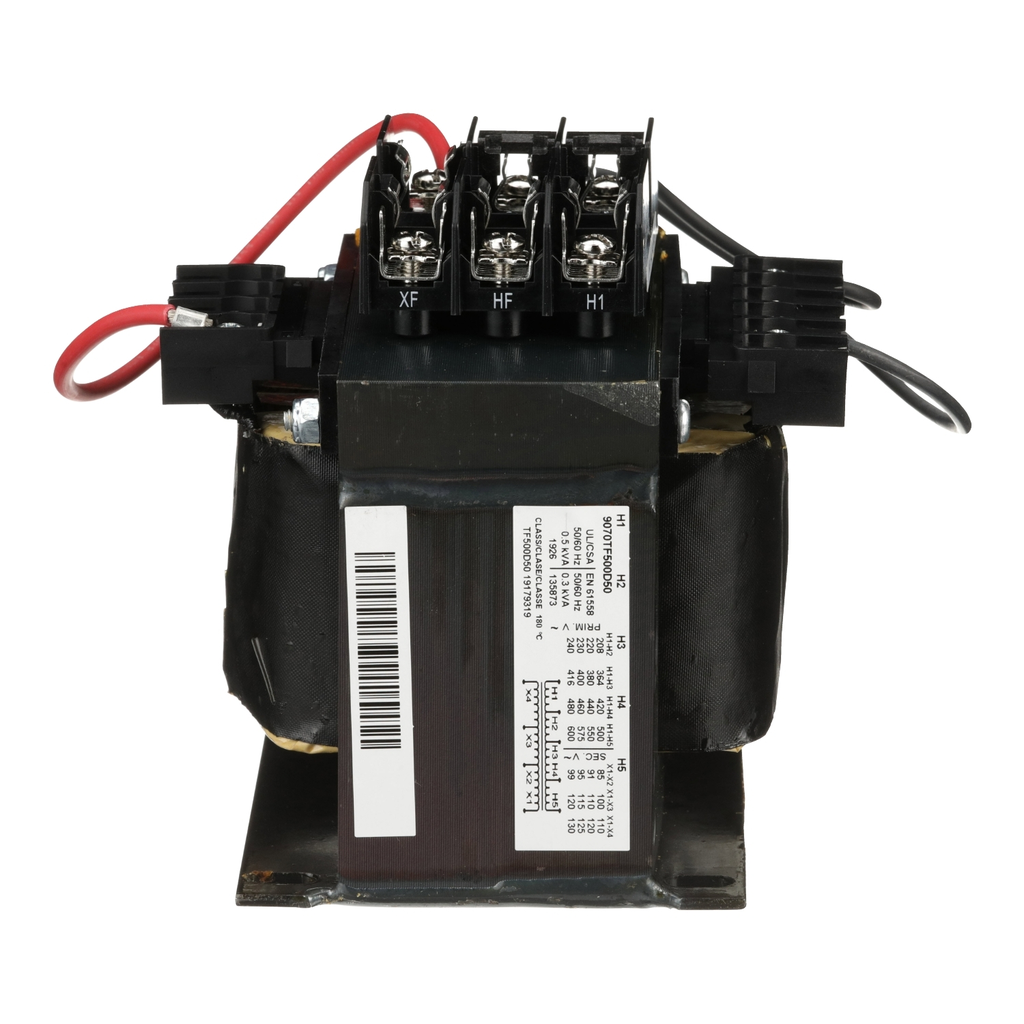

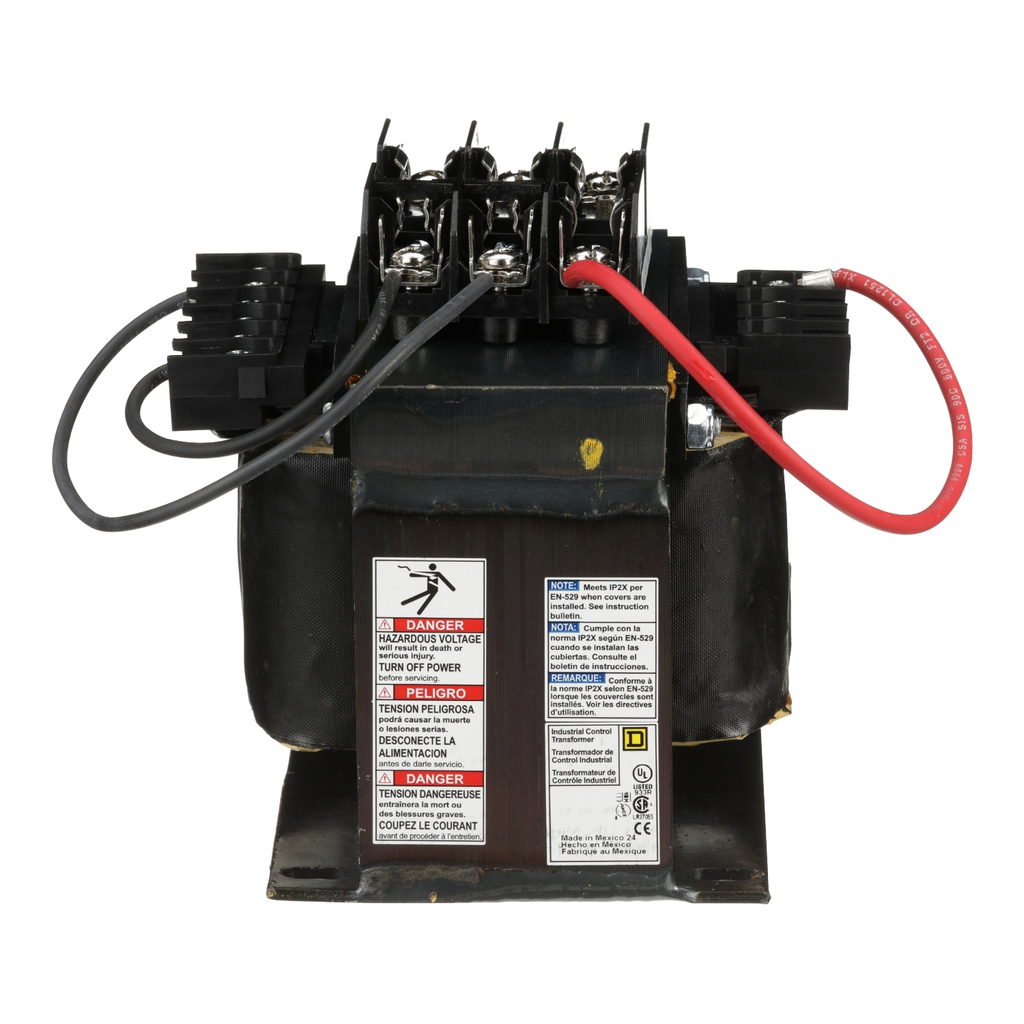

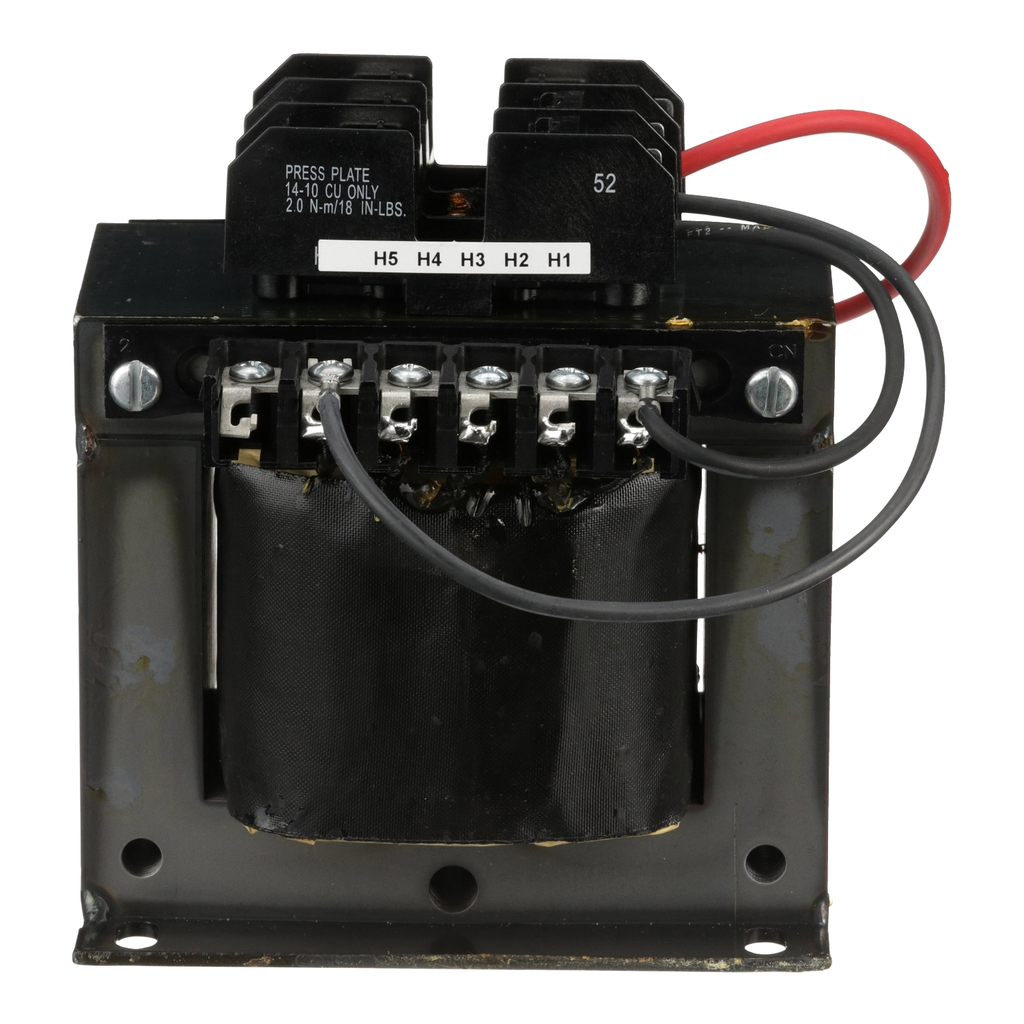

Square D 9070TF500D50 500 VA 240/416/480/600 VAC Primary 99/120/130 VAC Secondary 1-Phase Control Transformer

Manufacturer: Square-D / Schneider | Catalog # 9070TF500D50 | Cooper Electric Part # 130748
$1,092.00/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
12 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
Type TF are control power transformers that have factory installed fuse blocks into the top of the device with two primary and one secondary fuse block. The primary fuse block is designed for rejection-type class CC fuse and for the secondary fuse block it accept non-rejection-type, midget fuse. Type TF transformers come in the MultiTap version as well. This industrial control transformer has a power rating of 500VA and is single phase. It has a 208/360/416/520 V primary voltage and 85/104/115 V secondary voltage with a temperature rise of 115 .C. Dimensions for this product are 3.2 in (H), 3.75 in (W), 3.59 in (D). This transformer has screw clamp terminals connections and its winding is made of copper. This device is compatible with the fingersafe cover FSC1. This transformer complies to UL, CE & CSA standards.

Technical Information

Applications
FSC23
Enclosure
NOT RATED (OPEN DEVICE)
Fuse Type
1.50 in
Material
Copper: Winding
Number of Phases
1 Phase
Power Rating
500 VA;500 VA UL;500 VA CSA;500 VA NOM;300 VA
Primary Voltage
208/360/416/520 V
Secondary Voltage
85/104/115 V
TC Connection
SCREW CLAMP
Temperature Rating
115 DEGREES C
Temperature Rise
115 degrees C
Type
TF
Voltage
208/360/416/520 Volt

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901563624
GTiN
00785901563624
Product UPC
78590156362

Dimensions

Depth
5.61 Inch
Height
5.81 Inch
Warranty Length
18 mth
Width
5.25 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA File LR37055 Guide 184-N-90,UL Listed File E61239
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 9070FP1
  • 9070FSC23
  • 9070FB3B
  • 9070FB2B
  • 9070SF41B
  • 9070SF25B
  • 9070FB1B
