Lithonia JEBL-12L-40K-80CRI-WH LED High Bay Light Fixture, 92W, 13,356 Lumens, 4000K, 120-277V

Manufacturer: Lithonia Lighting | Catalog # JEBL 12L 40K 80CRI WH | Cooper Electric Part # 1307227
$353.99/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
The JEBL is built to last with 6kV surge protection standard, 55.C ambient temperature rating and IP65 rated for elimination of dust, moisture and airborne contaminants. The unique, quick-connect, driver-to-optical assembly interface allows for quick and easy maintenance for applications including warehousing, gymnasiums, manufacturing and outdoor canopies.

Technical Information

Applications

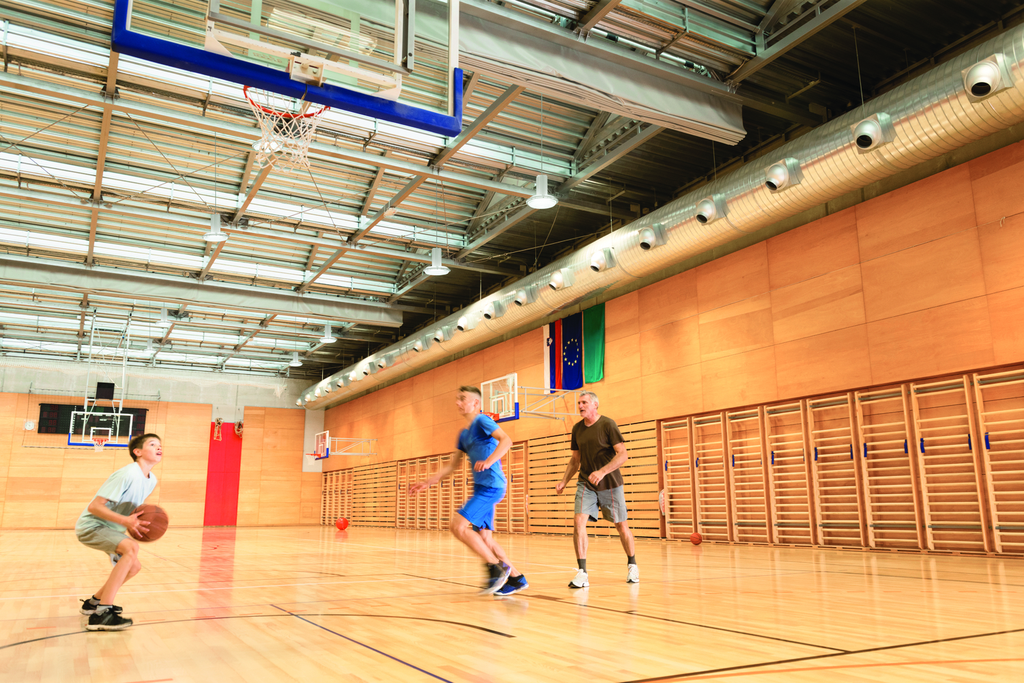

For Warehousing, Gymnasiums, Manufacturing and Outdoor Canopies, Indoor and Wet Locations
Average Rated Life
54,000 hr
Color Accuracy
80
Color Rendering Index
80
Color Temperature
4000 K
Correlated Color Temp
4,000 K
Dimmable?
Yes
Enclosure Rating
IP65
Enclosure Type
IP65
Fixture Wattage
92.4 W
Lamp Type
LED
Lens Color
White
Lens Material
Tempered Glass
Lens Type
0.16 in T Clear Tempered Glass
Lumens
12,000 Lumen
Material
Aluminum
Mounting Type
Pendant, Suspended
Power Source
Hardwired
Style
Traditional
Temperature Rating
55 degrees C Ambient
Type
High Bay
Voltage
120 Volt
Wattage
95 Watt

Manufacturer Information

Brand
Lithonia Lighting
Sub Brand
Contractor Select

General Product Info

12-Digit UPC
191848153840
Color
White
Construction
New Construction,Remodel
Environment
Indoor
Environmental Conditions
Indoor
Finish
Gloss
Fixture Type
High Bay
GTiN
00191848153840
Housing Material
Die-Cast Aluminum
Product UPC
19184815384
Shape
Round
Weight
7.53 lb

Dimensions

Height
5 Inch
Length
13 Inch
Width
13 in dia

Certifications and Compliance

Country of Origin
China,China
Applications
  • Manufacturing
  • Warehouses
Features
  • TECHNOLOGY: JEBL features a white die-cast aluminum housing along with a removable die-cast aluminum driver housing. Powder coat corrosion resistant finish provides 500 hours salt fog rating.
  • ENERGY SAVINGS: Easily replace 4-lamp T5HO, 6-lamp T8 with LEDs that save energy and reduce total cost of ownership
  • DIMMING: 0-10V dimming standard for a dimming range of 100 to 10 percent
  • RATINGS: CSA listed to US and Canadian Safety Standards; Wet location listed
  • VOLTAGE: Input voltage is MVOLT (120-277V) and HVOLT (347-480V)
  • HOURS OF LIFE: L90 > 54,000 hours
  • INSTALLATION: Install 1/4 in. NPT eye bolt with 1/2 in. thick loop and 6 ft. cord with dimming lead provided for easy installation and optional surface mount brackets
  • BATTERY: Field-installable LED emergency driver sold separately
  • WARRANTY: 5-year limited warranty
  • DIMENSIONS: diameter 13 in. x depth 5 in.
Standards
  • cUL
  • ULDLC Premium
  • DLC Standard
