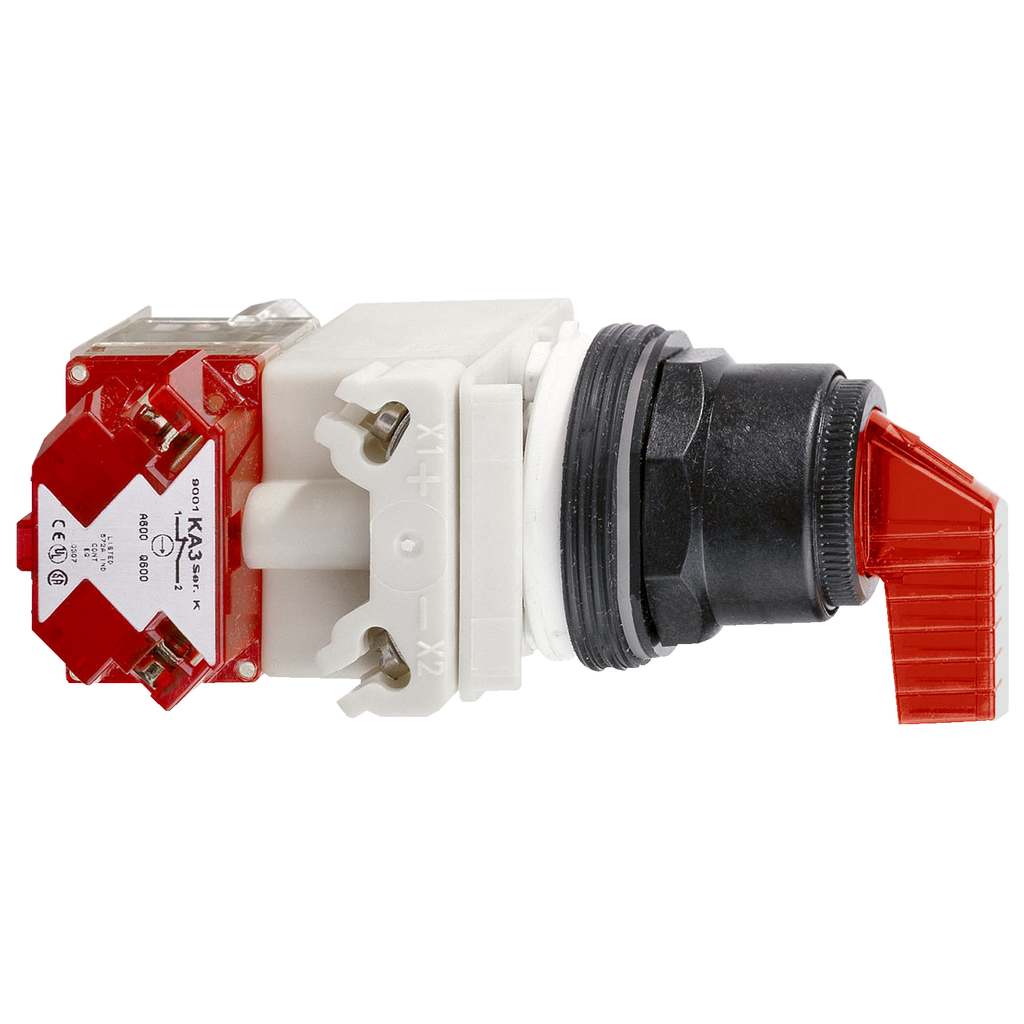

Product image for SQD 9001SK73J35R Illuminated select
Image thumbnail 0
Image thumbnail 1
Email

SQD 9001SK73J35R Illuminated select

Manufacturer: Square-D / Schneider | Catalog # 9001SK73J35R | Cooper Electric Part # 1306790
$167.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Illuminated selector switch head, Harmony 9001SK, plastic, standard handle, red, 30mm, 3 positions, spring return right to center, 24-28V

Technical Information

Action
SPRING RETURN (RIGHT TO CENTRE)
Actuator
Red standard knob;Right to centre spring return;3 positions
Bezel Material
Plastic
Contact Configuration
Without contact block
Enclosure
NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 4X-NEMA 6
Indicator
BA 9S
Light Source
incandescent NULL
Material
Plastic
Net Weight
0.059 kg
Operating Temperature
-25-70 Adegrees C
Size
1.18 in
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,JIS C 4520,JIS C 852,UL 508
Storage Temperature
-40-70 degrees C
Type
Head for illuminated selector switch
Voltage
24...28 Volt AC/DC

Manufacturer Information

Brand
Square D
Sub Brand
9001SK

General Product Info

12-Digit UPC
785901034575
GTiN
00785901034575
Product UPC
78590103457
Weight
0.13 lb

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
NEMA,UL 508
Country of Origin
Mexico
