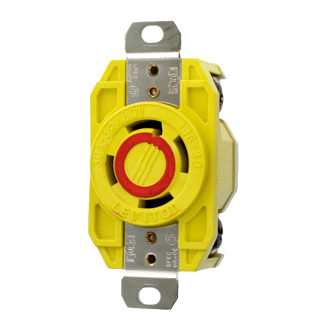

Product image for LEV 27CM-30 20A 277V CR RECEPTACLE
Email

LEV 27CM-30 20A 277V CR RECEPTACLE

Manufacturer: Leviton Mfg Co | Catalog # 27CM-30 | Cooper Electric Part # 1305023
$101.49/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
30 Amp, 480 Volt 3-Phase, NEMA L16-30R, 3P, 4W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, Corrosion-Resistant, V-0-MAX - YELLOW

Technical Information

Amperage
30 Amp
Applications
Commercial
Base Material
Nylon,Nylon
Conductor Size
14-8 AWG
Connection Type
Back Wired,Side Wired
Dielectric
2000 V
Dielectric Strength
2000 (Min.)
Face Material
Nylon
Flamability Class
Rated V-0 Per UL 94
Grounding
Grounding
Horsepower
10 hp
Material
PBT
Mounting Type
Box
NEMA
WD-6
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
3.63 H x 1.69 W x 1.31 D IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 - 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire
Type
Flush Mount Locking Receptacle
Voltage
480 Volt
Wire Count
4
Wire Size
14-8 AWG

Manufacturer Information

Brand
Leviton

General Product Info

12-Digit UPC
078477108208
Color
Black on Yellow
Environment
Corrosive
Environmental Conditions
Flammability (Rated V-0 per UL94)
GTiN
00078477108208
Product UPC
07847710820

Dimensions

Warranty Length
Lifetime Limited,Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
Features
  • Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
NEMA
  • L16-30R
