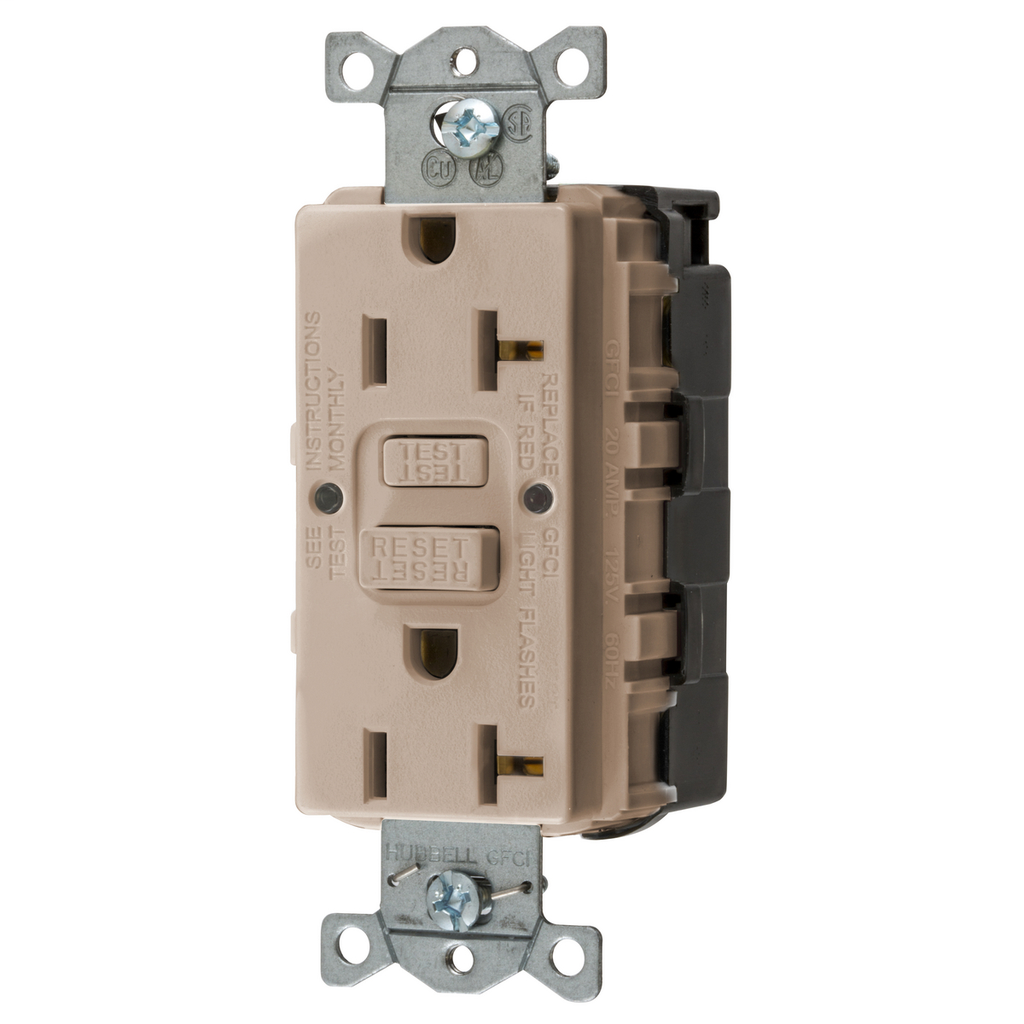

Product image for Hubbell GFRST20SNAPAL20A COMM SELF TEST SNAP GFR ALMOND
Email

Hubbell GFRST20SNAPAL20A COMM SELF TEST SNAP GFR ALMOND

Manufacturer: Hubbell Wiring Device | Catalog # GFRST20SNAPAL | Cooper Electric Part # 1304503
$36.22/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure
Power Protection Devices, Receptacle, SNAP-Connect, Self Test, GFCI, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Almond

Technical Information

Amperage
20 Amp
Applications
Commercial Grade
Conductor Size
14-12 AWG
Connection Type
Pre-Wired
Current
20 Amp
Grade
Commercial
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
3.28 in x 1.77 in x 1.47 in
Standard
NEC®
Style
Standard
TC Connection
Connectorized
Temperature Rating
-40 to 75 degrees C
Type
Decorator, Self-Test
Voltage
125 Volt
Wattage
2500 Watt
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
SnapConnect®

General Product Info

12-Digit UPC
883778124501
Color
Almond
GTiN
00883778124501
Product Series
Heavy Duty
Product UPC
88377812450

Dimensions

Height
1.47 Inch
Length
3.28 Inch
Width
2.048 in

Certifications and Compliance

Country of Origin
China
Features
  • Audible SNAP, indicates solid connection
  • Patented shutter design for tamper-resistant
  • Compliant with NEC® 406.12 and NEC® 517-18(c)
  • Patented AUTOGUARD® self test technology
  • Triple wipe construction
