OnQ AC2F10BK FIBER 18GB HS HDMI CMG

Manufacturer: Pass & Seymour / Legrand | Catalog # AC2F10BK | Cooper Electric Part # 1303341
$497.03/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Unlike copper HDMI cables that are distance-limited to 7 meters, the 18 Gbps Active Optical (AOC) HDMI Cables from Legrand reliably distribute high definition HDMI signals up to 75 meters.

Technical Information

Applications
Residential Applications
Conductor Material
Tinned Copper
Conductor Size
30 AWG
Cord Length
32.8 ft
Number of Conductors
19
Standard
ANATEL,CA Energy Commission Title 24,COFETEL,CUL,FCC,IC,SUTEL
Temperature Rating
32 - 140 degrees F
Termination Type
19 Pin To 19 Pin
Type
STFE Elite Series - Active Tracking Filters with Surge Protection
Voltage
5 (max) Volt
Wire Size
30 AWG

Manufacturer Information

Brand
OnQ Solutions
Sub Brand
Legrand-On-Q

General Product Info

12-Digit UPC
804428432289
Color
Black
Environmental Conditions
5 - 85%
GTiN
00804428432289
Jacket Color
Black
Jacket Material
Black CMP-OF
Product UPC
80442843228

Dimensions

Length
32.8 Foot
Outside Diameter
0.224 x 0.142 in
Features
  • Supports: 18.2Gbps bandwidth, Ultra HD - 4K@60Hz 4:4:4. High Dynamic Range (HDR), Deep Color, ARC
  • Available in lengths from 10 to 75 meters
  • Constructed of plastic optical fiber for added flexibility, making them easier to pull in the wall or run around tight corners
  • Enhanced retention clips keep the cable firmly in place, requiring 4.5lbs of pulling force to remove

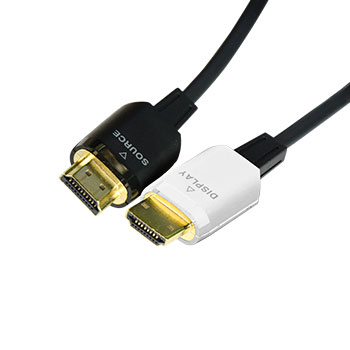

  • Directional cable features color-coded cable ends to easily discern Display end from the Source end
  • Solely powered by the source device - do not require external power adapter
  • Rated: UL plenum, CMP
  • Ideal applications: commercial AV installations, such as conference rooms, sports bars, or classrooms
Eco-Benefit Information
  • RoHS Compliant
