Thomas & Betts J973 Non-Insulated Large Tubular Ring Terminal - 1/0-2/0, 3/8"bolt (50/Pkg)

Manufacturer: ABB | Thomas & Betts | Catalog # J973 | Cooper Electric Part # 130212
$806.84/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Friday 8:00am ET
200 available

For Delivery

Order by Friday 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Product Brochure

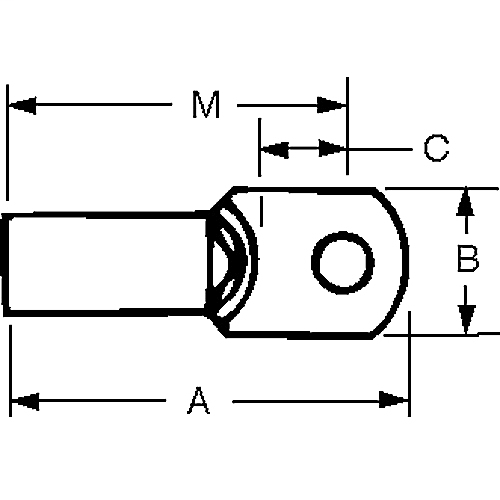

Non-Insulated Tubular Ring Terminal, Length 1.99 Inches, Width .84 Inches, Bolt Hole 3/8 Inch, Wire Range 1/0AN-2/0, Copper, Tin Plated, 50 Pack

Technical Information

Barrel Type
Straight
Conductor Size
1/0-2/0 AWG
Insulation Type
Non-Insulated - Tubular
Material
Copper
Number of Holes
1 Hole
Standard
UL E9809
Stud Size
3/8 in
Temperature Rating
150 degrees C
Type
Non-Insulated Ring Terminal
Voltage
600 Volt
Wire Size
0-00 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210815671
Color
Metallic
Finish
Tin Plated
GTiN
05414363131878
Product UPC
78621081567
Features
  • These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire).
Notes
  • Not available on Mylar Tape.
