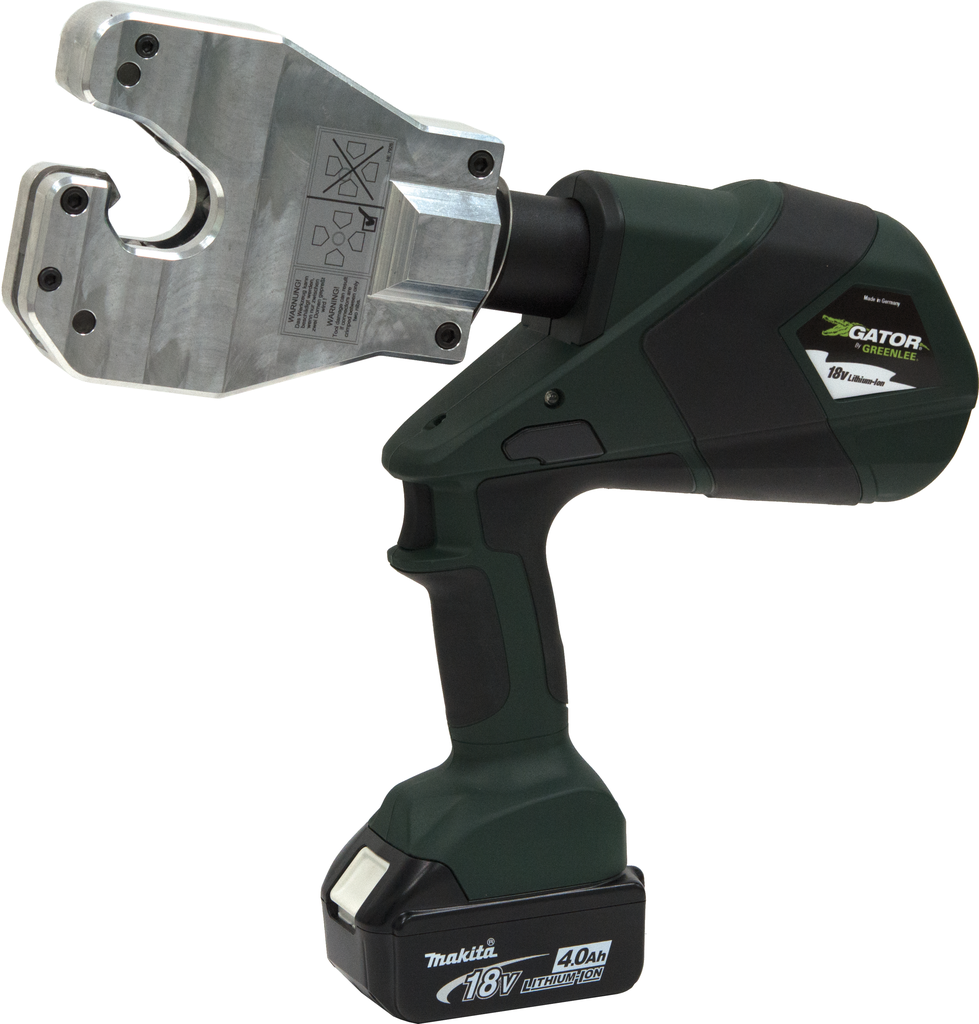

Greenlee EK6ATLX11 Six Ton Quad Point Crimper (Open Face), with Two Batteries and 120V Charger

Manufacturer: Greenlee | Catalog # EK6ATLX11 | Cooper Electric Part # 1299640

$5,675.13/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.;Intelligent Crimping SystemTechnology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications;State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times;Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy;LED light provides the operator with the battery charge and tool maintenance status;Two-stage hydraulic system provides fast advance and power speeds, saving time;Forward handle position improves tool balance;One trigger controls all tool functions;Crimping head rotates 350.;Tools automatically retract when the crimping cycle is complete;Overmolded tacky grip areas make gripping the tool easier and more comfortable;LED work light illuminates dark work areas;Greenlee battery-powered crimping tools now use bio-degradable oil;Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life;Utilizes four indentors to make the crimp;Flip-top style uses a pull pin to open head for easy removal from the connector;U.S. Patents #6,206,663 and #6,065,326;Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger

Technical Information

Applications
6 Ton Crimping
Conductor Size
500 kcmil
Connector Type
Color-coded lugs and splices
Crimping Force
12,400 lb
Handle Type
Pistol Style with Over Molded Rubber Grip
Standard
C/US UL Listed
Type
Dieless, Quad Flip, Standard
Wire Size
6 AWG-500 MCM Cu, 6 AWG-400 MCM Al

Manufacturer Information

Brand
Greenlee
Sub Brand
Gator®

General Product Info

12-Digit UPC
783310611073
GTiN
00783310611073
Product UPC
78331061107

Dimensions

Overall Length
14 in

Certifications and Compliance

Country of Origin
Germany
Features
  • Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
  • Intelligent Crimping SystemTechnology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
  • State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
  • Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
  • LED light provides the operator with the battery charge and tool maintenance status
  • Two-stage hydraulic system provides fast advance and power speeds, saving time
  • Forward handle position improves tool balance
Application
  • 6 Ton Crimping
