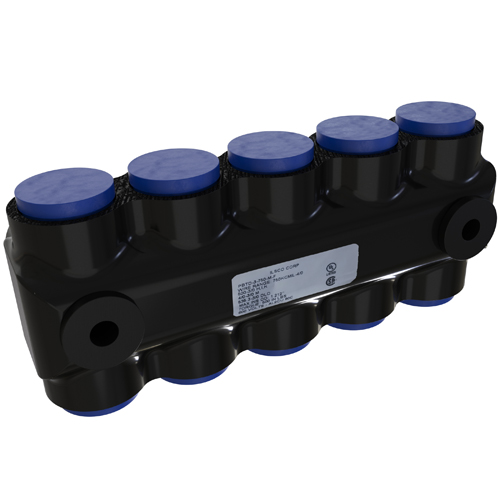

ILSCO PBTD-3-750-M-F INS (3)750-4/0

Manufacturer: Ilsco | Catalog # PBTD-3-750-M-F | Cooper Electric Part # 1299160
$426.64/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Nimbus4Flex Insulated Flexible Multi-Tap Connector, Dual Sided Entry, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,2 mounting hole(s), mounting hole spacing 6.24 in., UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 750 kcmil - 4/0 Str, Contains DE-OX®, 3 conductors, 3 ports/wireways, Plastisol insulation, Drive Type Main 1/2 Internal Hex, flex conductor range 500-3/0 H,I,K 4/0-3/0 M 535.3-3/0 DLO, rated for 600 V, primary color Black, 1 poles,

Technical Information

Amperage
CU:535;AL:435
Applications
Insulated Flexible Multi-Tap Connector, Dual Sided Entry
Conductor Material
Aluminum,Copper
Conductor Type
Flex,Stranded
Connection Type
Mechanical
Material
Aluminum
Mounting Hole Size
0.385 in
Number of Conductors
3
Number of Holes
2 Hole
Number of Ports
3
TC Connection
Mechanical
Temperature Rating
90 degrees C
Type
PBTF:FLEX/INS BLK
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Nimbus4Flex

General Product Info

12-Digit UPC
783669724486
Color
Black
Environmental Conditions
Cold temperature rated to -45C
Finish
Tin Plated
GTiN
00783669724486
Product UPC
78366972448
Weight
2.57 lb

Dimensions

Height
3.362 Inch
Length
8.02 Inch
Width
3.405 in
