ABB 60804-TB WASHER, SPRING 5/8

Manufacturer: ABB | Thomas & Betts | Catalog # 60804-TB | Cooper Electric Part # 1298108
$13,673.26/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
Belleville Spring Washer, 5/8 Inch Bolt Size, Steel with Zinc Chromate Finish

Technical Information

Applications
For tight, secure bus-bar connections.
Material
Steel
Type
Compression

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
786210608044
Finish
Zinc
GTiN
00786210608044
Product UPC
78621060804

Dimensions

Inside Diameter
15.87 mm
Outside Diameter
38.1 mm
Thickness
2.8 mm
Application
  • For tight, secure bus-bar connections.
Notes

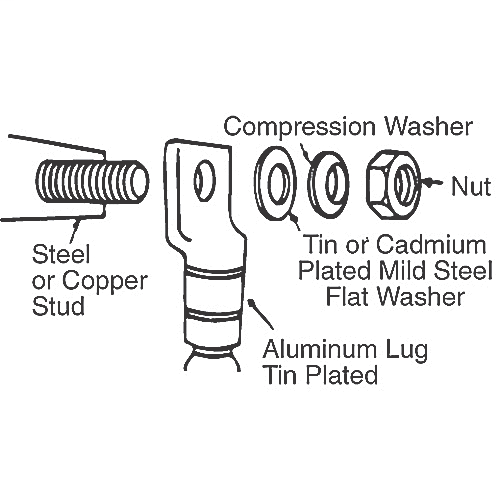

  • When bolting aluminum lugs and connectors to buss bars with steel or brass hardware, the recommended practice to ensure a tight connection is to use a Belleville spring washer on top of a flat washer under the bolt head or nut. For heavy-duty service where the heat rise is expected to exceed 30 degrees Celcius above ambient, this procedure maintains constant pressure as the connector metals expand and contract with temperature changes.
