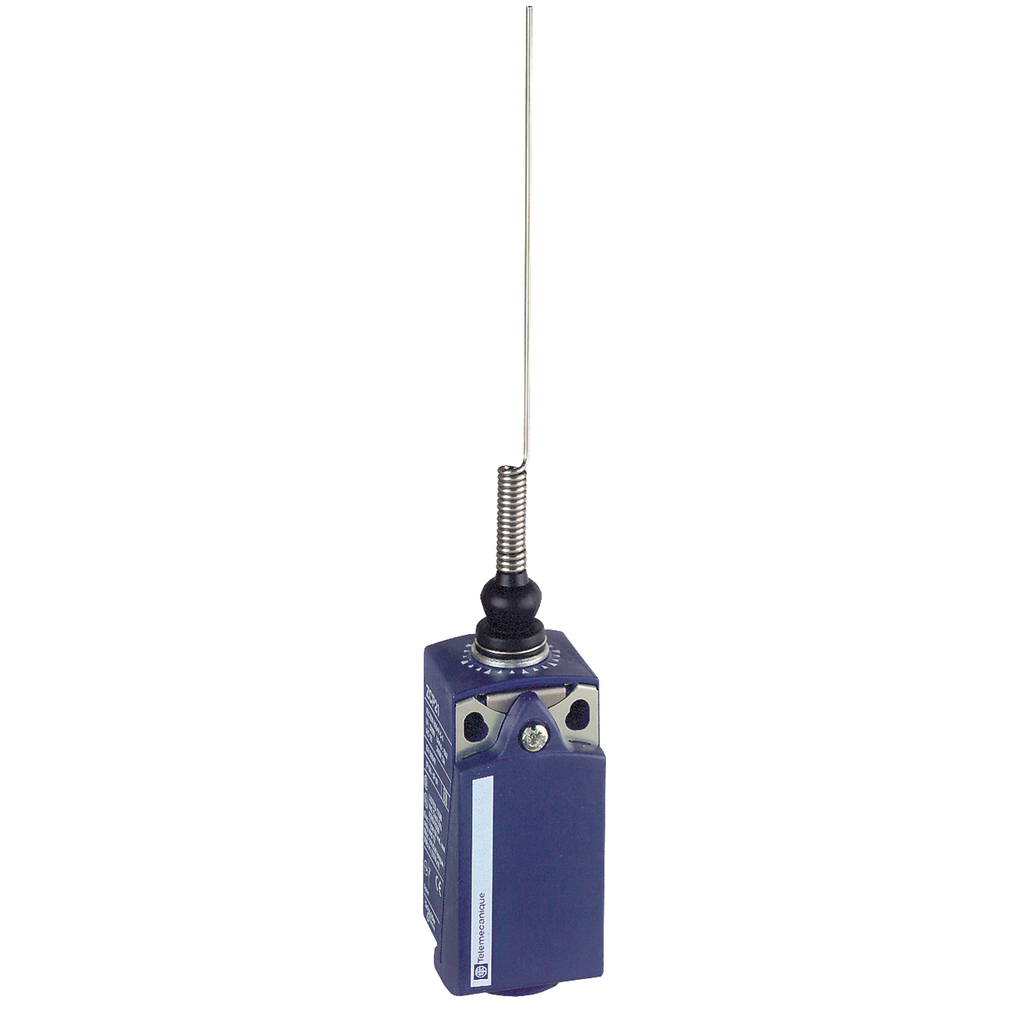

Product image for TES XCKP2106G11 Limit switch, Limit switches XC Standard, XCKP, cat's whisker, 1NC+1 NO, snap, Pg11
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

TES XCKP2106G11 Limit switch, Limit switches XC Standard, XCKP, cat's whisker, 1NC+1 NO, snap, Pg11

Manufacturer: TES Electric | Catalog # XCKP2106G11 | Cooper Electric Part # 1297636
$59.50/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This XCKP compact format (CENELEC EN 50047) limit switch has a "cat's whiskers" and a plastic body. This limit switch has a double insulated thermoplastic body, a modular design allowing easier maintenance and a compact CENELEC EN50047 format. It is IP66 and IK04 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.

Technical Information

Action
Snap action;By any moving part
Actuator
SPRING RETURN CAT''S WHISKER
Amperage
10 Amp
Applications
COMPACT VARIABLE
Body Material
Plastic
Body Type
Fixed
Cable Entry
1 entry tapped for Pg 11 cable gland
Contact Configuration
1 NC + 1 NO
Enclosure
NEMA 1/2/4/6/12/13 IP66/67
Head Type
Multi-directional head
Material
Plastic
Net Weight
0.085 kg
Number of Poles
2 Pole
Operating Cycles
5000000 CYCLES, DC-13, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Operating Temperature
-25-70 Adegrees C
Size
1.18 in
Standard
CSA C22.2 No 14,EN 60204-1,EN 60947-5-1,IEC 60204-1,IEC 60947-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW-CLAMP TERMINALS 1 X 0.34...2 X 1.5 MMA
Type
Limit switch
Voltage
240//250 VAC//VDC

Manufacturer Information

Brand
Telemecanique
Sub Brand
XCKP

General Product Info

12-Digit UPC
389110316769
GTiN
03389110316766
Product UPC
78590187177
Weight
0.19 lb

Dimensions

Depth
30 mm
Height
65-65 mm
Warranty Length
18 mth
Width
31 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CSA,UL
Country of Origin
France
