Hoffman P2G3R10 ProLine G2 Grid Strap, 3-Row, 1000mm, Steel

Manufacturer: Hoffman | Catalog # P2G3R10 | Cooper Electric Part # 1295465
$207.10/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

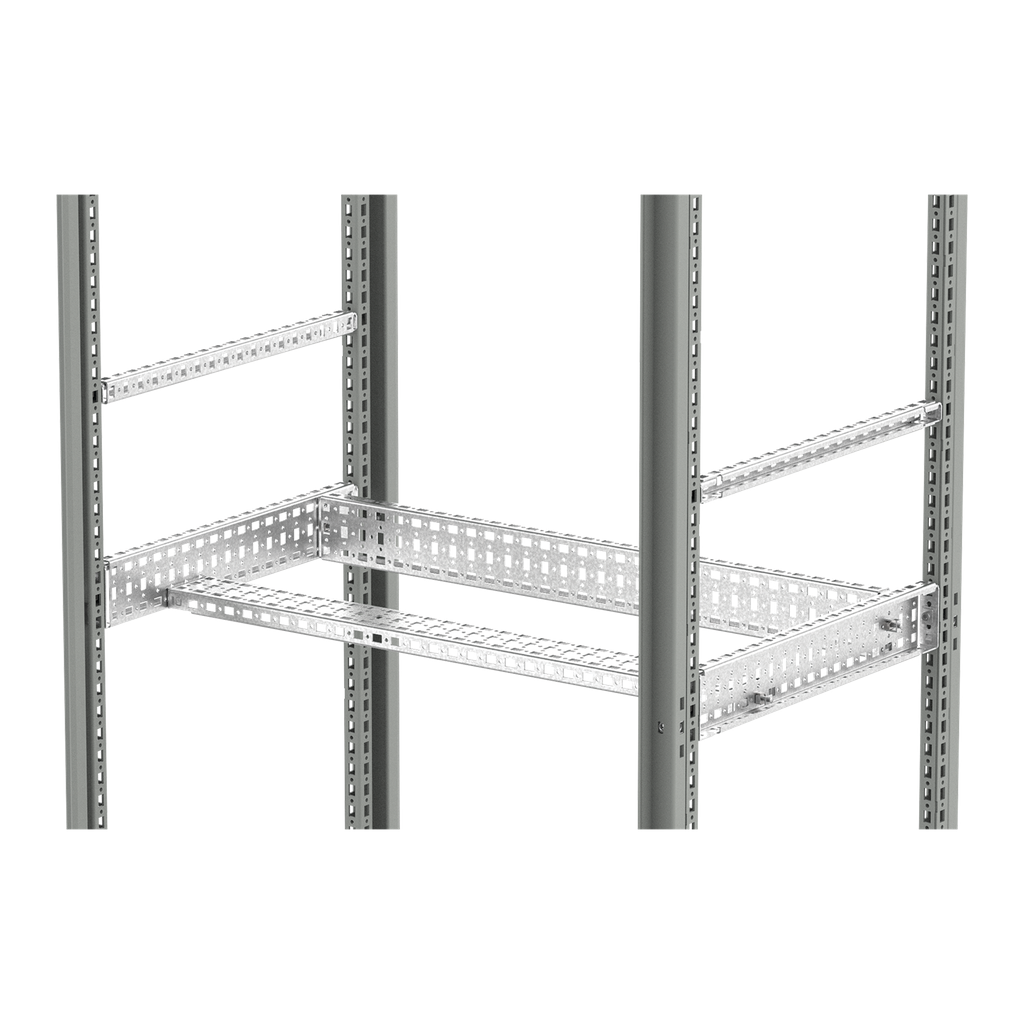

ProLine G2 Grid Straps can be used to create a mounting or support network within the frame. The Grid Straps are furnished in pairs and available in three designs: full-height vertical, horizontal with mounting brackets, and single-piece horizontal with integrated tabs. Horizontal Grid Straps can be mounted front-to-back between frame verticals (depth-mounted), side-to-side between frame verticals or depth-mounted Grid Straps (width-mounted), or even vertically between Grid Straps. Vertical Grid Straps are used to span the full height of an enclosure.

Technical Information

Applications
Controls and Drives; Power Distribution
Material
Steel
Type
3-Row, Horizontal

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProLine G2

General Product Info

12-Digit UPC
783510318710
Finish
Galvanized
GTiN
00783510318710
Product UPC
78351031871
Used With
1000 mm Frame Depth
Weight
7 lb

Dimensions

Height
6 Inch
Length
42 Inch
Thickness
1.9 mm
Width
6.00 in
Features
  • Quick installation of grid strap(s) using the patented front-load BV-M6 fastener (Blind, Variable M6 screw based fastener), which is an innovative alternative to cage nuts or self-tapping screws
  • Mounting hole pattern is 25-mm on center, alternating round and rectangular holes to accommodate various hardware: rectangular holes accept BV-M6 fasteners or front-loading cage nuts
  • Horizontal grid straps are offered in both 1-row and 3-row configurations, as well as bracket or tabbed (single-piece) mounting options
  • Width-mounting Grid Straps requires an increase in length of 100mm over the nominal frame width (i.e. 600mm wide enclosure requires 700mm grid strap)
  • Horizontal, Bracket-Mount Grid Straps: Mounting brackets are installed using a single BV-M6 (or front-loading cage nut) per bracket. Grid Strap hooks onto the mounted brackets, and snaps into place for easy installation; this design Grid Strap can be mounted vertically between other Grid Straps, as the assembly is on a single plane
  • Horizontal, Tab-Mount, Single-Piece Grid Straps: Grid Strap is constructed from a single piece, with a jogged tab that allows the Grid Strap to sit flush with the frame; this design Grid Strap should not be used when mounting vertically between other Grid Straps, as the jogged tab introduces a second plane which may interfere with cover installation on the sides
  • Furnished in pairs, and constructed from 14 gauge (1.75mm) conductive steel
