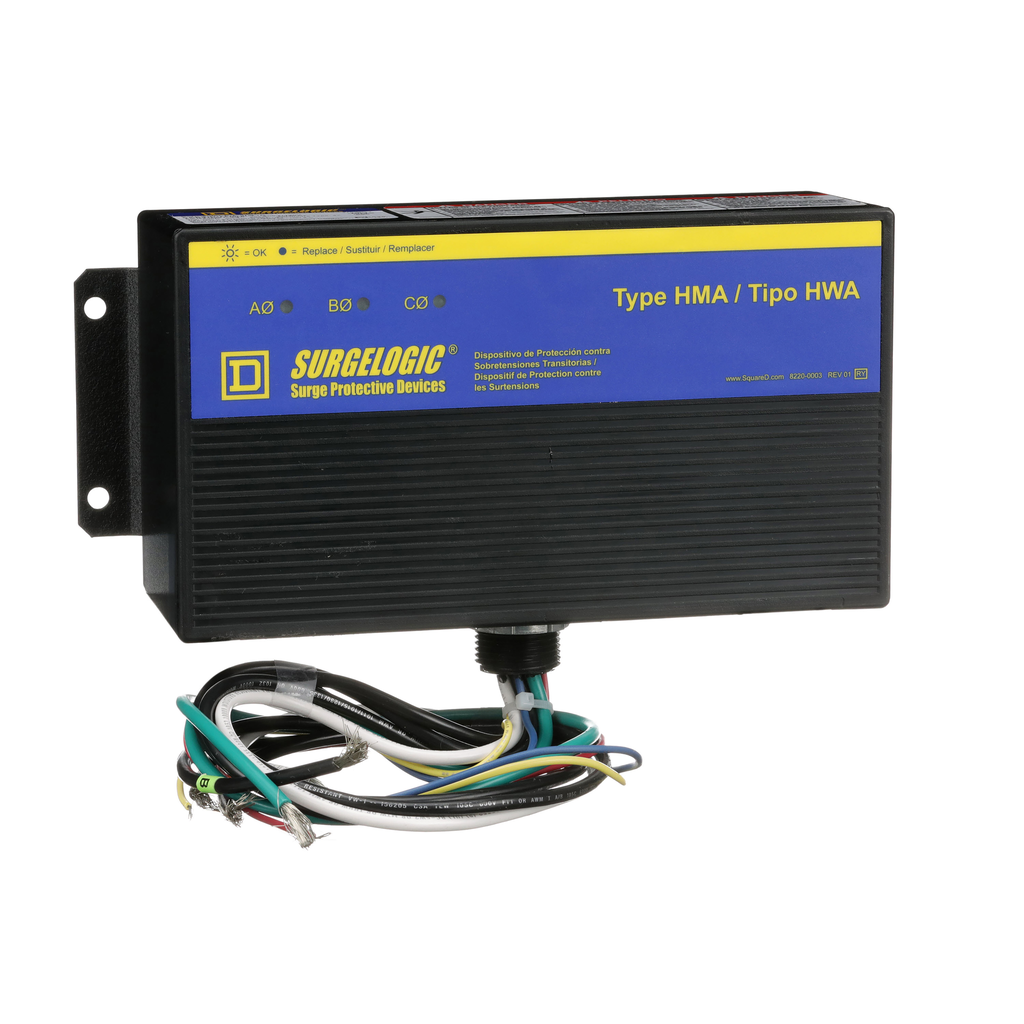

Square D TVS2HWA80X 208 Star/120 VAC 80 kA 3-Phase 4-Wire NEMA 4X Non-Modular Surge Protective Device

Manufacturer: Square-D / Schneider | Catalog # TVS2HWA80X | Cooper Electric Part # 129488
$2,810.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
The HWA Series are surge suppressors and noise filters in a compact package. HWA surge protective devices are nipple mounted, parallel connected suppressors with different voltage configurations, including delta. TVS2HWA80X is three phase, four wire, 280Y/120VAC with an 80kA surge current. The surge suppressors use three pole spaces in a QO or Homeline load center, or NQ panelboard. The devices are NEMA 4X rated, allowing either indoor or outdoor installation. The devices comply with UL and CSA standards.

Technical Information

Applications
SUITABLE FOR USE IN SERVICE ENTRANCE LOCATIONS
Enclosure
4X
NEMA Size
4X
Nominal Discharge Current
20 kA
Number of Phases
3 Phase
Operating Temperature
65-65 degrees C
Size
33.6 in
Standard
CSA C22.2 No 8,NEC 285,UL 1283,UL 1449:ed. 4: Type II,UL 96A:ed. 12
Type
Surge protection device;4-wire
Voltage
120 Volt

Manufacturer Information

Brand
Square D
Sub Brand
HWA

General Product Info

12-Digit UPC
785901293668
GTiN
00785901293668
Product UPC
78590129366

Dimensions

Cable Length
33.6 in
Depth
3.1 Inch
Height
9.4 Inch
Warranty Length
10 yr
Width
4.8 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
USA
  • Audible alarm indicates loss of suppression (does not contain alarm enable/disable switch)
  • LEDs indicate operational status
  • Suitable for indoor and outdoor applications (NEMA Type 4X rated)
  • Dry contacts
  • Compact design provides easy mounting inside or outside the equipment cabinets
  • HWA Surge Protective Devices HWA Series Surgelogic™ HWA surge protective devices are compact, nipple- Mounted parallelconnected surge suppressors that come in a variety of voltage configurations, including Delta. A surge suppression path is provided for each mode, and the product is rated NEMA Type 4X. Internal diagnostics continuously monitor the device status. US and Canadian UL® Listed as a Type 2 SPD to UL 1449 and UL 1283 standards. Complies with requirements of NEC® Article 285 and CSA C22.2 No. 8- M1986 as appropriate. Complies with UL 96A 12th Edition Master Label requirements for Lightning Protection Systems.
  • -54 dB EMI/RFI filtering
  • Short circuit current rating 200 kA
  • Convenient side-nipple mounting
  • Optional flush- Mount kit TVSHWAFMK
  • Sine wave tracking
