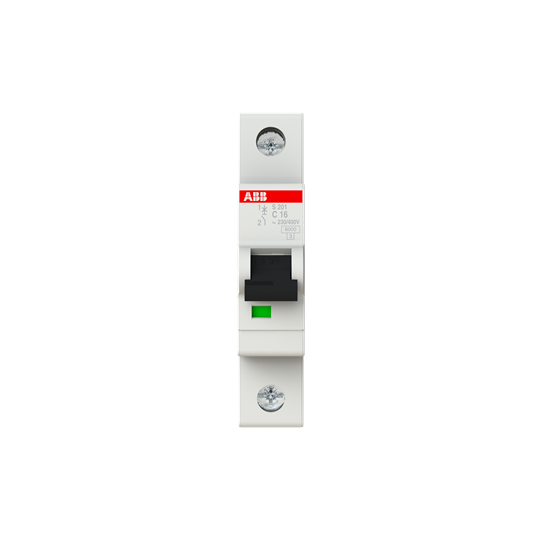

Product image for Thomas & Betts S201-C16 1-Pole 16 Amp 480y/277 VAC Supplementary Protectors
Image thumbnail 0

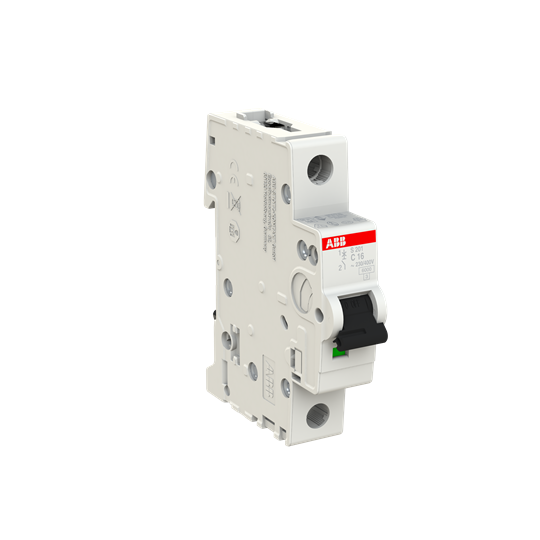

Image thumbnail 1

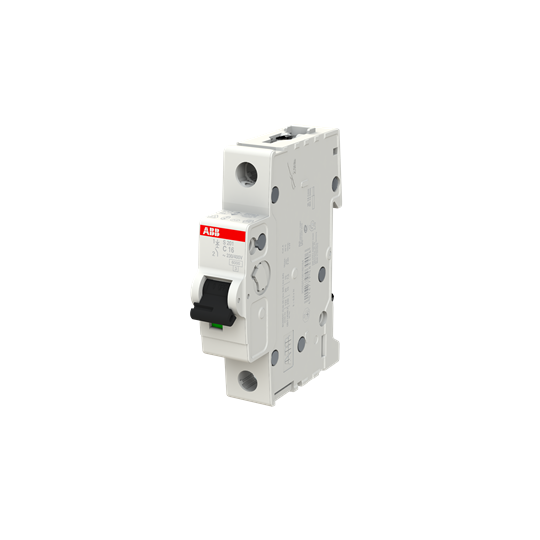

Image thumbnail 2
Image thumbnail 3
Email

Thomas & Betts S201-C16 1-Pole 16 Amp 480y/277 VAC Supplementary Protectors

Manufacturer: ABB Low Voltage | Catalog # S201-C1.6 | Cooper Electric Part # 1292185
$104.30/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet CAD Drawing #1 Product Brochure
Miniature Circuit Breaker, Supplementary Protector, Rated Current 16 Amps, 1 Pole, Interrupt Rating 6 kA, Thermal Magnetic Trip Curve C, Voltage up to 277/Y480 VAC, 60/110 VDC, DIN Rail Mounted, Finger Safe and Multi-Function Terminals, UL 1077, CSA 22.2 No. 235

Technical Information

Actuator
Insulation Group II, Black, Sealable
Amperage
1.6 Amp
Applications
For Residential, Commercial and Industrial use
Conductor Size
18-4 AWG
Current
16 Amp
Frequency
50/60 Hz
Interrupt Rating
10, 20 kAIC
Mounting Type
DIN Rail
Number of Poles
1 Pole
Operating Temperature
-25 To 55 degrees C
Standard
EN 60898-1IEC,EN 60947-2UL 1077,IEC
Temperature Rating
-25 to 55 degrees C Ambient
Terminal Type
Screw Terminals
Trip Type
Thermal Magnetic
Type
High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
Voltage
277/480 Volt

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
662019168746
Box Quantity
10
Environmental Conditions
28 Cycles with 90 - 96% at 55 C and 95 - 100% at 25 C
GTiN
00662019173009
Housing Material
Insulation Group II, RAL 7035
Product UPC
66201917300

Dimensions

Height
88 mm
Length
69 mm
Width
17.5 mm

Certifications & Compliance

Green Distribution CO2
0.015 kg
Green End-of-Life CO2
0.14 kg
Green Manufacturing CO2
1.222 kg
Green Total CO2
15.264 kg
Green Transport-to-DC CO2
0.102 kg
Green Use-Phase CO2
13.785 kg
