INT-MAT ST700W Ascend® Standard 7-D

Manufacturer: Intermatic, Inc | Catalog # ST700W | Cooper Electric Part # 1288366
$161.07/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
2 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet

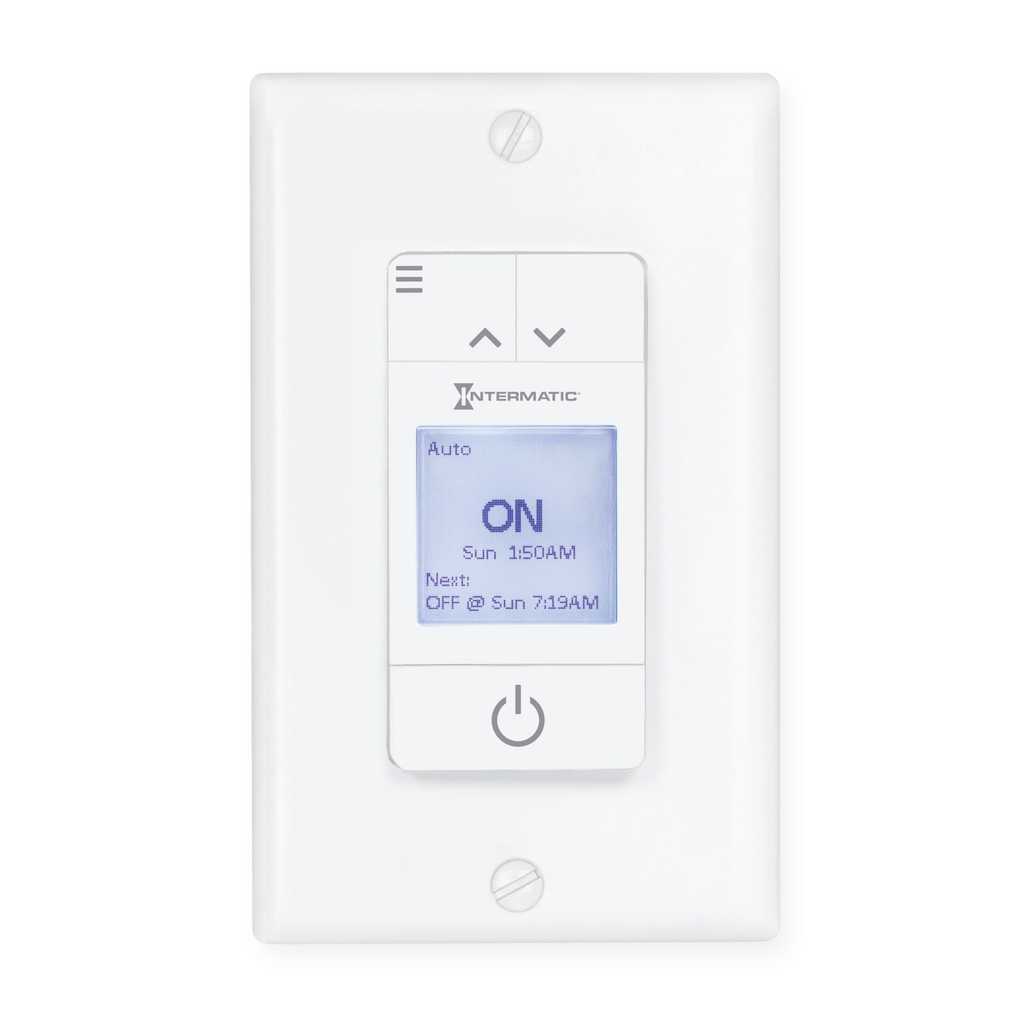

The Ascend Standard In-Wall Timer is a 7-Day Programmable Timer featuring a sleek, modern design. The timer can be configured in minutes using a large backlit LCD display and includes pre-programmed templates for easy use. The Ascend Standard features Astronomic dusk-to-dawn settings and automatic Daylight Saving Time adjustments. Neutral required.

Technical Information

Amperage
15 Amp
Applications
Garage, Driveway, Common Area, Hallway, Patio, Front Door, Outdoor Path, Coach Lights
Max Operating Temperature
122 degrees F
Min Operating Temperature
-20 degrees C
Number of Poles
1 Pole
Operating Cycles
24 hours, 7-day
Operating Temperature
-4 F to 122 F
Size
4 1/8 x 1 3/4 x 1 1/3 H x W x D
Temperature Rating
- 4 to 122 degrees F
Type
Heavy Duty, Astronomic, Sleek
Voltage
120 VAC at 50/60 Hz

Manufacturer Information

Brand
Intermatic
Sub Brand
Ascend

General Product Info

12-Digit UPC
078275149083
Color
White
GTiN
00078275149083
Product UPC
07827514908

Dimensions

Depth
1.334 Inch
Height
2-3/4 Inch
Warranty Length
3 yr
Width
1.75 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
Thailand
Features
  • Quick, intuitive installation
  • Single-pole or 3-way switches
  • Sleek, Modern Design
  • 7-Day Timer with Automatic Daylight Saving and Astronomic ON/OFF at Dusk or Dawn
  • Intuitive Setup
  • Three pre-programmed schedule templates for convenience
  • Fully customized scheduling for flexibility
  • Program up to 42 unique events
  • Large, easy-to-read backlit LCD screen
  • Non-replaceable battery backup keeps time and date information in the event of a power loss
