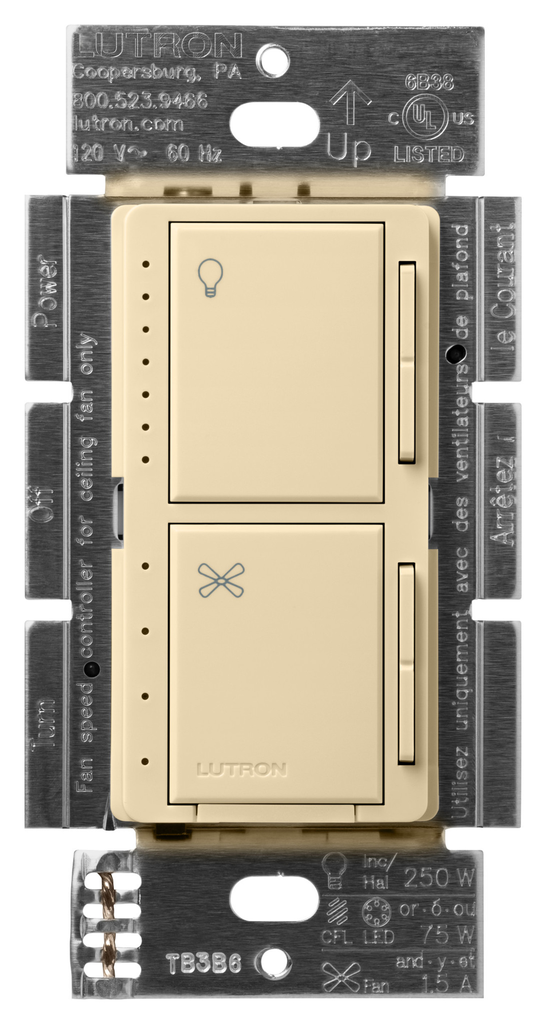

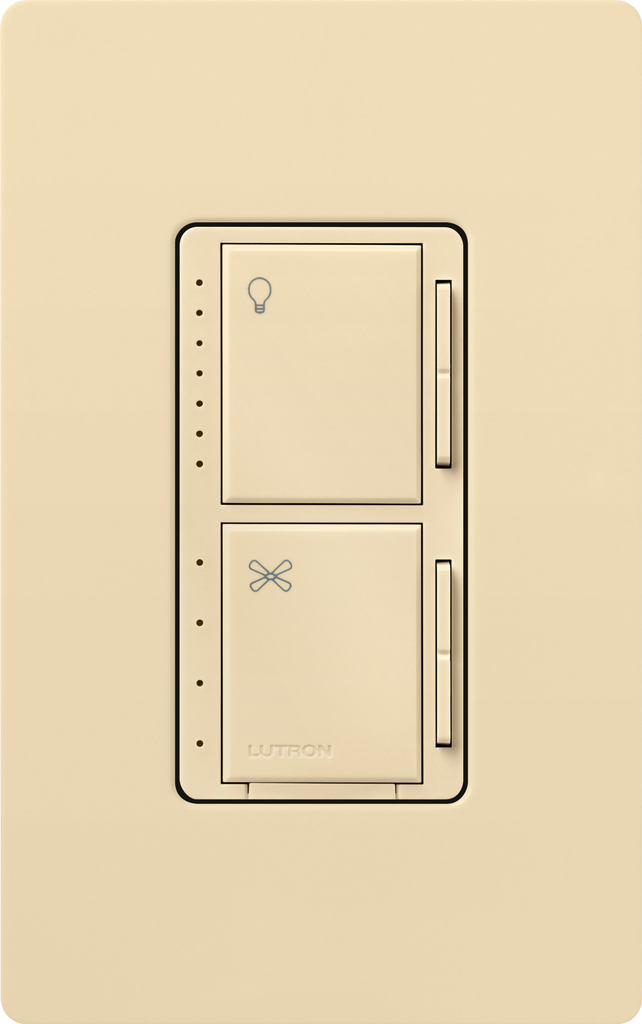

LUT MACL-LFQH-IV MACL FAN LIGHT IVO

Manufacturer: Lutron | Catalog # MACL-LFQH-IV | Cooper Electric Part # 1288272
$95.39/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
3 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet
The Lutron Maestro Dual LED+ Dimmer and 4-Speed Fan Control helps you achieve the ideal comfort level for your home. It includes the most advanced technology for superior dimming and adjust the fan speed all from one wall control. The top section is a LED+ Dimmer that works with up to 75W of dimmable LEDs or up to 250W of Incandescent/Halogen bulbs. The bottom section is a 4-speed fan control for a single ceiling paddle fan up to 1.5A. Press the tap switch once to toggle the light or fan ON to a programmed preset, press again to toggle OFF; Double press the tap switch to turn light or fan ON to full intensity/speed. Use the raise/lower button next to the tap switch to dim/brighten lights or increase/decrease fan speed. This Fan/Light control is only available in single pole. Screw terminal and wire lead installation. No neutral or canopy module required. LED+ dimmer portion has easy low-end trim programming. Available in 10+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Technical Information

Actuator
Tapswitch
Amperage
1.5 Amp
Applications
Fan,Lighting
Connection Type
Screw-Type Terminals
Contact Configuration
N-O
Contact Rating
1.5 A
Enclosure
Plastic
Enclosure Material
Plastic
Mounting Type
Wallbox
Number of Poles
1 Pole
Size
2.94 in
TC Connection
Screw terminal
Type
Digital Preset Fan/light Control
Voltage
120 Volt
Wattage
250 Watt

Manufacturer Information

Brand
Maestro
Sub Brand
Maestro

General Product Info

12-Digit UPC
784276239240
Color
Ivory
Finish
Gloss
GTiN
00784276239240
Product UPC
78427623924

Certifications and Compliance

Country of Origin
China
Standards and Certifications
  • UL
  • CSA
Features
  • Includes (1) Lutron Maestro Dual Combination LED+ Dimmer and 4-Speed Fan Control; Gloss Finish, Clamshell Packaging
  • Rated for 1.5A Ceiling Paddle Fan and up to 75W of dimmable LEDs or 250W of Incandescent/Halogen bulbs
  • For use with 1 ceiling paddle fan per control; not compatible with fans with proprietary remotes
  • No Neutral Required; 120V
  • Single Pole; Screw Terminal and Wire lead installation
  • Separate wires for light and fan required; No canopy module required
  • 4 quiet fan speeds: Low, Medium, Medium/High, High
  • Simple button programming for low-end trim adjustment on LED+ dimmer
  • Tap once to toggle light or fan ON/OFF, Double-tap to turn lights on to full intensity, or press & hold for delayed fade-to-off on the lights
  • Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
  • Dimmer (top) Tap on dimmer to preset light level; tap off
  • Tap twice for full on
  • Touch rocker to adjust light level
  • Fan control (bottom) Tap on to preset fan speed; tap off
  • Touch rocker to adjust speed
  • 4-quiet fan speeds plus off provide enhanced comfort
  • Designed to prevent motor hum
  • For use with only one fan/light.
