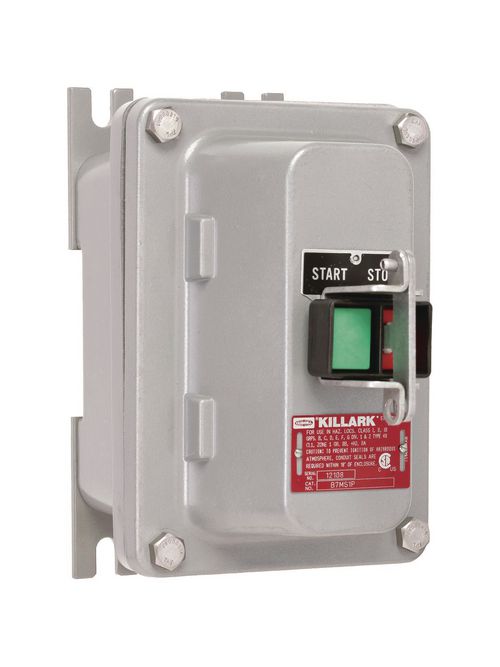

Product image for KLRK B7MS1PS-3 B7MS SZ1 ENCLO PB IE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

KLRK B7MS1PS-3 B7MS SZ1 ENCLO PB IE

Manufacturer: Killark | Catalog # B7MS1PS-3 | Cooper Electric Part # 1285957
$1,793.93 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Killark's B7MS Series of Hazardous Location Manual Motor Starters provide non-reversing manual starting and stopping of motor loads. Rated for indoor and outdoor applications, the copper-free aluminum construction is ideal for harsh and hazardous environments. Available with either "Push-Button" or "Rotary" style operators, the internal IEC-style starter is available in manufacturer configurations including Square D and ABB. Note: Overload Heaters are required, but not included as standard, and need to be specified based on FLA (Full Load Amps) of motor.

Technical Information

Applications
The PRISM B7MS Series of non-reversing, manual line voltage starters and enclosures are suitable for use in applications requiring manual across-the-line starting and stopping of small single and polyphase AC motors, and where overload protection is needed. Manual starters are generally used on small machine tools, fans and blowers, pumps, compressors, and conveyors, as well as many other types of electrical equipment. PRISM enclosures universal design accomodates, as standard, IEC starter manufacturers including Square D, Cutler-Hammer, ABB, Siemens, Moeller, Sprecher + Schuh, Allen-Bradley, Advance Controls, and WEG.
Coil Voltage
600 VAC maximum
Enclosure Type
Aluminum junction box
Horsepower
1.5 hp
Material
Aluminum
NEMA Size
3,4,4X
Number of Phases
3 Phase
Number of Poles
3 Pole
Power Rating
1.5 HP maximum
Reset Type
Push button
Size
8-1/6" H x 5-3/4" W x 6-5/16" D
Type
Aluminum compact push button style enclosure with starter
Voltage
600 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Killark

General Product Info

12-Digit UPC
783936077369
GTiN
00783936077369
Product UPC
78393607736

Dimensions

Height
8.167 Inch
Inside Diameter
0.482 in
Length
6.313 Inch
Width
5.750 in

Certifications and Compliance

Country of Origin
USA
Features
  • Compact size enclosures provide application flexibility with cost savings over industry standard sizes.
  • Type 4, 4X rated for protection from hose directed water and corrosion.
  • Pre-drilled to facilitate easy field installation of starters.
  • Either rotary or push button operator with included lock-out provision.
  • Provisions for drain and breather.
  • Bolt on ductile mounting lugs.
  • Two NPT conduit openings provided as standard
  • Additional custom openings on request.
  • Universal design accommodates, as standard, IEC starter manufacturers including Square D, CutlerHammer, ABB, Siemens, Moeller, Sprecher+ Schuh, Allen-Bradley, Advance Controls, and WEG.
  • Copper-free aluminum (less than 4/10 of 1% copper content).
  • Cover bolts are 316 stainless steel.
  • Silicone O-ring gasket.
  • Gray powder polyester painted exterior, electrostatically applied.
  • Compact size enclosures provide application flexibility with cost savings over industry standard sizes. NEMA 4, 4X rated - providing protection from hose directed water and corrosion. Pre-drilled to facilitate easy field installation of starters. Push but
