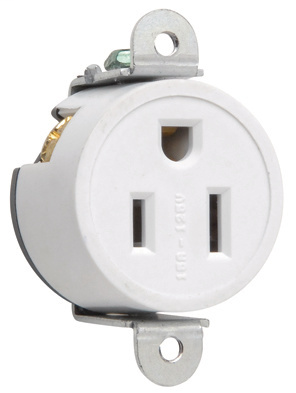

RECP SGL 15A 125V SHORT STRP S WIRE

Manufacturer: Pass & Seymour / Legrand | Catalog # 5258W | Cooper Electric Part # 1285044
$21.07/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Short Strap Spec Grade Single Receptacle, Side Wire, 15A 125V

Technical Information

Amperage
15 Amp
Applications
Commercial
Capacity
Single
Conductor Size
14-10 AWG
Connection Type
Back Wire,Side Wire
Dielectric Strength
2000 V
Grade
Specification
Material
Nylon
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.32 L x 1.00 W x 1.75 H In
TC Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Non-Reversing
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007525847
Color
White
Finish
Matte
GTiN
00785007525847
Product UPC
78500752584
UNSPSC
39121406

Dimensions

Depth
1 Inch
Height
1.49 Inch
Width
1.49 in

Certifications and Compliance

Certifications
CSA,UL
Country of Origin
Mexico
Features
  • Auto-ground clip assures positive ground.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
  • Backed-out tri-drive steel terminal screws.
  • One-piece brass triple-wipe power contacts for lasting retention.
  • For covering patents, see www.legrand.us/patents.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • CSA Listed
  • UL Listed
