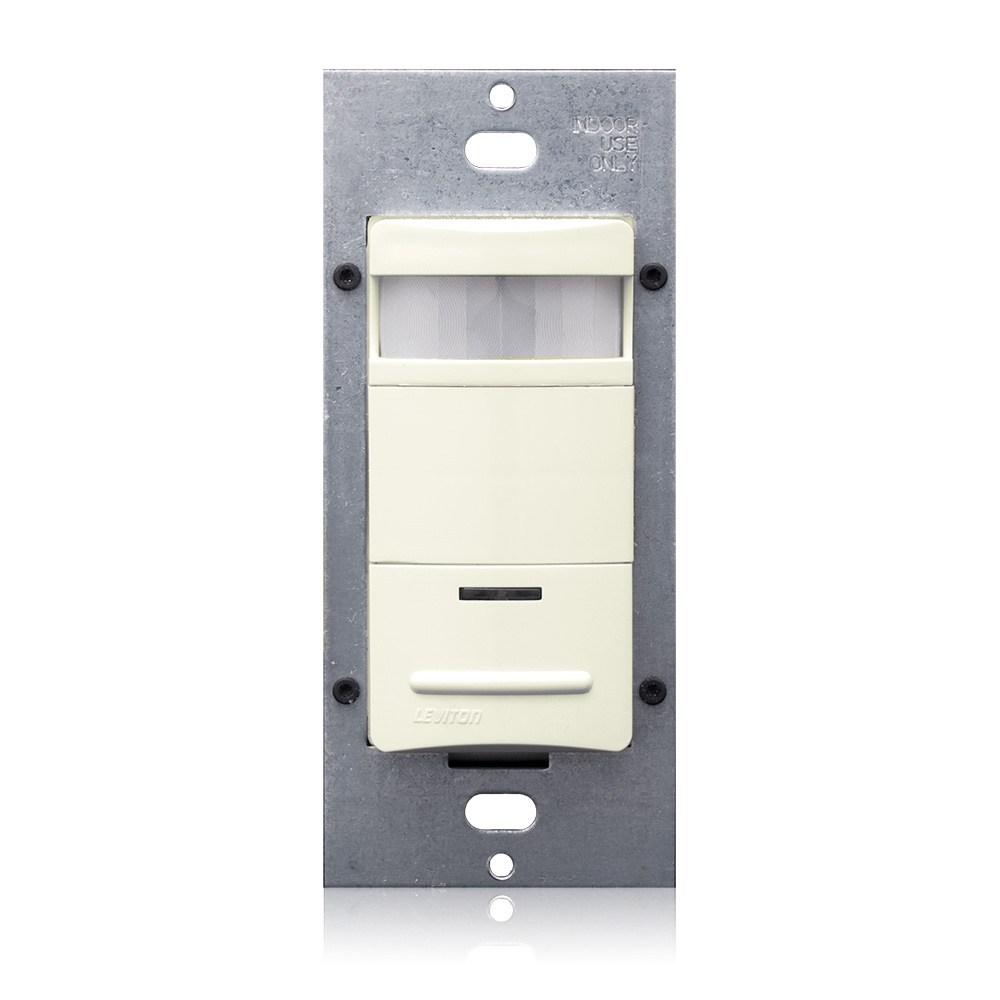

LEV ODS10-TDT LA PIRVAC SENS NO NEU

Manufacturer: Leviton Mfg Co | Catalog # ODS10-TDT | Cooper Electric Part # 1283964
$79.51/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
Discontinued Product. Vacancy Sensor, PIR, (ManualON/AutoOFF) Lighting Control, Vandal resistant, Manual Wall Switch. Robust Single Latching 10A Relay, No-Neutral wire required, 120/208/220/230/240/277VAC, 50/60hz, Field of View 2100 sq ft (Motion: Major 60'x40'; Minor 40'x20'), Dual Pyrometers for true 180 degree view with Blinders (32 degree block on each side), Adjustable time delay between 30s-30m, Light Sensor (Photocell) included for Ambient Light Hold-Off feature. CEC Title 20/24 compliant. USMCA Compliant. Wall plate sold separately. Color: Light Almond

Technical Information

Applications
Commercial
Coverage
2100 sq-ft
Frequency
50/60 Hz
Grade
Commercial
Mounting Type
Wall Switch
Operating Temperature
0 degrees C
Power Consumption
100 m 250m W
Sensor Type
Wall Switch
Size
66.2 mm
Standard
CSA,E2186,UL
Switch Type
Single-Pole,Single-Pole
Type
0-10 V,Multi-location/3-way/single-pole,Occupancy/Vacancy Sensor Dimmer
Voltage
120 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477612279
Color
Almond
Environmental Conditions
0 to 50 50 Deg C Operating
GTiN
00078477612279
Product UPC
07847761227

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • The Leviton Decora® Wall Switch Passive Infrared (PIR) Vacancy Sensor (ODS10-TD) uses PIR detection technology to monitor a room for vacancy through a segmented Fresnel lens. This specialized lens divides the field-of-view into sensor zones. When a person passes into or out of a sensor zone, the sensor detects motion. Once the lights have been manually turned ON, the lights will remain ON as long as there is an occupant moving through the sensor zones.
  • Fits in standard wallbox and replaces single-pole wall switch. Gangable with other units
  • Low-profile design eliminates obtrusive scanning-device look. Elegant Decora wallplates complement any interior for sleek aesthetics; uses Decora wallplates and coordinates with Levitons popular line of Decora wiring devices.
  • 180° field-of-view provides approximately 2,100 square feet of coverage suitable for small offices, conference rooms, classrooms, lounges and a variety of commercial areas
  • Convenient pushbutton provides manual-ON/OFF light switching at any time
  • Two dual element PIR sensors used to widen detection range
  • Segmented Fresnel lens provides optimum sensitivity and performance. Designed with an extensive minor motion area where even slight body movements will be detected
  • Vandal resistant PIR lens
  • Blinders-horizontal field-of-view may be adjusted between 180° and 60° of arc by using integral blinders located on either side of the lens. No masking tape required.
  • Manual-ON/auto-OFF vacancy sensors for installations where manual-ON switching is required but auto-OFF switching is still desired
  • Red LED indicator light flashes when sensor detects motion to verify detection is active
  • Time Delay adjustment for delayed-OFF time settings of 30 seconds (for walking test), 10 minutes, 20 minutes and 30 minutes. Allows customized adjustments to maximize energy savings.
  • Vacancy confirmation-when the time out expires and the lights turn OFF a 30 second vacancy confirmation exists to turn the lights back ON
  • False detection circuitry
  • One unit can be used for 120V through 277V lighting. Compatible with both electronic and magnetic ballasts.
  • Relay switches at the zero crossing point of the AC power curve to ensure maximum contact life and compatibility with electronic ballasts
  • Exclusive Leviton H.I.S. Circuitry-specifically designed to handle todays high inrush electronic ballast loads and offer unmatched durability and service
  • No neutral design is optional for retrofit applications
Color Variations
  • Ivory
  • Light Almond
  • White
Patents
  • US6031750
