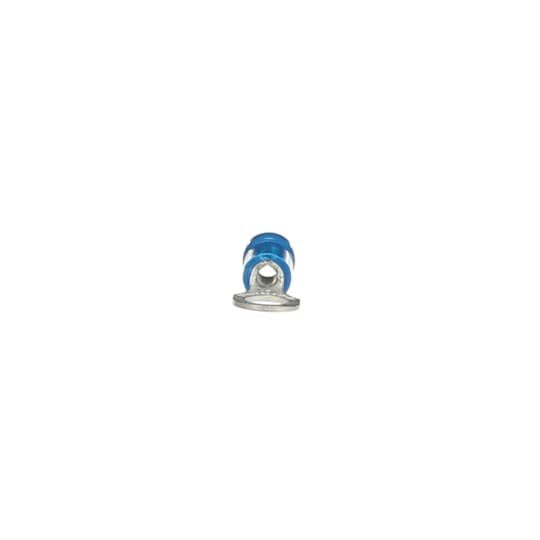

Product image for Thomas & Betts 14RB-10CP 18-14 AWG #10 Blue Insulated Vinyl Ring Terminal
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

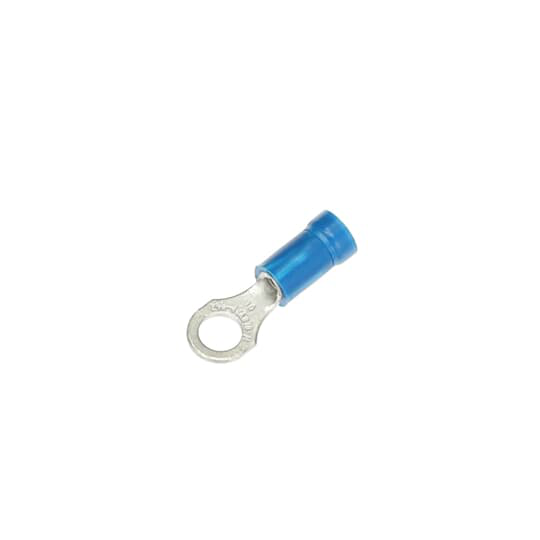

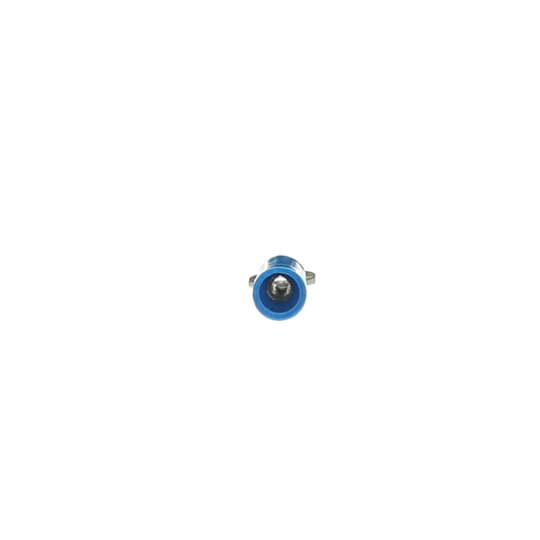

Thomas & Betts 14RB-10CP 18-14 AWG #10 Blue Insulated Vinyl Ring Terminal

Manufacturer: ABB | Thomas & Betts | Catalog # 14RB-10CP | Cooper Electric Part # 1283825
$237.48/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
Vinyl-Insulated Ring Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .170, Bolt Hole #10, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated, Mini-Pack

Technical Information

Barrel Type
Brazed Seam
Conductor Size
18-14 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Standard
CSA,E2186,UL
Stud Size
#10
Temperature Rating
105 degrees C
Terminal Type
RB
Type
Insulated
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210898995
Color
Blue
Environmental Conditions
UL 94-V0 Flammability Rating
Finish
Tin Plated
GTiN
05414363077008
Product UPC
78621089899

Dimensions

Height
4.2 Inch
Length
0.97 Inch
Thickness
.03 in
Width
7 in
Certifications
  • CSA
  • UL
Features
  • These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point. Brazed seam barrel is serrated to obtain high pull-out value.
