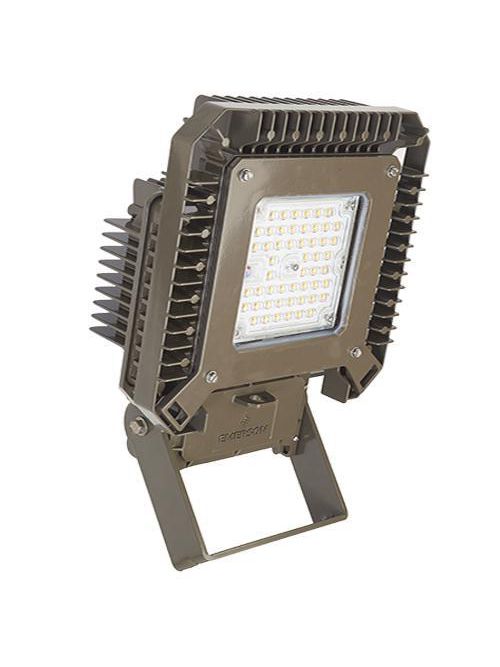

Product image for Appleton AMLGL8CG6BU AMLG 19KL CW CG 7X7
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2

Email

Appleton AMLGL8CG6BU AMLG 19KL CW CG 7X7

Manufacturer: Appleton Electric | Catalog # AMLGL8CG6BU | Cooper Electric Part # 1279526

$3,735.43/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
The Appleton Areamaster Generation 2 LED luminaires by Emerson deliver best-in-class LED performance. The redesigned Areamaster provides greater versatility, with models from 9,000 to 19,500 lumens and from 24,000 to 38,000 lumens for the High Lumen version, and a choice of beam patterns to meet your diverse floodlighting needs. Featuring new optic designs for superior uniformity and coverage, the Areamaster Generation 2 LED luminaires provide HID equivalent lighting that saves over 75 percent in energy costs and practically eliminates maintenance burdens. They are certified for NEC/CEC Class I, Division 2 and Class II hazardous locations, marine and wet locations, as well as ATEX/IECEx Zones 2, 21 and 22.

Technical Information

Ambient Temperature
-40 degrees C
Applications
For Use in Hazardous Locations
Color Temperature
5000 K
Correlated Color Temp
5000 K
Enclosure Type
NEMA 7
Fixture Wattage
150 W
Lamp Type
LED
Lumens
19,000 Lumen
Material
Aluminum,Copperfree Aluminum,Silicone Rubber,Stainless Steel,Zinc Plated HR Steel
Mounting Type
Yoke
Size
12.94x16.28x5.05 IN
Type
Enclosed and Gasketed, Rectangular
Voltage
120-277 VAC, 170-300 VDC
Wattage
150 Watt

Manufacturer Information

Brand
Appleton
Sub Brand
Areamaster™ II

General Product Info

12-Digit UPC
781381602600
Color
Bronze
Finish
Bronze Polyester
GTiN
00781381602600
Housing Finish
Bronze
Product UPC
78138160260
Shape
Rectangle
Features
  • Typical applications include Oil and Gas Refineries, Petrochemical Plants, Foundries, Drilling Rigs, Pulp and Paper Mills, Food and Beverage Processing Facilities, Loading Docks, Power Plants, Water and Wastewater Treatment Facilities and other areas where corrosive, wet, dirty and toughenvironments are a problem
  • Six lumen outputs, ranging from 9,000 to 38,000 lumens, with a choice of optics for optimal light distribution
  • Separate field wiring compartment with screw terminal block for easy and secure connection (can accept 0.14-6 mm², UL/CSA 26-10AWG)
  • Choice of color temperature (CCT); 5000K cool white, 4000K neutral white or 3000K warm white
  • Rugged and compact housing with superior thermal design translates to long luminaire life
  • Heavy duty, high temperature silicone rubber gaskets
  • Thermal shock and impact resistant clear or frosted glass one piece lens with captive fasteners. Guard and visor available, purchase separately
  • Standard 6KV surge protection. Optional 10KV surge protection available
  • Yoke bracket is designed to accommodate traditional Areamaster brackets and slipfitters for easy retrofit. Slip-fitters and mounting brackets available for easy pole or wall mounting
  • Two 3/4\" NPT entries provided. Order \"M\" suffix for M20 Metric entry adaptor.
  • Field replaceable LED driver and lens cover available
