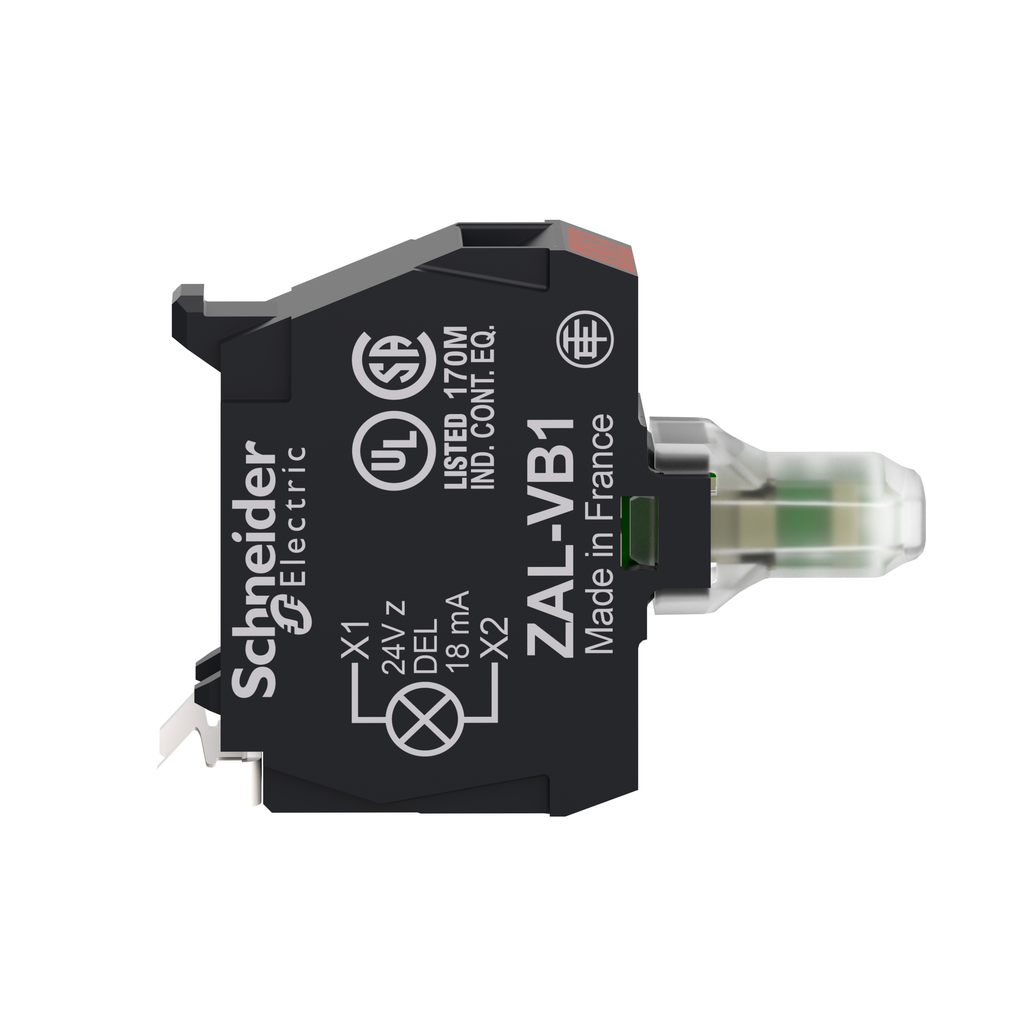

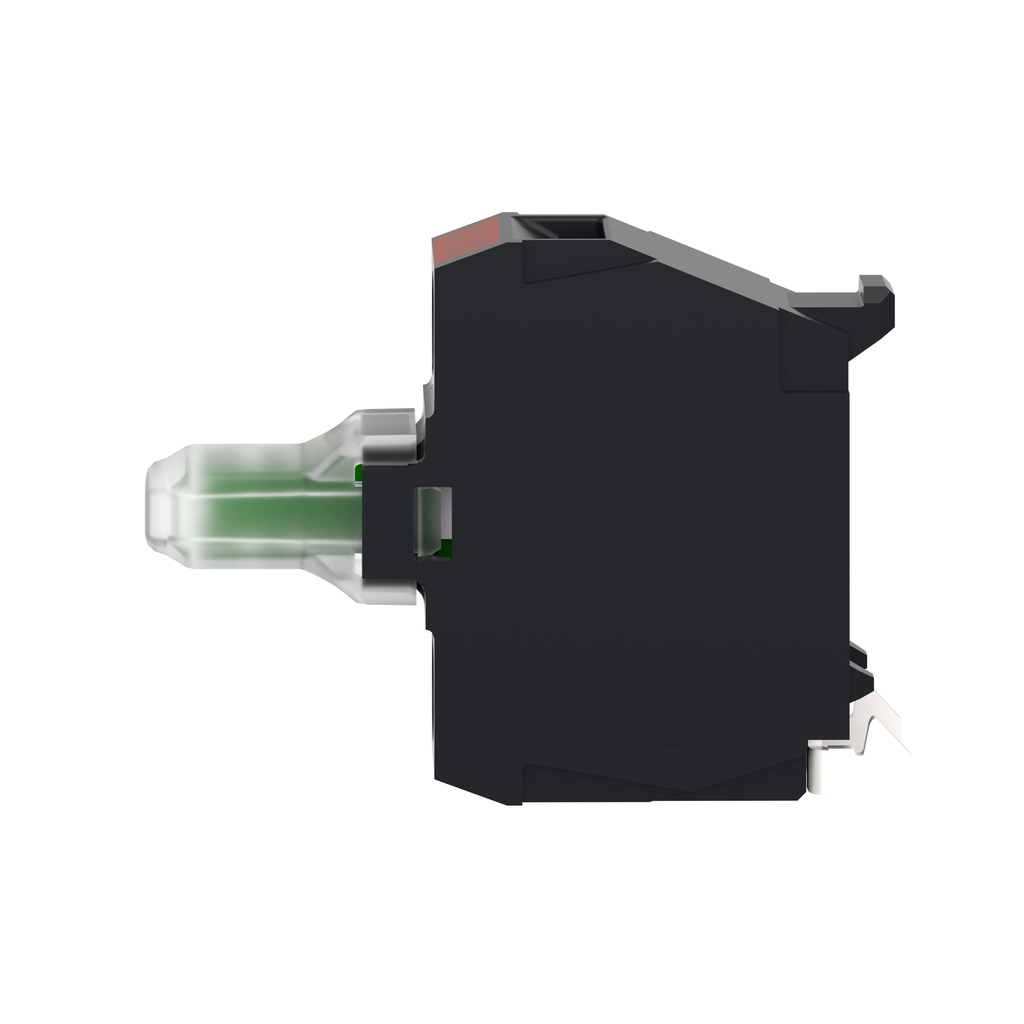

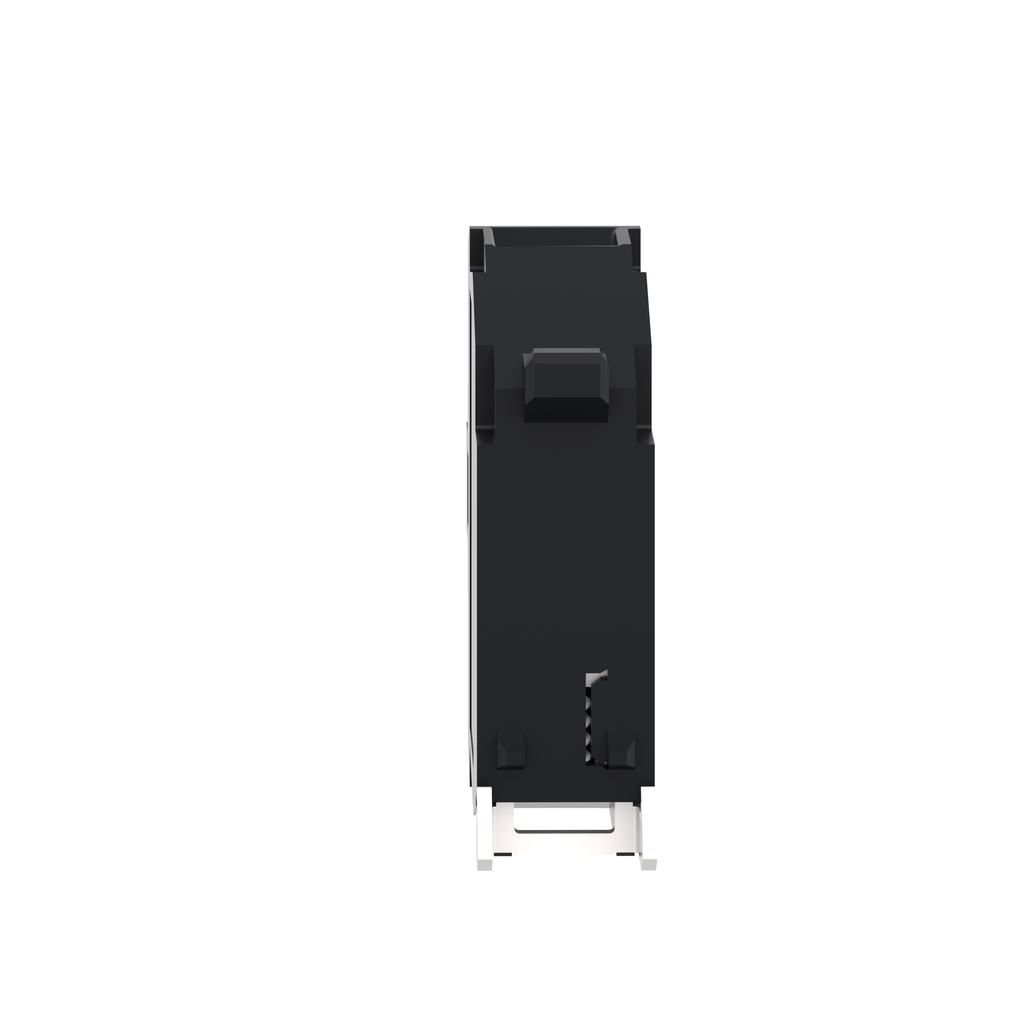

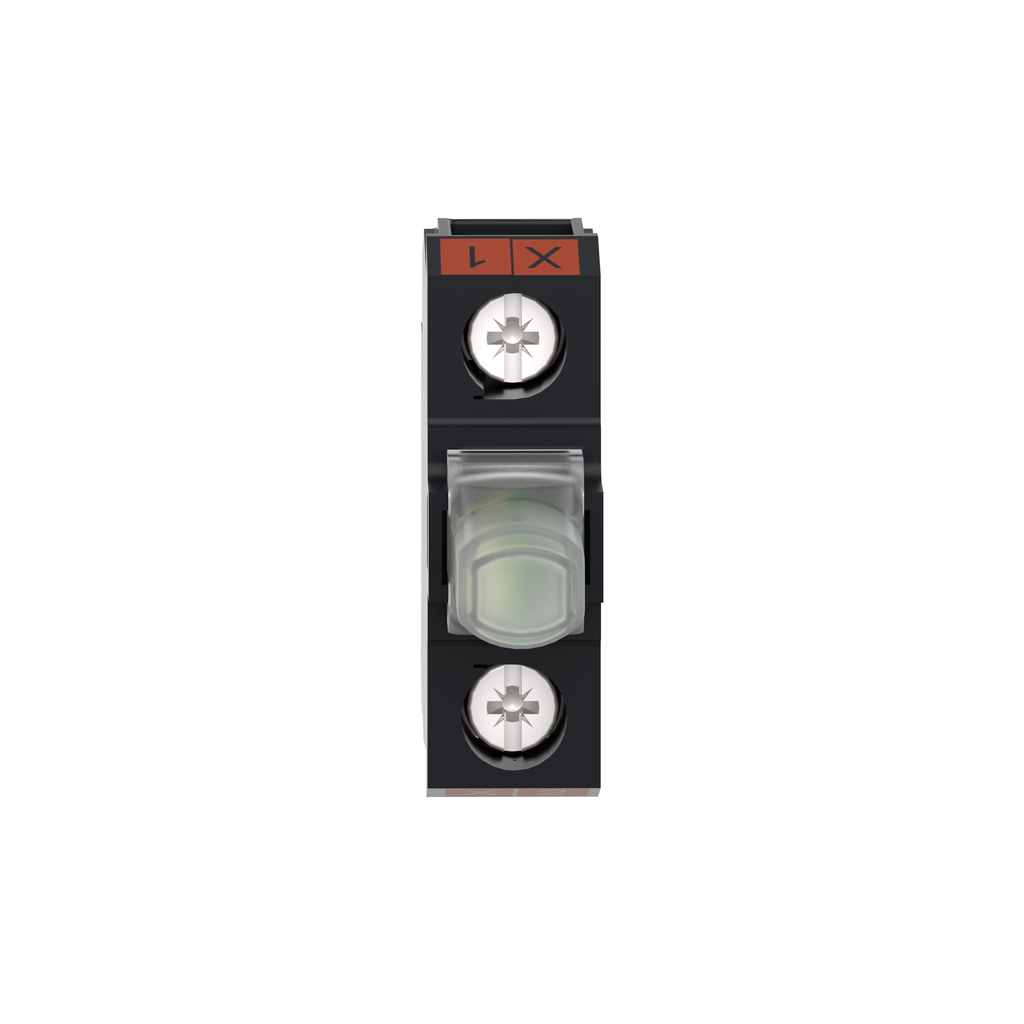

Square D ZALVB6 22 mm 24 VAC/VDC Blue Protected LED Light Block

Manufacturer: Square-D / Schneider | Catalog # ZALVB6 | Cooper Electric Part # 1276834
$52.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1
This blue light block with integral LED allows fast and easy replacement and configuration of your signaling units. It is supplied with 24V AC/DC and it connects with simple screw-clamp connections. It is easily installed on compatible illuminated push button or selector switch units via clip together assembly. It is compatible with Harmony XB5 diameter 22mm control and signaling units. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

Technical Information

Applications
For XB5 22 mm control and signalling units
Current
18 mA
Light Source
Integrated and protected LED
Net Weight
0.015 kg
Operating Temperature
-40-70 Adegrees C
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,EN/IEC 60947-5-5,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS: <= 2 X 1.5 MMA WITH CABLE END CONFORMING TO EN/IEC 60947-1SCREW CLAMP TERMINALS: >= 1 X 0.22 MMA WITHOUT CABLE END CONFORMING TO EN/IEC 60947-1
Type
Light block
Voltage
24 VAC//VDC

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZALV

General Product Info

12-Digit UPC
389110115140
GTiN
03389110115147
Product UPC
78590137969
Weight
0.03 lb

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL Listed
Country of Origin
France
