BELDEN 3106A RS485 (1PR) 22 AWG (7X30) TC & (1) 22 AWG (7X30) TC FHDPE/PVC FOIL+TC BRAID SHLD CM PLTC

Manufacturer: Belden Wire & Cable | Catalog # 3106A | Cooper Electric Part # 1275073
$3,976.11/m (1000 ft)
ft
Order in multiples of 1000 (pack qty)
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
6,000 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet

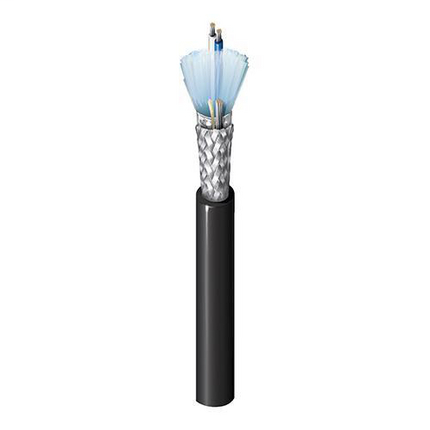

3106A Multi-conductor cable. 22 AWG stranded (7x30) tinned copper conductors, Datalene® insulation, twisted pairs, overall Beldfoil® shield (100% coverage) plus a tinned copper braid (65% coverage), drain wire, UV resistant PVC jacket.

Technical Information

Amperage
2.7 Amp per Conduc-r at 25 C
Bend Radius
3 in
Conductor Material
Tinned Copper
Conductor Size
22 AWG
Impedance
120 ?
Insulation Material
Foamed High Density Polyethylene
Material
PVC
Number of Conductors
1 Pair
Shield Type
Shielded
Shielding Type
Braid(s),Foil
Stranding
7x30
Temperature Rating
-20 to 60 degrees C
Voltage
300 Volt RMS (NEC Type PLTC), 300 Volt RMS (NEC Type CM)

Manufacturer Information

Brand
Belden

General Product Info

12-Digit UPC
902968800367
Jacket Material
Polyvinyl Chloride
Product UPC
90296880036
Weight
48 lb

Dimensions

Length
5000 Foot
Outside Diameter
0.03 in
Suitable Applications
  • harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.
