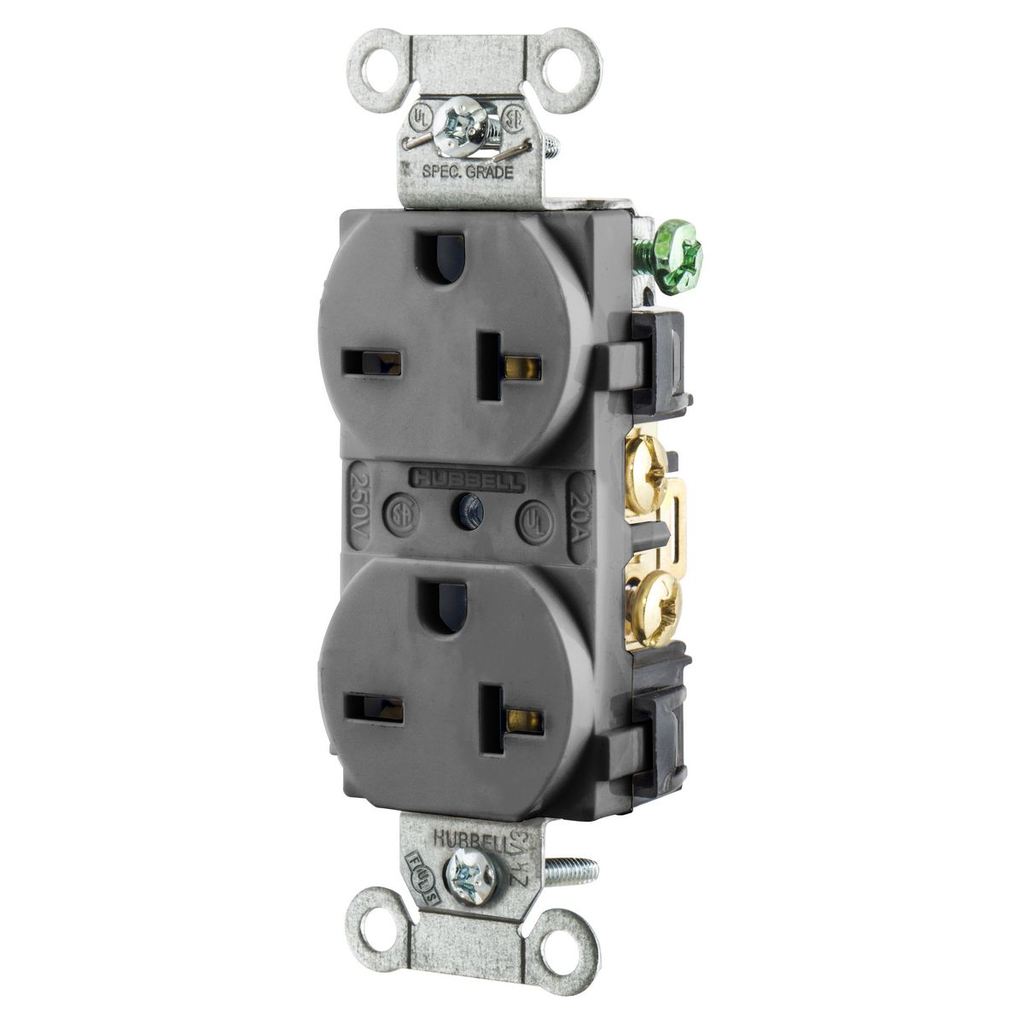

Product image for HWDK 5462GY RCPT, DUP, COMM, 20A 25
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Email

HWDK 5462GY RCPT, DUP, COMM, 20A 25

Manufacturer: Hubbell Wiring Device | Catalog # 5462GY | Cooper Electric Part # 1274319
$20.71/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Straight Blade Devices, Receptacles, Duplex, Heavy Duty Grade, 2-Pole 3-Wire Grounding, 20A 250V, 6-20R, Gray

Technical Information

Amperage
20 Amp
Applications
Hubbell-Pro Heavy Duty
Conductor Size
14-10 AWG
Cord Type
All Listed Portables
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
2 hp
Material
Nylon
NEMA
6-20R
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
Size 3
Standard
CSA 22.2,Fed. Spec. W-C-596,NEMA® WD-6,No. 42,UL,UL498 File No. E2186
Style
Smooth Face
Type
Standard Duplex
Wattage
5000 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Male Plugs

General Product Info

12-Digit UPC
783585555911
Color
Gray
Environmental Conditions
Indoor Dry Unless Protected By Other Means
GTiN
00783585555911
Product Series
Hubbell-PRO
Product UPC
78358555591
Weight
0.2 lb

Dimensions

Height
1.7 Inch
Length
4.3 Inch
Width
1.900 in

Certifications and Compliance

Country of Origin
China
Features
  • Back and side wired
  • Fed- Spec UL listed
  • Smooth nylon face, Brass triple-wipe contacts
  • Self Grounding
