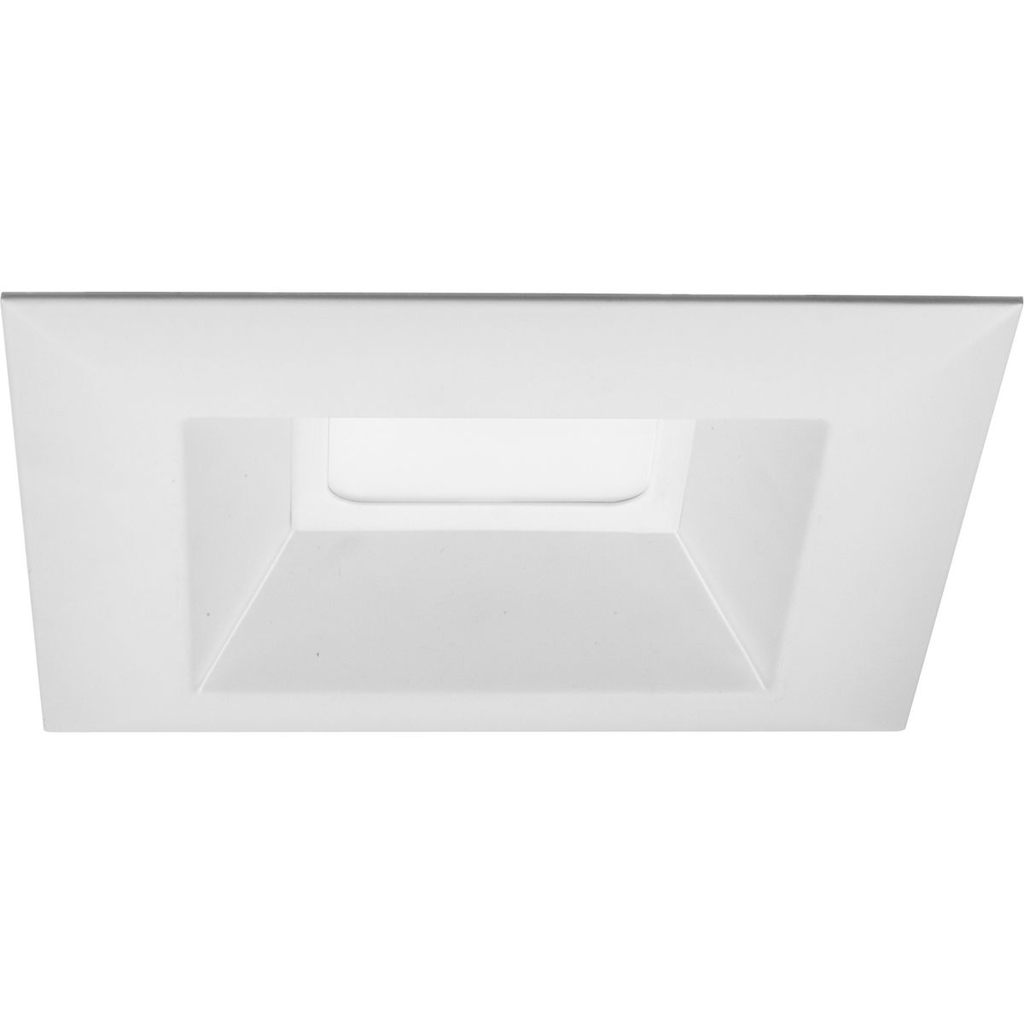

Product image for PROG P8171-28-30K P8171-28-30K 6IN
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

PROG P8171-28-30K P8171-28-30K 6IN

Manufacturer: Progress Lighting | Catalog # P8171-28-30K | Cooper Electric Part # 1272932
$69.86/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Installation / Instruction Manual
The 6" LED Square is ideal for use in both new construction as well as remodel/retrofit. The sleek geometric shape provides a high end appeal for residential and commercial spaces. Light output is comparable to that of a typical 65W incandescent downlight, providing up to 75 percent energy savings. The LED Recessed Square Trim is equipped with both Edison base adaptor and quick link connector allowing easy installation in many standard round incandescent recessed housings. White finish.

Technical Information

Amperage
0.078 Amp
Color Accuracy
90+
Color Rendering Index
90+
Color Temperature
3000 K
Correlated Color Temp
3,000 K
Frequency
60 Hz
Lamp Type
LED
Lamp Wattage
9 W
Material
Aluminum Diecast
Number of Lamps
1
Power Source
Hardwired
Style
Commodity,Utilitarian
Type
Non-Reversing
Voltage
120 Volt
Wattage
9 Watt

Manufacturer Information

Brand
Progress
Sub Brand
Progress LED

General Product Info

12-Digit UPC
785247199877
Color
White,White
Construction
Construction
Finish
Painted
GTiN
00785247199877
Product UPC
78524719987
Weight
1.12 lb

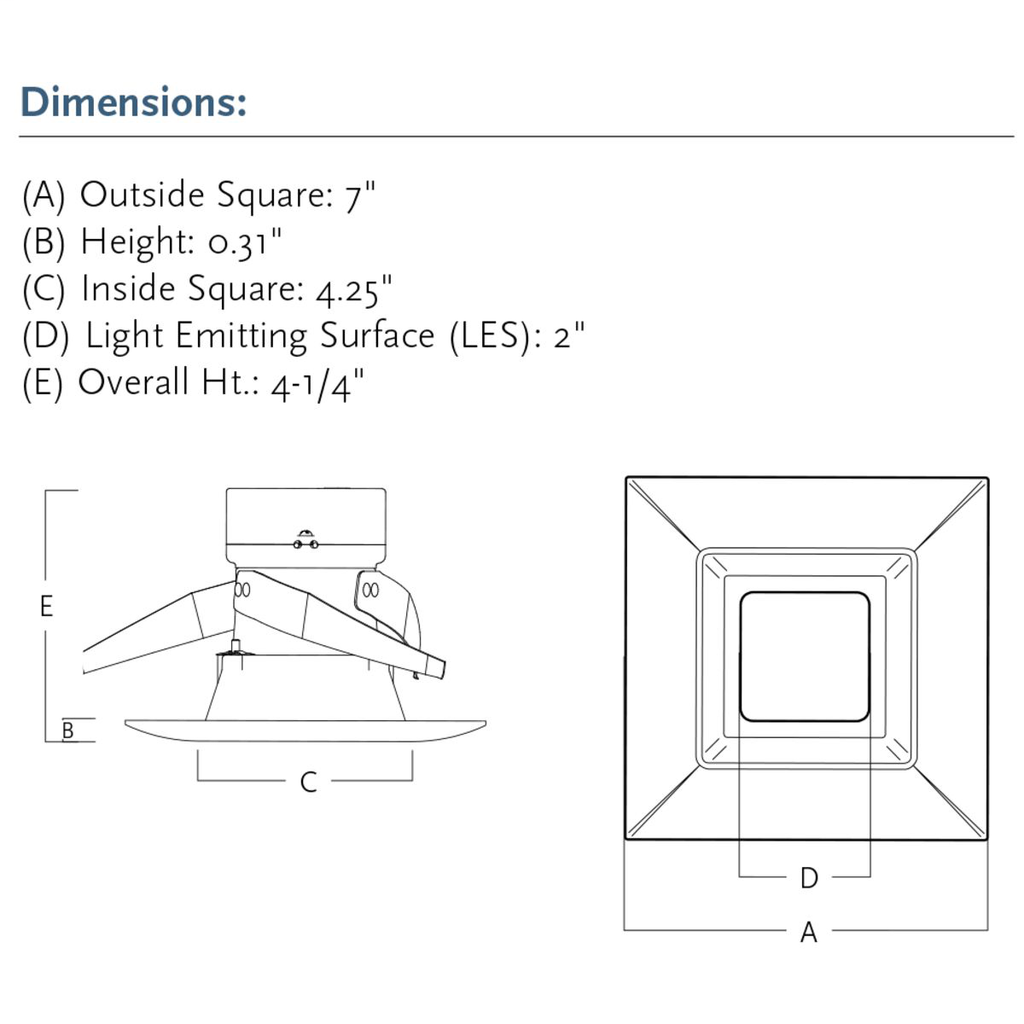

Dimensions

Height
0.31 Inch
Length
6-7/8 Inch
Warranty Length
5 yr
Width
6.875 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Country of Origin
China
Controls - Applications
  • Zone Lumens %_Fixt
  • 0-30 334 43.1
  • 0-40 509 65.8
  • 0-60 731 94.4
  • 0-90 774 100.0
  • 90-180 0 0.0
  • 0-180 774 100.0
Features
  • White finish
  • Diffused polycarbonate lens controls direct glare from the LEDs
  • Easy \"Push and Twist\" installation with (3) friction spring clips
  • Can be installed in most 6\" round recessed housings
  • Dimmable to 10% with many Triac/Forward Phase dimmers
  • Lumen output and distribution comparable to a 75W incandescent lamp
  • 774 Lumens (delivered).
  • Suitable for use in IC or NON-IC Applications
  • Provided with quick link for use with E26 Edison Base adapter
  • ENERGY STAR certified.
  • California Title 24 - JA8 - 2016
  • This product is not available for sale into the State of California.
