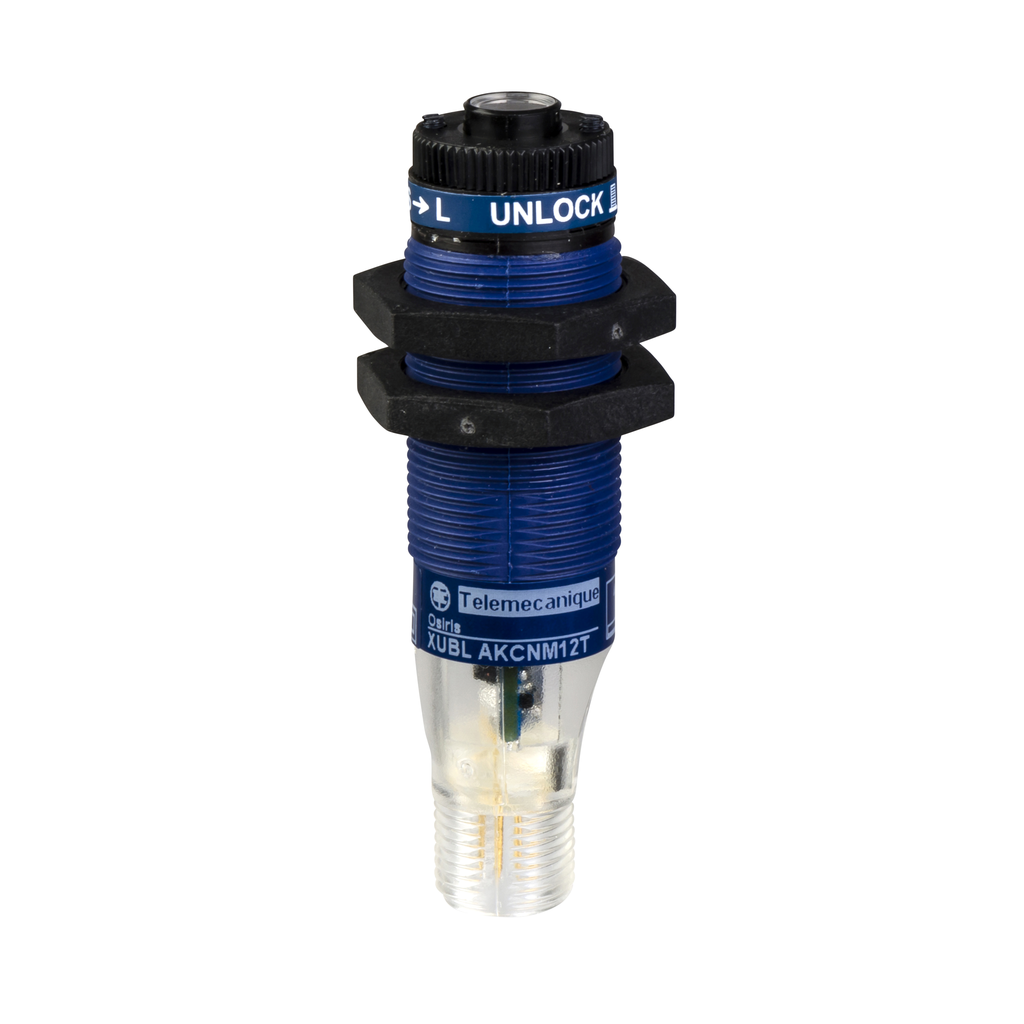

Product image for TES XUBLAKCNM12T Photoelectric sensors XU, XUB, emitter, laser, 12...24 VDC, M12
Image thumbnail 0
Image thumbnail 1
Email

TES XUBLAKCNM12T Photoelectric sensors XU, XUB, emitter, laser, 12...24 VDC, M12

Manufacturer: TES Electric | Catalog # XUBLAKCNM12T | Cooper Electric Part # 1269864
$278.30/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This photo-electric sensor is part of the XU Application range. It is recommended for material handling applications. This transmitter is a separate component for the thru-beam system sensors XUBLAPCNM12 or XUBLANCNM12, laser transmission. It features a plastic body, design 18, and an M12 connector. 3-wire DC.

Technical Information

Amperage
<= 100 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION)
Applications
-
Current
25 mA
Enclosure
IP67 DOUBLE INSULATION CONFORMING TO IEC 60529,PBT
Enclosure Material
PBT
Material
Plastic
Net Weight
0.04 kg
Operating Cycles
<= 1500 HZ
Operating Temperature
-10-45 Adegrees C
Sensing Range
0-100 M THRU BEAM NEED A RECEIVER,> 98.43 FT (30 M)
Size
18 MM,66 MM
Storage Temperature
-40-70 degrees C
TC Connection
1 MALE CONNECTOR M12, 4 PINS
Type
APPLICATION MATERIAL HANDLING,CYLINDRICAL M18,PHOTO-ELECTRIC SENSOR TRANSMITTER,THRU BEAM
Voltage
12...24 Volt DC REVERSE POLARITY PROTECTION

Manufacturer Information

Brand
Telemecanique

General Product Info

12-Digit UPC
389119021046
GTiN
03389119021043
Product UPC
38911902104
Weight
0.09 lb

Dimensions

Diameter
18 mm
Length
66 mm
Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL
Country of Origin
France
