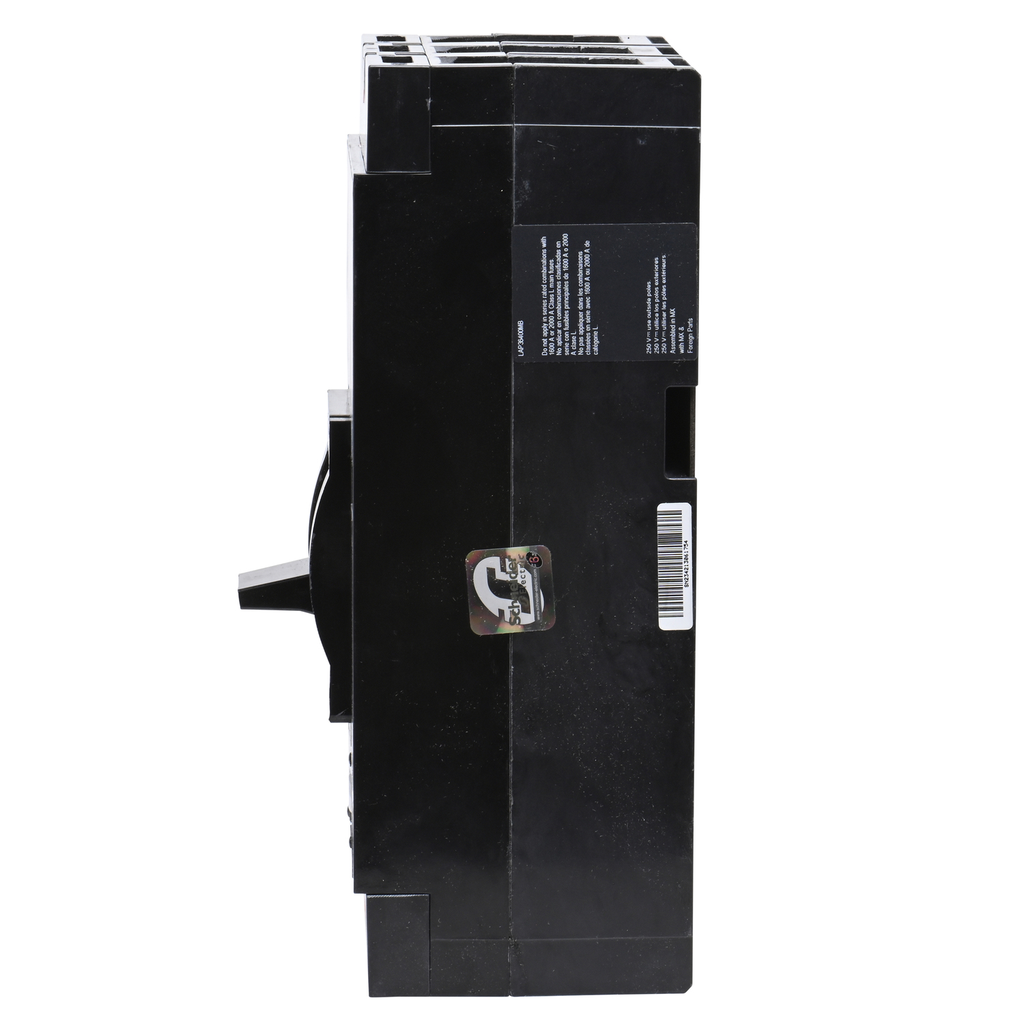

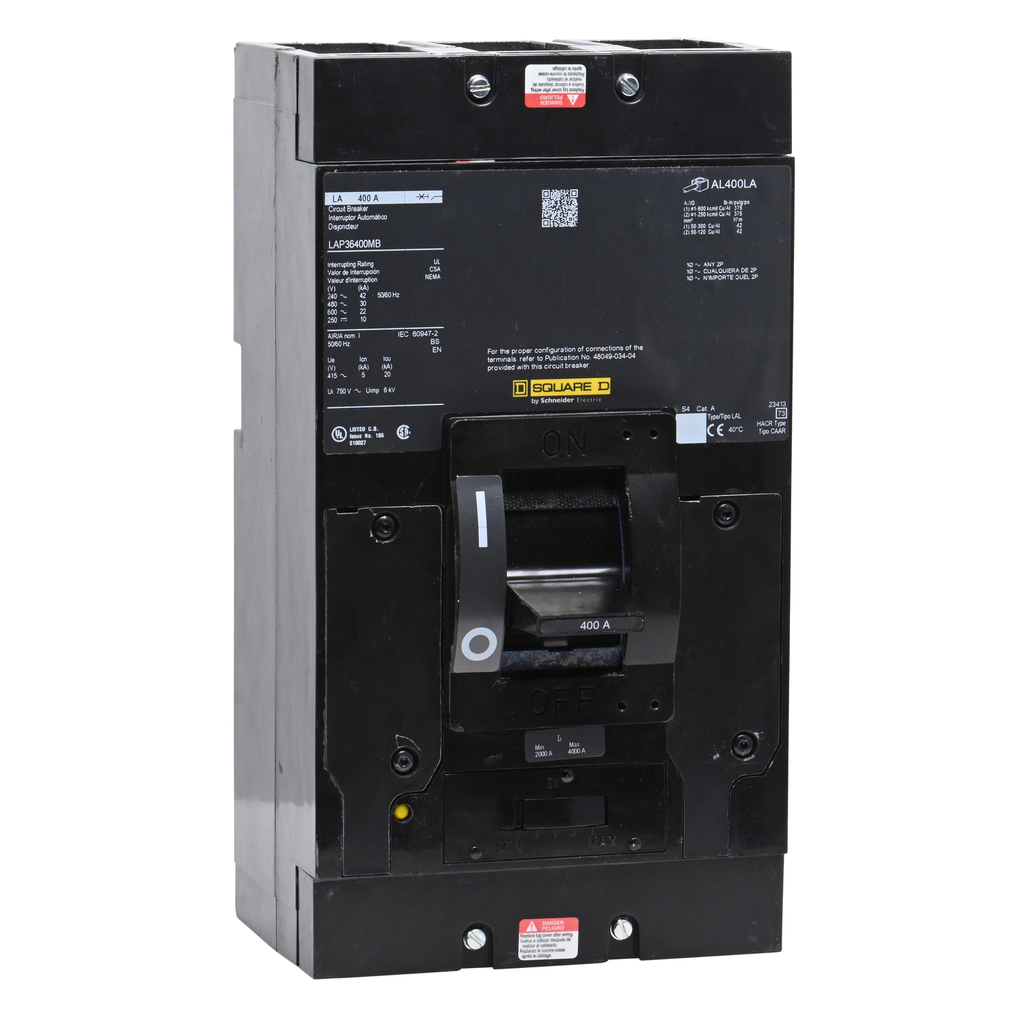

Square D LAP36400MB 3-Pole 400 Amp 600 Volt Thermal Magnetic Molded Case Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # LAP36400MB | Cooper Electric Part # 126541
$4,619.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
Square D FA/LA Molded Case Circuit Breakers is designed to protect electrical systems from damage caused by overloads. For distribution systems supplied by transformers and distribution systems supplied by engine generator sets.

Technical Information

Actuator
SHORT LEVER
Amperage
400 Amp
Current
400 Amp
Frame
A
Interrupt Rating
10, 22, 30, 42 kAIC
Line Rated Current
400 A
Mounting Type
Unit Mount
Number of Poles
3 Pole
TC Connection
AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD-TERMINAL LINE
Terminal Type
AL400LA
Trip Point
4000-4000 A
Trip Range
2000 A,400 A,4000 A
Trip Type
MAGNETIC
Type
Circuit breaker
Voltage
600 Volt

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901650386
GTiN
00785901650386
Product UPC
78590165038

Dimensions

Depth
5.84 Inch
Height
11 Inch
Length
5.84 Inch
Warranty Length
18 mth
Width
6 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go t
Certifications
CSA,IEC,UL Listed
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go t
Carbon Footprint Of The Installation Phase A5
  • 1.8967904693791804
  • 2 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 10 kg CO2 eq.
  • 10.302971150240523
Electrical Connection
  • lugs, load
  • terminal, line
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 44 kg CO2 eq.
  • 43.82880551360121
Accessories
  • AL400LA
  • LA11021
  • LA11027
  • LA11037
  • LA11212
  • VC400LA35
  • VC400LA3
  • VC400LA5
  • VC400LA7
  • PDC6LA20
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • Contractor
  • OEM - Control Panelbuilder
  • Panel Builder
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 1 102 kg CO2 eq.
  • 1102.0746377830335
Accessory Products
  • AL400LA
  • LA11021
  • LA11027
  • LA11037
  • LA11212
  • VC400LA35
  • VC400LA3
  • VC400LA5
  • VC400LA7
  • PDC6LA20
Persona Type Ids
  • LC
  • OM8
  • PB
Carbon Footprint Of The Distribution Phase A4
  • 1.966271580566898
  • 2 kg CO2 eq.
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
