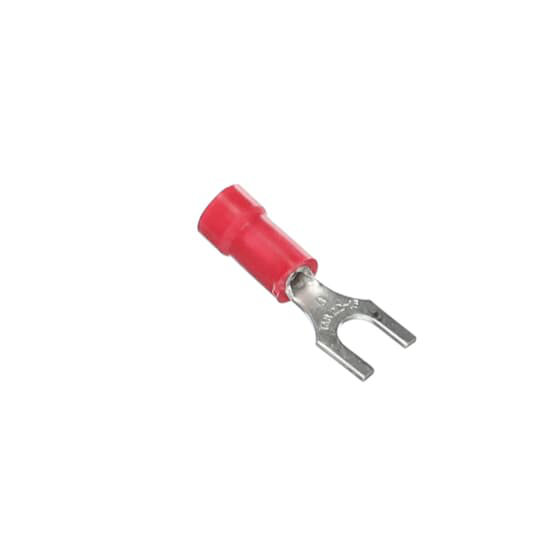

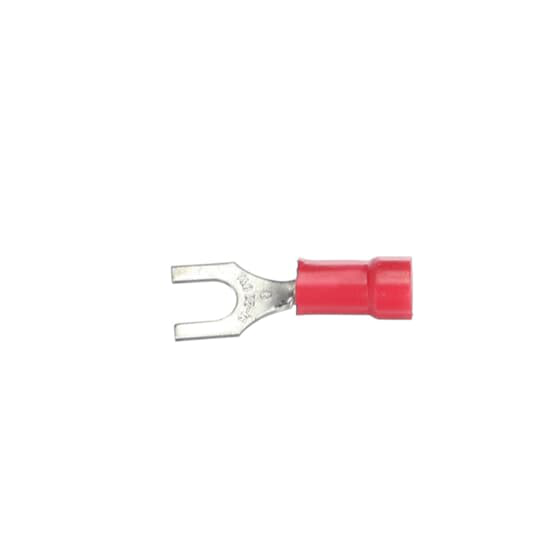

Product image for Thomas & Betts 18RA-8F 22 to 16 AWG #8 Stud Red Electrotinned Copper Vinyl Insulated Fork Terminal
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Thomas & Betts 18RA-8F 22 to 16 AWG #8 Stud Red Electrotinned Copper Vinyl Insulated Fork Terminal

Manufacturer: ABB | Thomas & Betts | Catalog # 18RA-8F | Cooper Electric Part # 1265
$110.27/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Vinyl-Insulated Fork Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .150, Bolt Hole #8, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam
Conductor Size
22-16 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Standard
UL E9809
Stud Size
#8
Temperature Rating
105 degrees C
Terminal Type
RA
Type
Long Sleeve
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210800899
Color
Red
Finish
Tin Plated
GTiN
05414363138600
Product UPC
78621080089
Used With
Round Conductors

Dimensions

Height
9 Inch
Thickness
.03 in
Width
9.4 in
Certifications
  • UL
  • CSA
Features
  • These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire's flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded.
