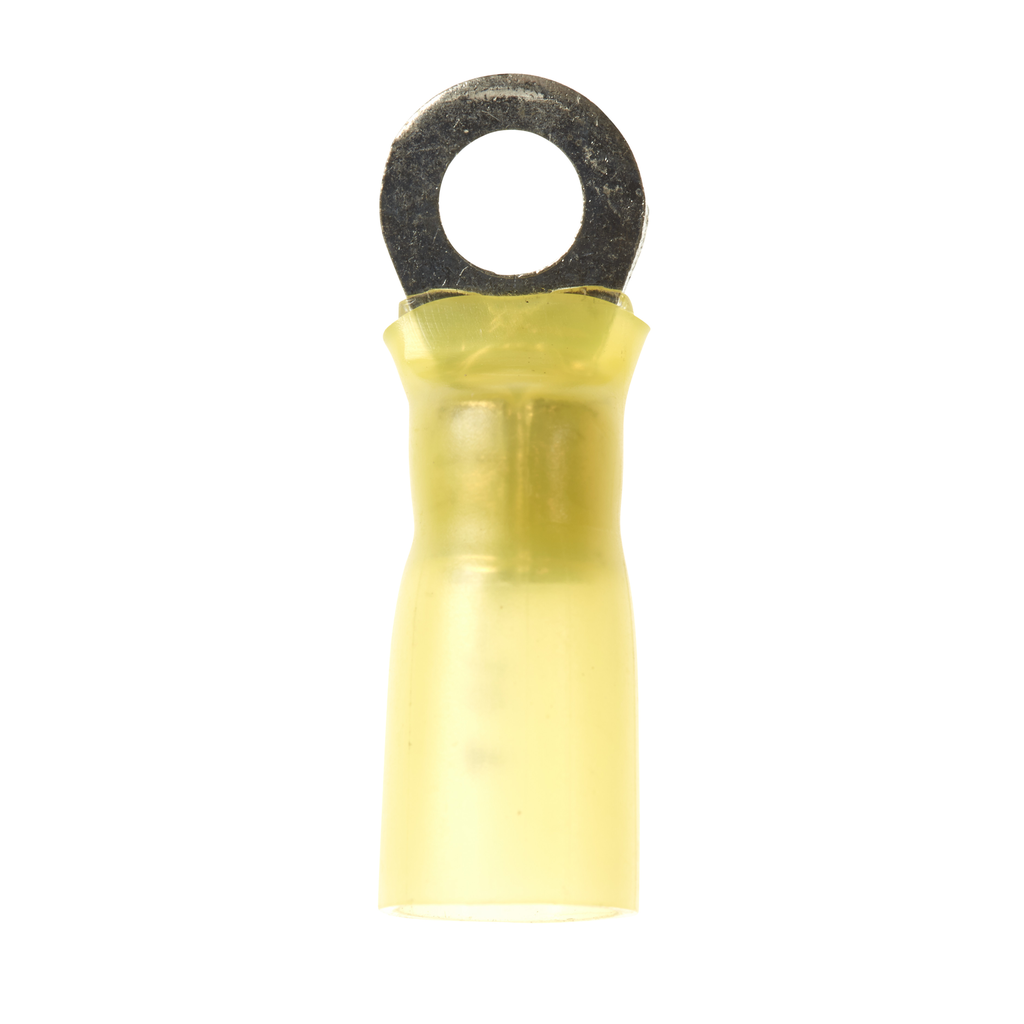

Product image for 3M 7100164267 3M™ Scotchlok™ Heat S
Email

3M 7100164267 3M™ Scotchlok™ Heat S

Manufacturer: 3M | Catalog # 7100164267 | Cooper Electric Part # 1263405
$1.53/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
For versatile use and protection against contaminants, choose our 3M™ Scotchlok™ Color-Coded Heat Shrink Ring Tongue Terminal, which features a tin-plated finish to help prevent corrosion. Adhesive-lined polyolefin tubing over the brazed-seam barrel seals against moisture, and electrolytic copper provides excellent conductivity. This terminal handles temperatures up to 221 degrees F (105 degrees C).

Technical Information

Barrel Length
0.25 in
Barrel Type
Brazed
Conductor Size
12-10 AWG
Insulation Material
Heat Shrink
Material
Heat Shrink
Standard
UL And CSA
Stud Size
10
Terminal Size
12 - 10 AWG
Terminal Style
Standard
Terminal Type
Ring
Type
Short Sleeve, Standard

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
054007063063
GTiN
00054007063063
Product UPC
05400706306

Dimensions

Length
1.1 Inch
Overall Length
1.1 in
Thickness
0.04 in
Width
0.38 in

Certifications and Compliance

Country of Origin
USA
Features
  • Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
