Square D 9001BG204 5 Amp 600 VAC Type B Control Station Contact Block

Manufacturer: Square-D / Schneider | Catalog # 9001BG204 | Cooper Electric Part # 126224
$129.00/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
1 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page

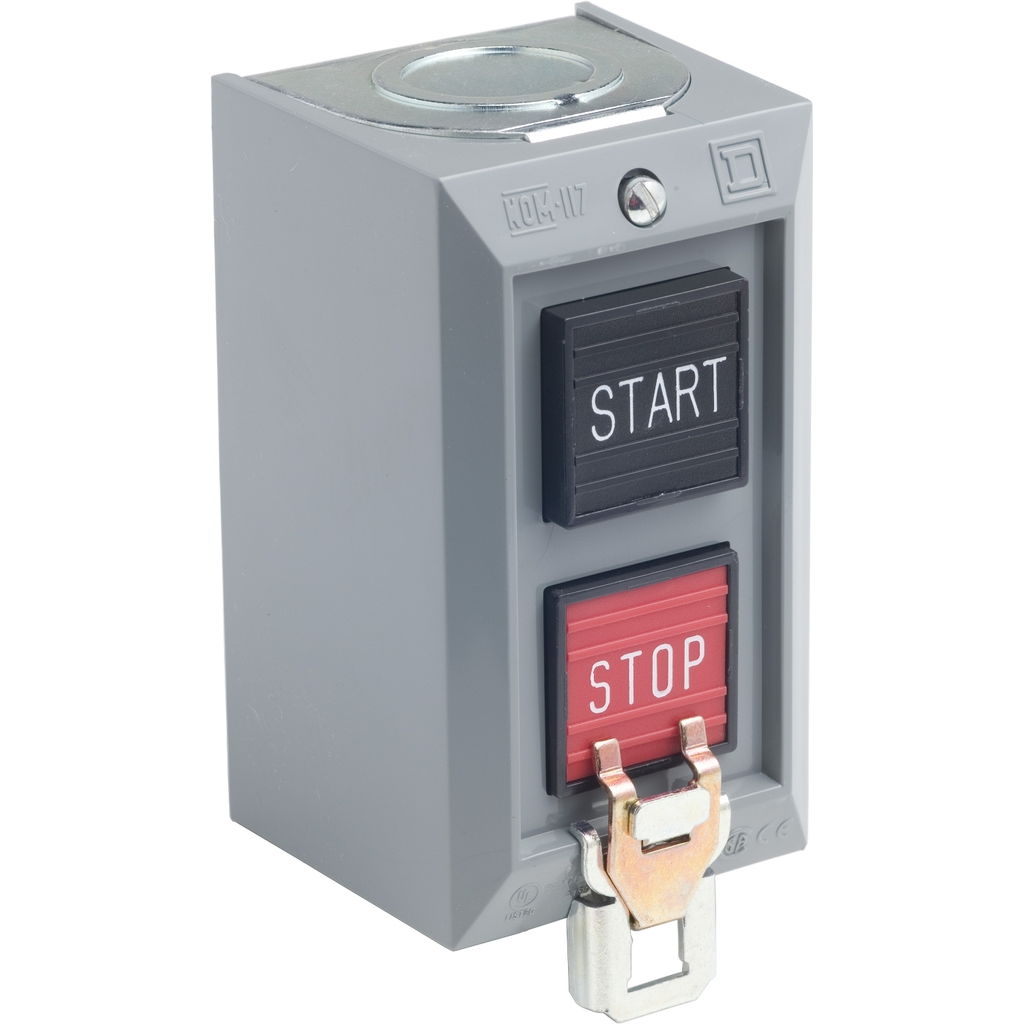

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has two square momentary push buttons. It has a START push button with a normally open contact and a STOP push button with a normally closed contact. The STOP push button has a lockout on it. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.

Technical Information

Action
1 NO + 1 NC
Amperage
5 Amp 600 V
Enclosure
NEMA 1
Mounting Type
Surface
TC Connection
SCREW CLAMP TERMINAL
Type
Complete control station
Voltage
600 Volt

Manufacturer Information

Brand
Square D
Sub Brand
9001BG

General Product Info

12-Digit UPC
785901390190
Environmental Conditions
Indoor
GTiN
00785901390190
Product UPC
78590139019

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA LR25490 Class 3211 03,UL Listed File E42259 CCN NKCR
Country of Origin
Mexico
Prop 65
  • \"WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov\
