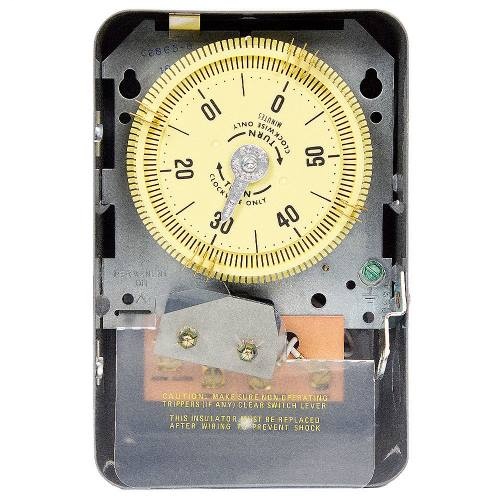

Product image for Intermatic C8865 NEMA 1 125 VAC 60 Hz 20 Amp SPDT Electromechanical Time Switch
Email

Intermatic C8865 NEMA 1 125 VAC 60 Hz 20 Amp SPDT Electromechanical Time Switch

Manufacturer: Intermatic, Inc | Catalog # C8865 | Cooper Electric Part # 125811
$411.26/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
The C8800 Series Short Range Cycle Timers come in various timing durations allowing for unprecedented control for various applications. These time switches can handle resistive loads up to 20 A and electric motor loads up to 1 HP at 240 VAC.

Technical Information

Action
SPDT
Amperage
20 Amp
Applications
Ventilating Fans, Fogging Equipment, Process Equipment, Poultry and Livestock Feeders, Spraying Equipment
Connection Type
Ring-Type
Contact Configuration
SPDT - 1 NO, 1 NC
Contact Rating
20 A at 125/208 - 277 VAC (Resistive)
Enclosure
NEMA 1
Enclosure Rating
1
Enclosure Type
NEMA 1
Frequency
60 Hz
Input Voltage
125 V
Mounting Type
Wall Mount
Number of Poles
1 Pole
Operating Cycles
100000
Operating Temperature
-40 To 130 degrees F
Power Consumption
3 W
Size
7-3/4 HEIGHT X 5 WIDTH X 3 DEPTH IN, 19.7 HEIGHT X 12.7 WIDTH X 7.62 DEPTH CM
Standard
CCSAus Certified
Switch Type
SPDT
TC Connection
Ring-Type
Temperature Rating
-40 to 130 degrees F
Type
Short Range Cycle
Voltage
125 Volt
Wattage
3 Watt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275146013
GTiN
00078275146013
Product UPC
07827514601

Dimensions

Warranty Length
1 yr
Applications
  • Ventilating Fans
  • Fogging Equipment
  • Process Equipment
  • Poultry & Livestock Feeders
  • Spraying Equipment
Features
  • Repeat cycling for ON times
  • 10 trippers provided
  • Dials have 120 slots
  • Type 1 indoor metal enclosure
