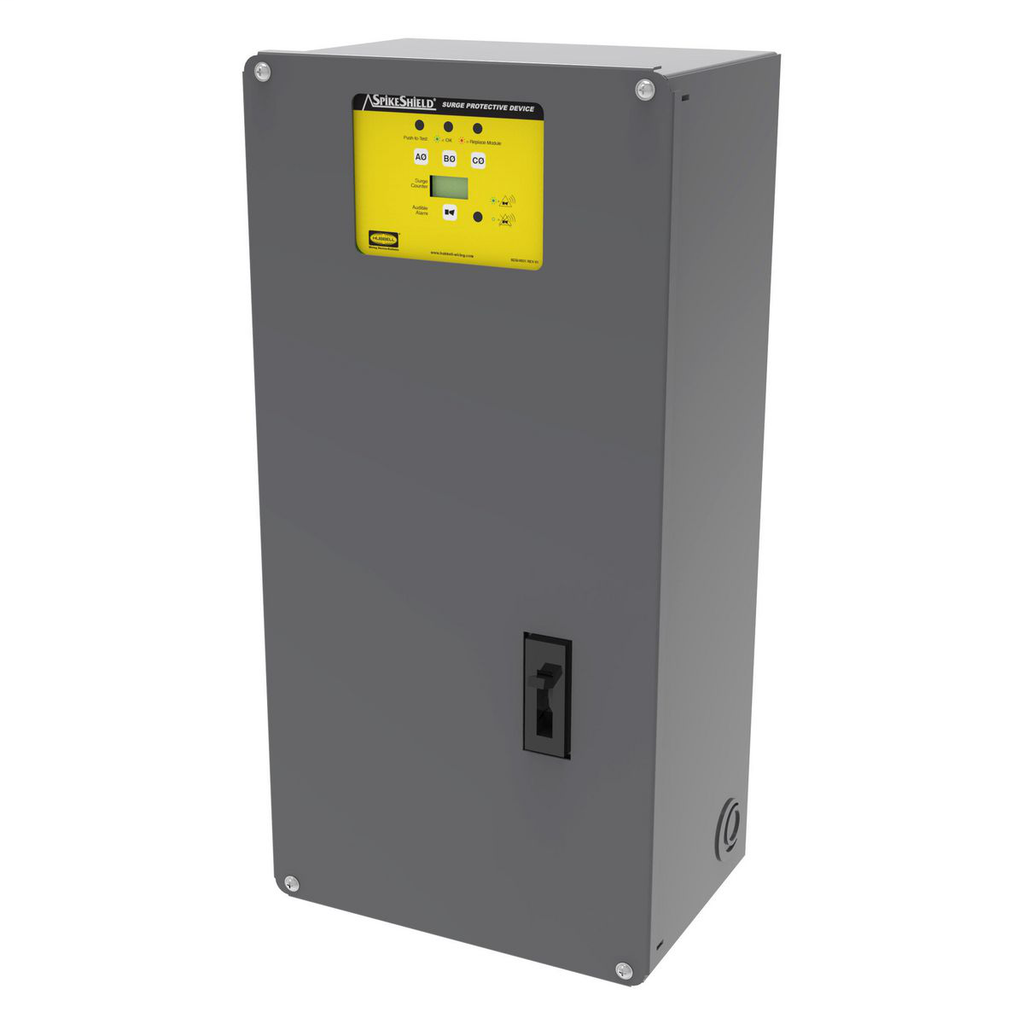

HWDK HBL4P320DB SPD PANEL, 320KA, 1

Manufacturer: Hubbell Wiring Device | Catalog # HBL4P320DB | Cooper Electric Part # 1253859
$12,076.49/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure
Surge Protective Devices, Panel, 320KAPeak Capacity, 120/208V AC, 4-Pole 5-Wire Grounding, With Disconnect

Technical Information

Applications
For Circuit Protection
Material
Composite
Operating Temperature
32 to 140 degrees F, 0 to 60 degrees C
Response Time
5n s
Size
Standard
Standard
C22.2 No. 42,CSA,File E2186,UL,UL Standards 498 Receptacles
TC Connection
Terminal Screws
Type
320kA
Voltage
120/208 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
SpikeShield®

General Product Info

12-Digit UPC
783585570143
Class
Normal and Common Mode
Environmental Conditions
Indoor Only
GTiN
00783585570143
Product UPC
78358557014

Dimensions

Height
9.4 Inch
Length
23.9 Inch
Width
11.600 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Improved performance through the use of a low impedance bus-bar design

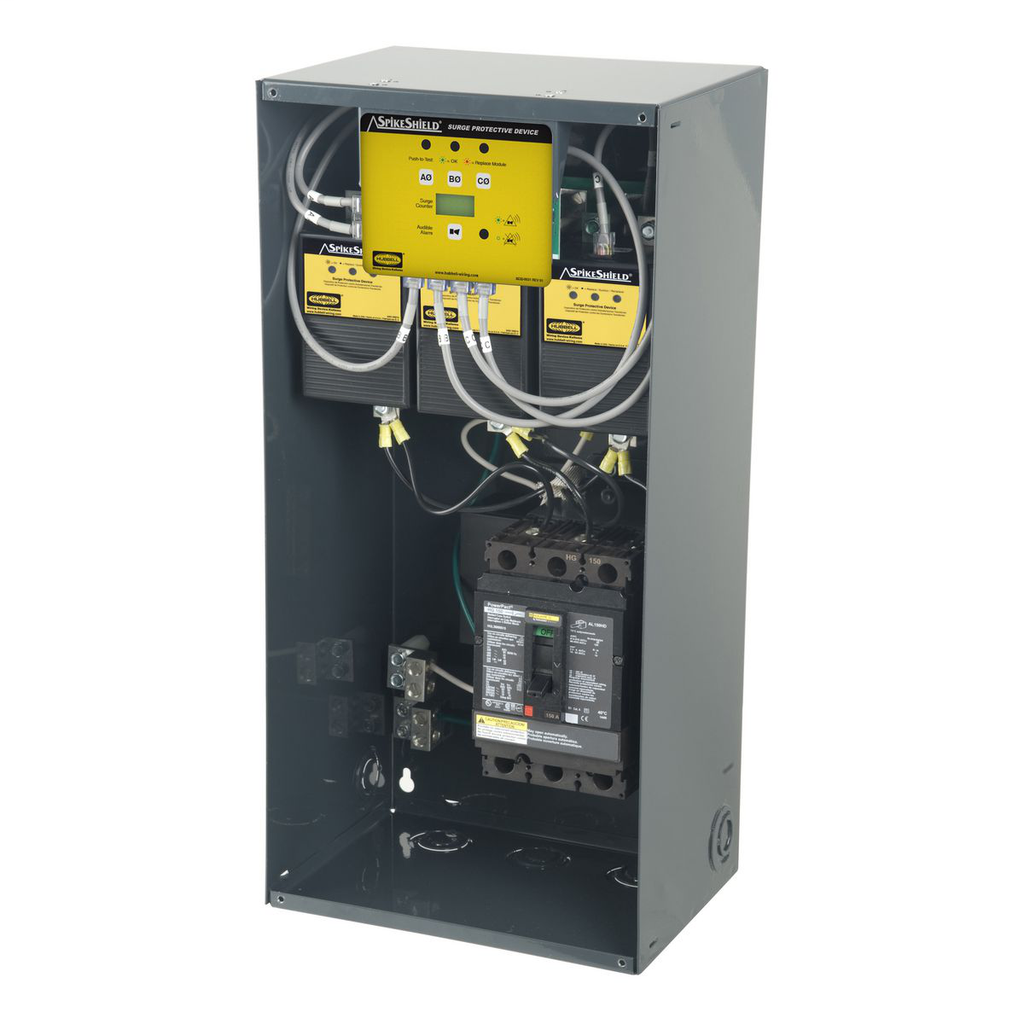

  • Replaceable surge protection modules
  • Surge counter included in all units
  • NEMA 1 enclosure

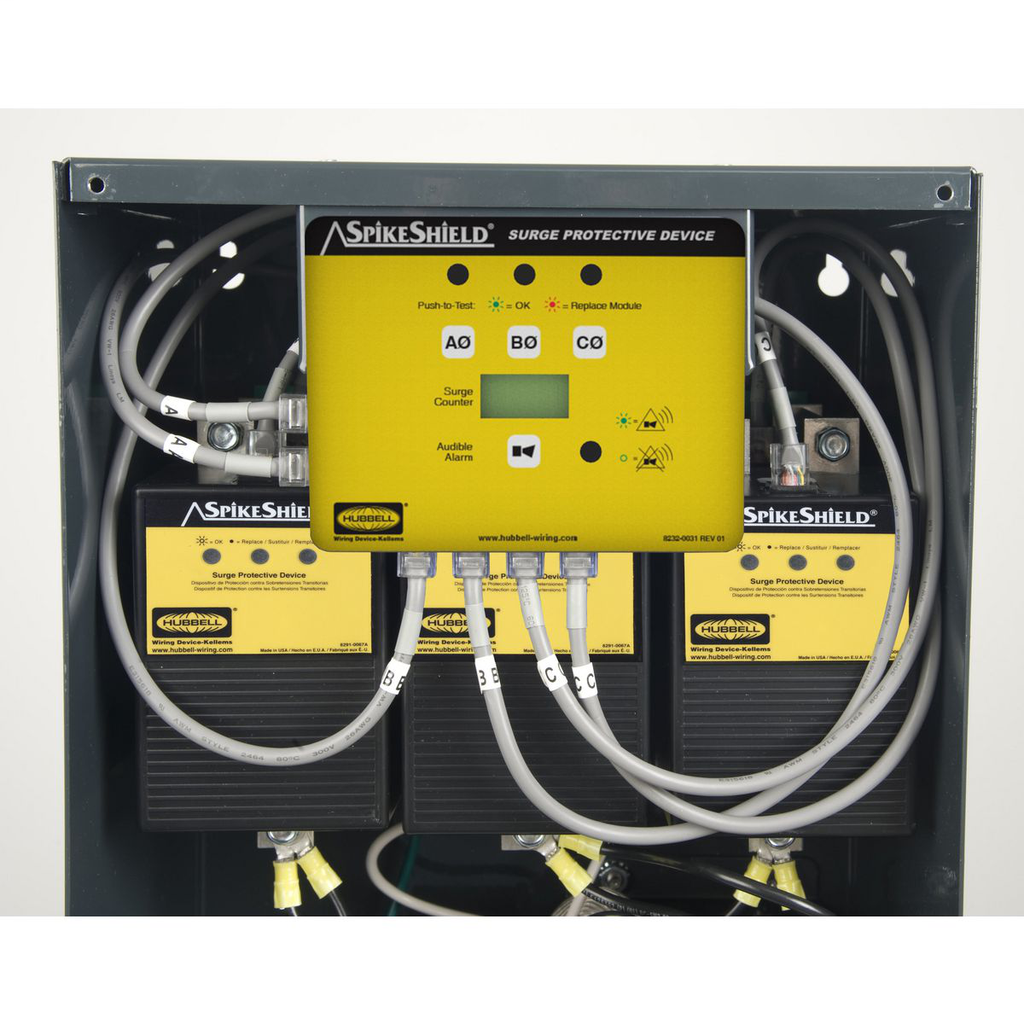

  • LED and audible alarm status indicator
