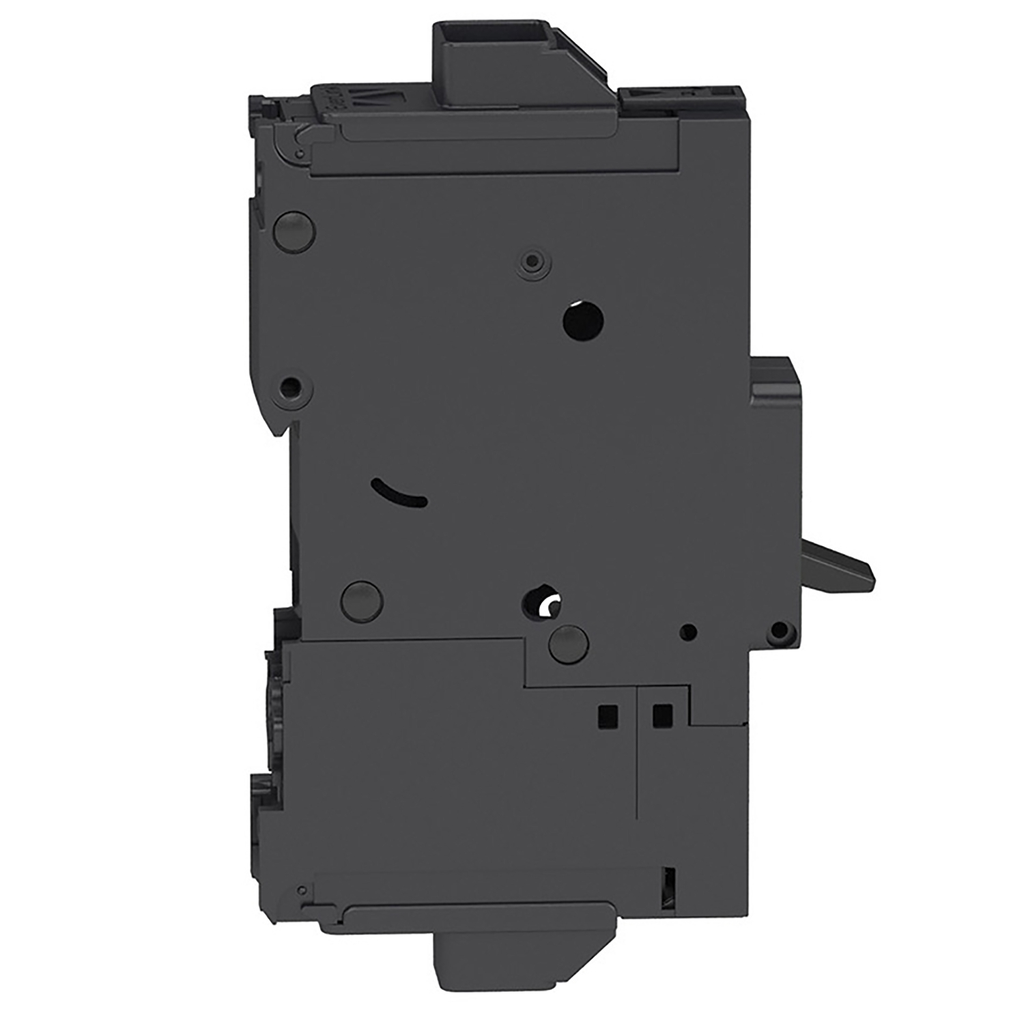

SQUARED BDL16035 Circuit breaker, P

Manufacturer: Square-D / Schneider | Catalog # BDL16035 | Cooper Electric Part # 1253548
$514.50 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a break

Technical Information

Amperage
35 Amp
Line Rated Current
35-35 A
Mounting Type
By Screws Plate),Clip-on 35 Mm Symmetrical DIN Rail)
Net Weight
0.51 kg
Number of Poles
1 Pole
Standard
CSA C22.2 No 5,EN/IEC 60947-2,EN/IEC 60947-5-1,GB 14048.2,NEMA AB1,NMX J-266,UL 489
Storage Temperature
-50-85 degrees C
Strip Length
20 mm
Voltage
240 Volt

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
606481148493
Color
Gray
GTiN
03606481148490
Product UPC
60648114849
Weight
0.51 kg

Dimensions

Depth
3.15 in
Height
5.39 in
Length
20 mm
Width
1.06 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go t
Certifications
CCC,CSA,EAC,IEC,NOM,UL
Country of Origin
Mexico
Uimp Rated Impulse Withstand Voltage
  • 8 kV IEC 60947-2
Mounting Mode
  • clip-on 35 mm symmetrical DIN rail)
  • by screws plate)
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go t
Mechanical Durability
  • 15000 cycles IEC 947-1 Annex F ed 5.2
Carbon Footprint Of The Installation Phase A5
  • 0.12839579228916775
  • 0.1 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.7 kg CO2 eq.
  • 0.7494896638971714
Standards
  • EN/IEC 60947-5-1
  • NEMA AB1
  • UL 489
  • NMX J-266
  • CSA C22.2 No 5
  • EN/IEC 60947-2
  • GB 14048.2
Ue Rated Operational Voltage
  • 240 V AC 50/60 Hz UL 489
Ui Rated Insulation Voltage
  • 800 V IEC 60947-2
Ip Degree Of Protection
  • front cover IP40 IEC 60529
Electrical Connection
  • Everlink lug, line
  • Everlink lug, load
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 2 kg CO2 eq.
  • 2.355349702332012
Accessories
  • LV426907
  • LV426950
  • LV426962
  • LV426972
  • 9421LB4
  • LV426986
  • LV426988
Electrical Durability
  • 10000 cycles IEC 947-1 Annex K ed 5.2 In
Ics Rated Service Breaking Capacity
  • 25 kA 220...240 V AC 50/60 Hz IEC 60947-2
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 61 kg CO2 eq.
  • 60.849476439461704
Accessory Products
  • LV426907
  • LV426950
  • LV426962
  • LV426972
  • 9421LB4
  • LV426986
  • LV426988
Carbon Footprint Of The Distribution Phase A4
  • 0
  • 0 kg CO2 eq.
Tightening Torque
  • 5-5 N.m 2.5-16 mm² (AWG 14...AWG 4)
  • 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
Operating Altitude
  • 6561.68 ft (2000 m) without derating
  • 5000 m with derating
Suitability For Isolation
  • yes IEC 60947-2
AWG Gauge
  • AWG 6...AWG 2/0 fine stranded aluminium/copper
  • AWG 14...AWG 3/0 rigid or stranded aluminium/copper
  • AWG 14...
Trip Unit Technology
  • thermal-magneticTM-D,
Color
  • Gray RAL 7016)
Product Certifications
  • UL
  • IEC
  • CCC
  • EAC
  • CSA
  • NOM
