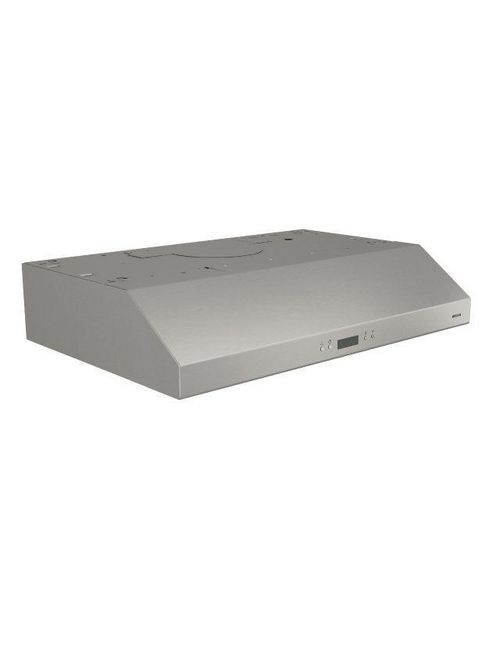

Product image for BRN GLACIER 400 CFM, ELEC. PBUTTON, LED 30IN SS
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

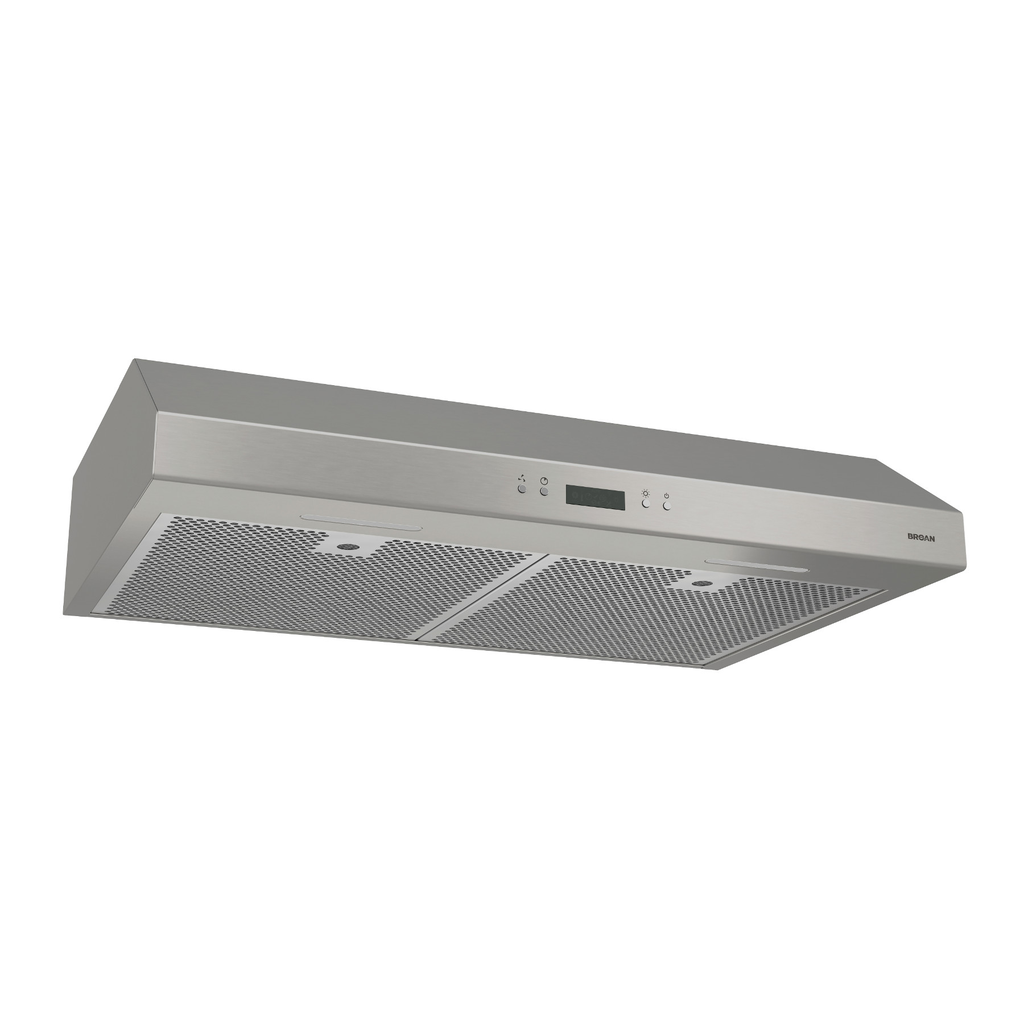

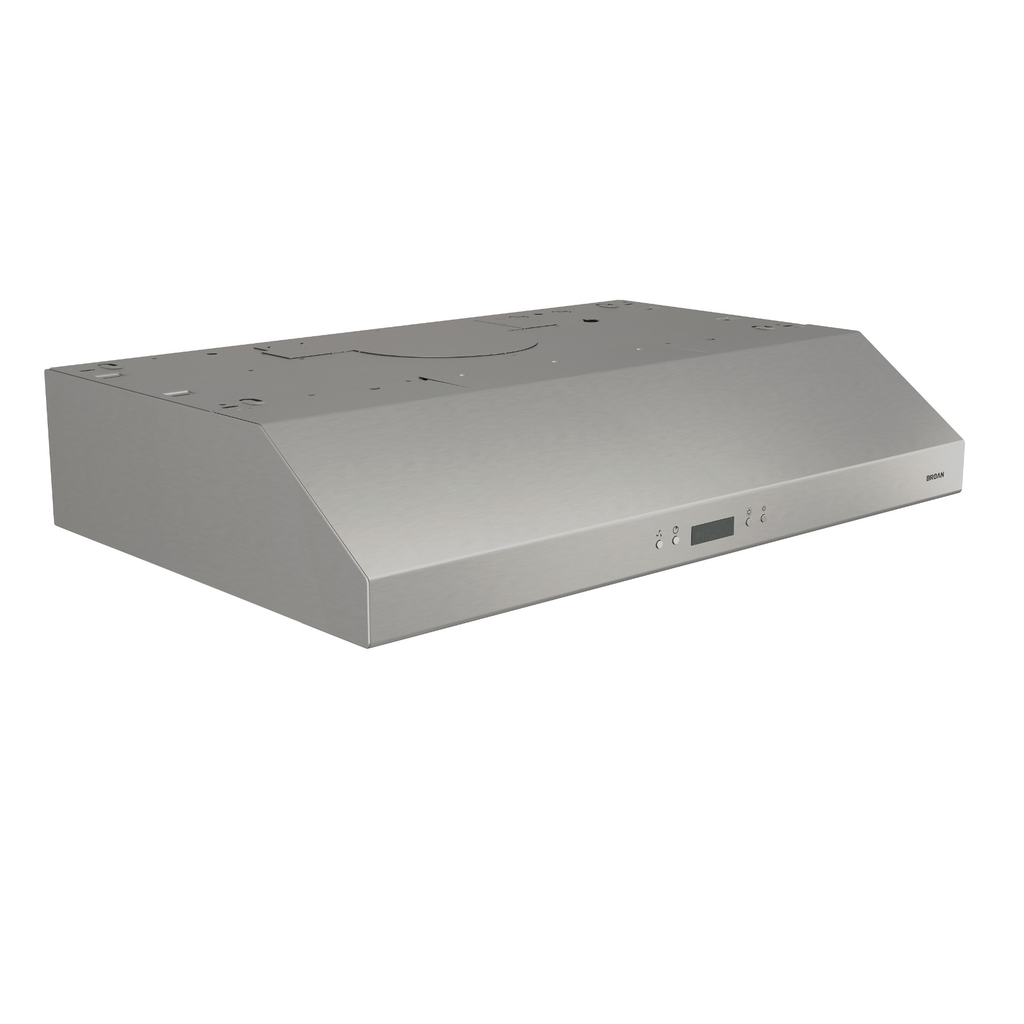

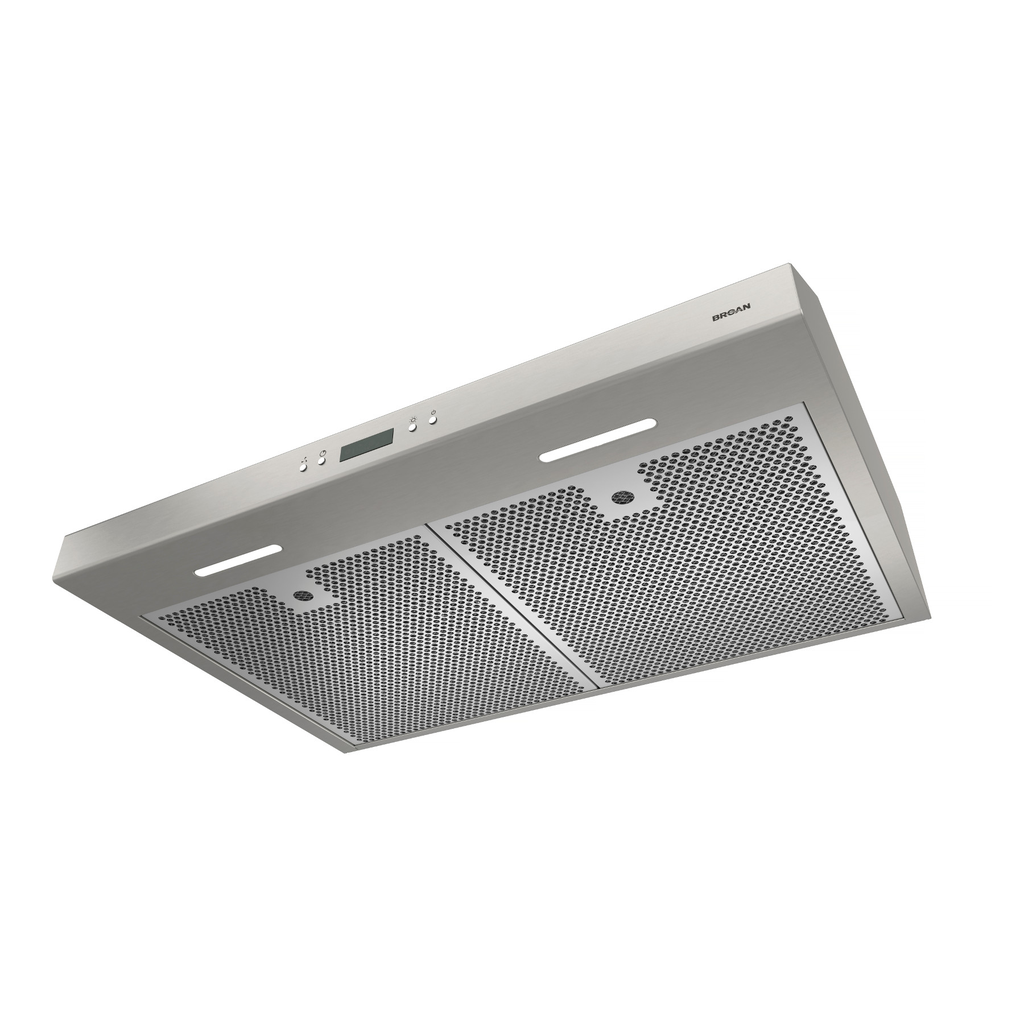

BRN GLACIER 400 CFM, ELEC. PBUTTON, LED 30IN SS

Manufacturer: Nutone | Catalog # BCDJ130SS | Cooper Electric Part # 1252304
$517.92/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual
This under-cabinet convertible range hood features a clean, contemporary shape to complement nearly any kitchen design. Equipped with the exclusive Broan Captur™ system, which combines advanced blower design with new filter technology, this 450 Max Blower CFM-rated hood provides 98.4% removal of smoke and odor to protect your home and family from airborne pollutants caused from cooking. The quiet-running Glacier is also designed with smooth flow technology, which streamlines the path of air for improved efficiency and noise reduction. The luxury of an LCD display and deluxe micro-mesh filters will make any meal preparation delightful.

Technical Information

Airflow Rate
400 CFM
Amperage
1.4 Amp
Bulb Included
Yes
Color Temperature
3000 K
Correlated Color Temp
3,000 K
Duct Shape
Rectangular,Round
Duct Size
7 in
Filter Type
Deluxe Micro Mesh
Indoor Outdoor
No
Lamp Life
25,000 hr
Light Type
LED
Lumens
450 Lumen
Material
Steel
Mounting Type
Under-Cabinet
Nightlight
No
Style
Traditional
Switch Type
Pushbutton
Voltage
120 Volt
Wattage
168 Watt

Manufacturer Information

Brand
Broan-NuTone

General Product Info

12-Digit UPC
026715240562
Color
Stainless Steel
Finish
Stainless Steel
GTiN
00026715240562
Product Series
Deluxe
Product UPC
02671524056
Weight
33 lb

Dimensions

Depth
19-5/8 Inch
Height
6 Inch
Length
19-5/8 Inch
Warranty Length
1 yr
Width
29.875 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • The Captur™ system advanced blower design features a forward positioned centric inlet to remove smoke and odor faster
  • 450 Max blower CFM operates at 0.5 sones at normal speed
  • 3-Speed electronic push button control incorporates an LCD display to show hood status for fan and light setting, filter clean reminder, Heat Sentry® and delay off
  • Bright 3-level LED modules supported by a 3-year warranty, illuminate evenly and are tested in cooking environments to ensure long life without dimming
  • Broan Heat Sentry® detects excessive heat and adjusts the blower speed to prolong the life of the product and provide proper ventilation
  • Dishwasher-safe deluxe micro-mesh filters provide highly efficient grease removal and patterned cover provides a decorative complement to the hood design
  • The filter clean reminder ensures they will always maintain a high level of efficiency
  • EZ1® system makes it easy for single-person installation in less than half the time of traditional methods
  • ADA compliant, remote operation is possible using a standard UL approved wall switch (not included)
  • Compatible with optional Broan make-up air dampers (sold separately) to fit 6\", 8\" or 10\" ducting and help to balance the air pressure when the range hood is in use, keeping your environment comfortable and meeting local codes
  • Ductless capable with use of charcoal filters, sold separately
  • Range hood is installed as hardwired or with an optional power cord kit (HCK44; sold separately)
  • 450 Max blower CFM quickly pulls smoke and odors from air
  • LED lighting ensures bright, long-lasting illumination
  • Install as ducted or ductless recirculation to suit your needs
Includes
  • Bulb(s)
  • Damper
  • Filter(s)
  • Hardware
  • Ez1 brackets
