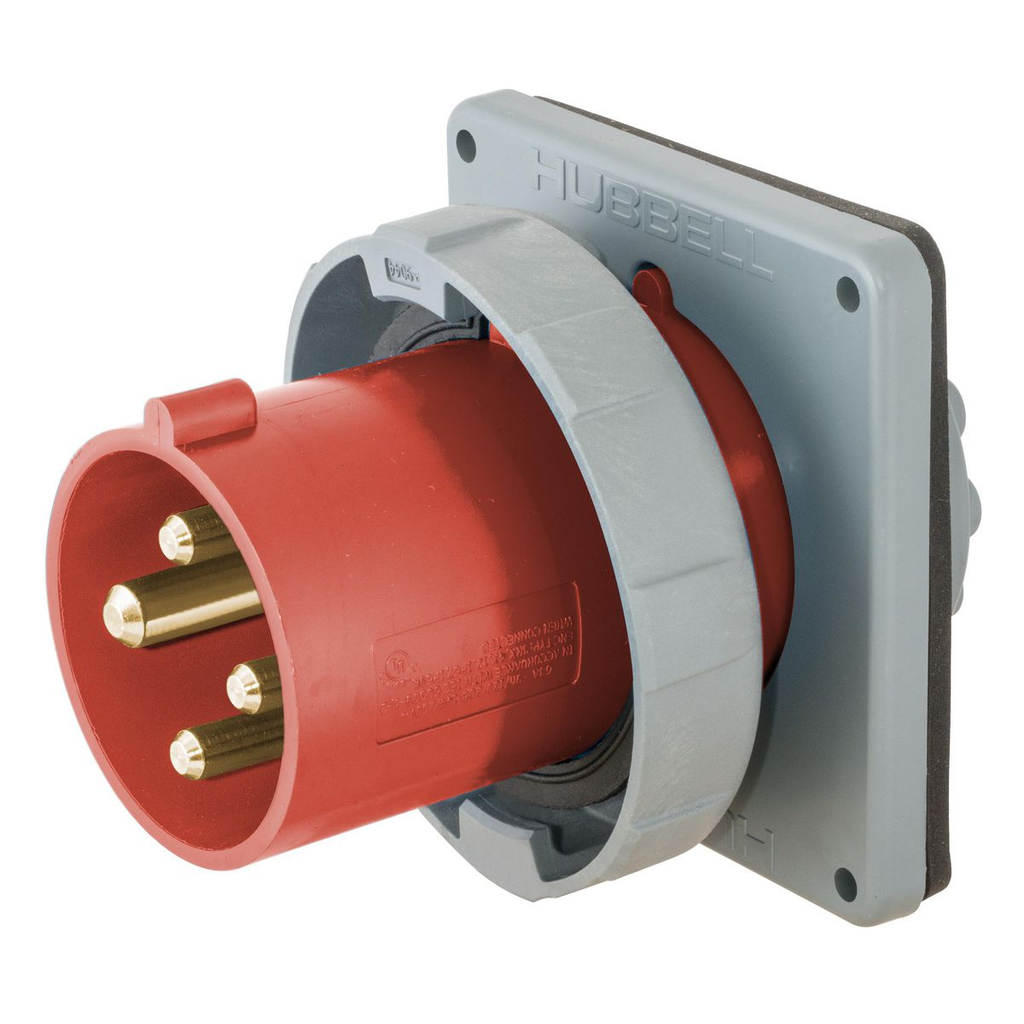

Product image for Hubbell HBL463B6W 63 Amp 380 to 415 Volt 3-Pole 4-Wire Watertight IEC Pin and Sleeve Inlet
Email

Hubbell HBL463B6W 63 Amp 380 to 415 Volt 3-Pole 4-Wire Watertight IEC Pin and Sleeve Inlet

Manufacturer: Hubbell Wiring Device | Catalog # HBL463B6W | Cooper Electric Part # 1251379
$383.35/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Flanged Inlet, 63A 380/415V, 3-Pole 4- Wire Grounding, Terminal Screws, Red, Watertight

Technical Information

Amperage
63 Amp
Applications
For High Ampacity Watertight Connections
Conductor Size
8-2 AWG
Current
63 Amp
Material
Thermoplastic
Mounting Type
Screw
Number of Phases
Multi Phase
Number of Poles
3 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,File E146032,File LR280C,IEC 60309-1 IEC 60309-2,UL
Style
Standard Service
TC Connection
Pressure Screw Terminals
Temperature Rating
-40 degrees C
Type
Watertight, Single
Voltage
380-415 Volt
Wattage
26145 Watt
Wire Count
4
Wire Size
8-2 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Inlets

General Product Info

12-Digit UPC
783585404943
Color
Red
GTiN
00783585404943
Product Series
HBL Heavy Duty
Product UPC
78358540494
Weight
1.85 lb

Dimensions

Height
4.62 Inch
Length
6 Inch
Width
5.25 in

Certifications and Compliance

Certifications
CSA Certified File LR280C For Plugs,CSA Standard C22.2 No. 182.1,Connectors And Inlets,E146033 Plugs And Connectors,File E146032 Receptacles And Inlets,IEC,LR285C For Receptacles,UL Classified To IEC60309-1,UL Listed,UL Listed,UL Standard 498 CSA Certified To CSA Spec. C22.2 No. 182.2 UL Classified To IEC 309-1 And IEC 309-2.,UL Standard UL1682 & UL1686C2
Country of Origin
USA
Features
  • Solid one-piece pins for reliable electrical contact
  • Gasketed sealing ring provides watertight seal
  • Raised collar surrounds each phase pin
  • Watertight
