SQD NQ54L4C Panelboard interior, NQ

Manufacturer: Square-D / Schneider | Catalog # NQ54L4C | Cooper Electric Part # 1250391
$2,055.00 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure

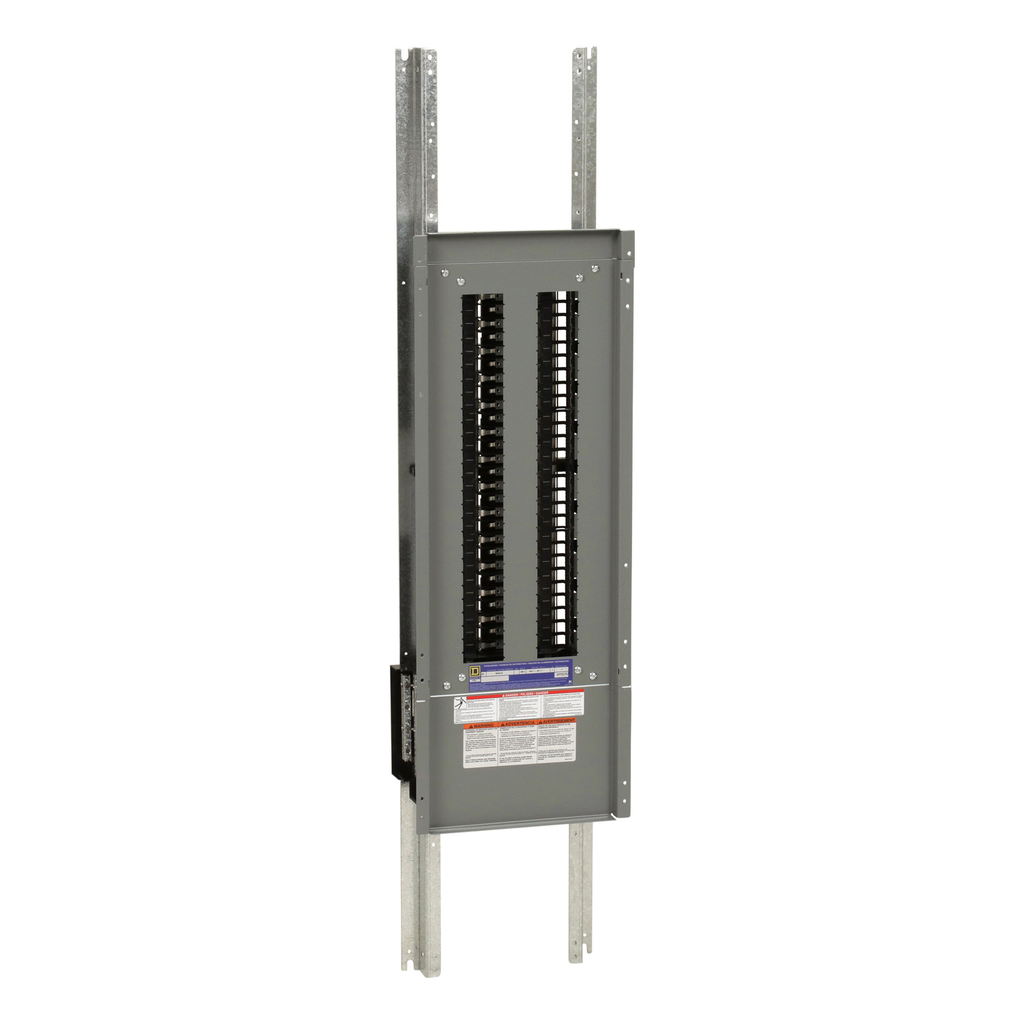

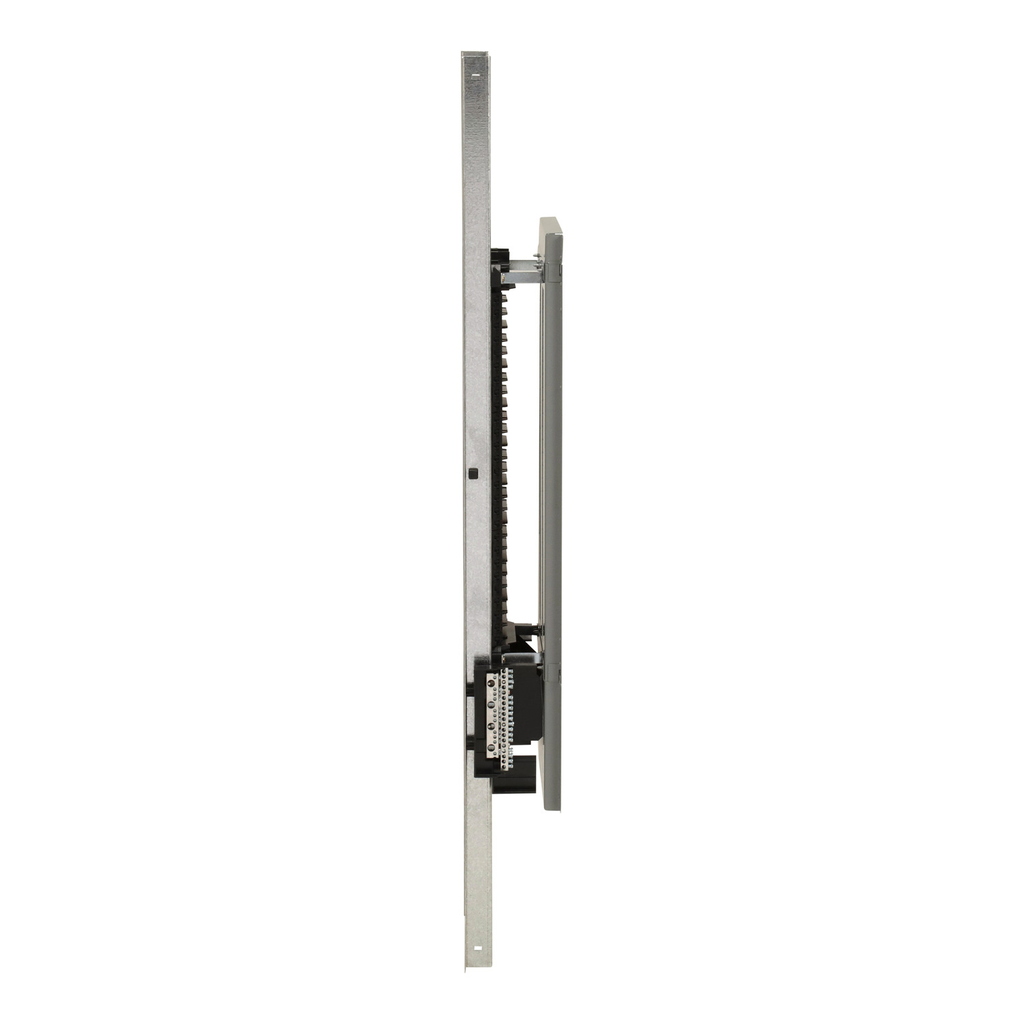

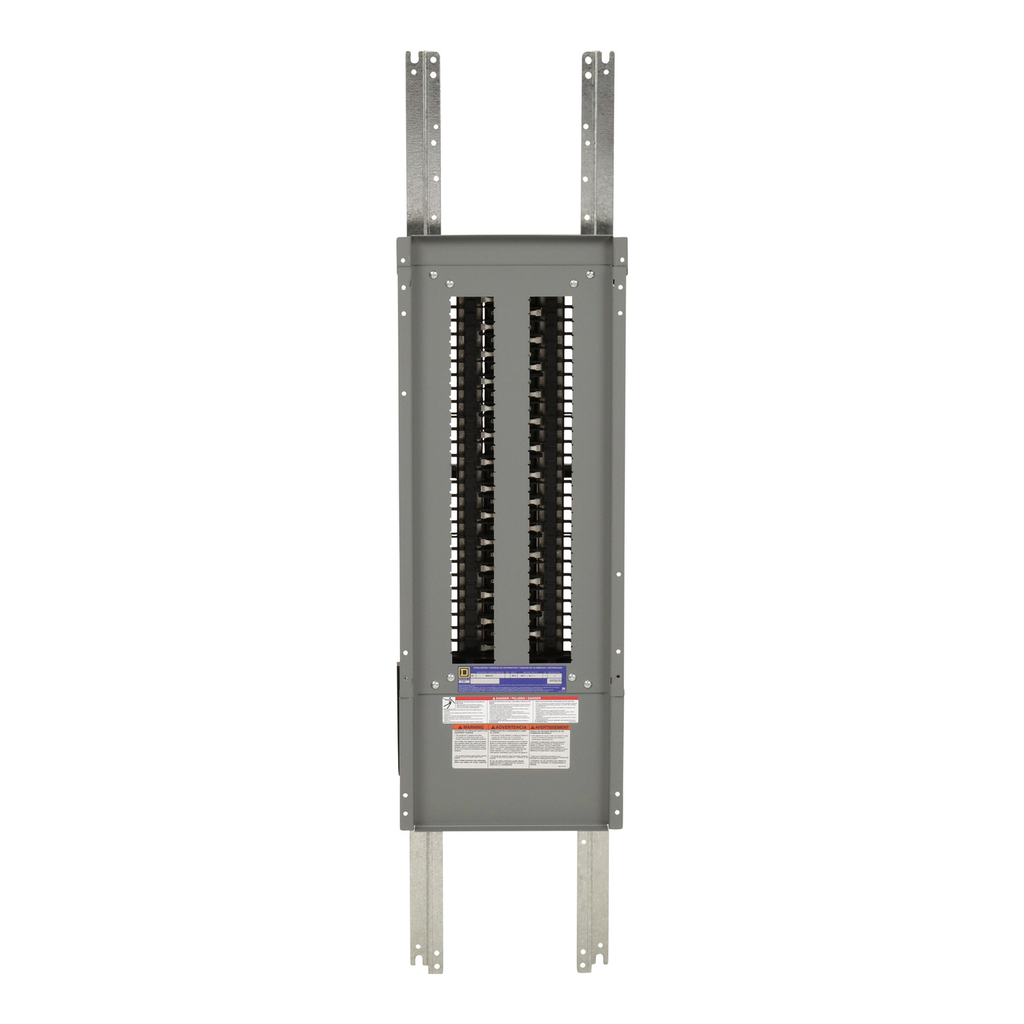

This interior main lugs panelboard is one of the Schneider Electric™ NQ lighting and appliance panelboards. It is a one phase, three wire panelboard with a plated copper bus and tin plated aluminum lugs suitable for aluminum or copper. The phase lugs accept 1-1/0 AWG to 750kcmil or 2-1/0 AWG to 350kcmil conductors, and the neutral lugs accept 1-1/0 AWG to 750kcmil or 2-1/0 AWG to 300kcmil conductors. It has a voltage rating of 240VAC or 48VDC and is rated for 400A line current and 10kA, 22kA, and 65kA interrupted current. It has 54 spaces for bolt on (QOB or QHB) circuit breakers to provide protection for branch circuits. It is compliant with CSA and UL standards.

Technical Information

Amperage
400 Amp
Applications
QOB;QOB-VH;QHB
Circuit Breaker Type
QHB,QOB,QOB-VH
Line Rated Current
400 A
Material
Copper
Net Weight
9.525 kg
Number of Phases
1 Phase
Number of Spaces
54
Size
68 in
Standard
CSA,UL
Type
Interiors
Voltage
240 Volt

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901049081
GTiN
00785901049081
Product UPC
78590104908
Weight
9.525 kg

Dimensions

Enclosure Depth
5.75 in
Enclosure Height
68 in
Enclosure Wdth
20 in
Height
68 Inch
Width
20 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
Features
  • Ready to install interior assembly
  • Field convertible to top or bottom feed
  • Available as main lug or main breaker
  • Interiors accept QO(VH) plug in and QOB(VH) bolt on circuit breakers
  • Top- or bottom-feed interiors accept plug-on or bolt-on branch circuit breakers
  • UL Listed and CSA rated to 600 A at 240, 208Y/120, and 120/240 Vac
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Accessory Products
  • NQFTL4H
  • NQN6CU
  • NQFP15
