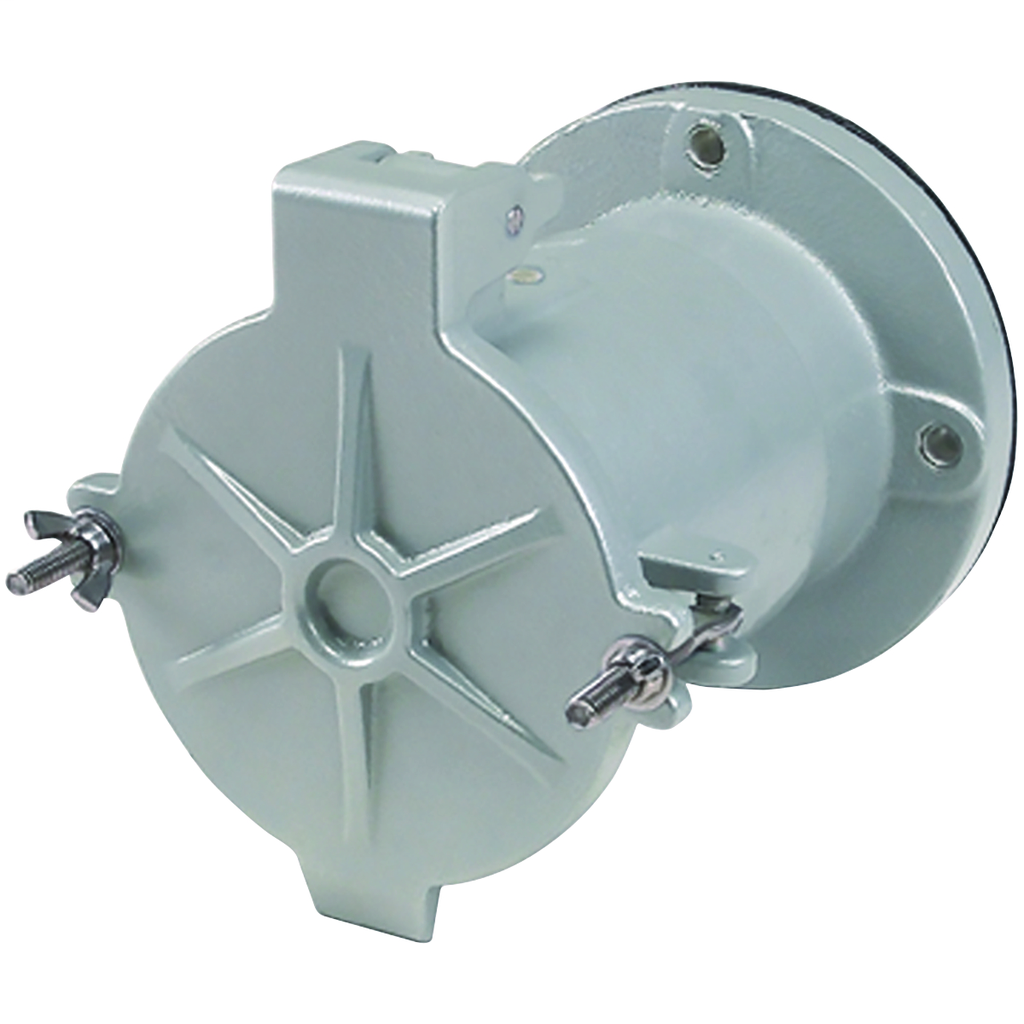

Product image for Killark VR20312 200A 3 Pole 3 Wire Receptacle Assembly
Email

Killark VR20312 200A 3 Pole 3 Wire Receptacle Assembly

Manufacturer: Killark | Catalog # VR20312 | Cooper Electric Part # 1249108
$1,663.72/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
200A 3 Pole 3 Wire Receptacle Assembly

Technical Information

Amperage
200 Amp
Applications
VERSAMATE metallic pin and sleeve receptacles are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers, and similar apparatus. Suitable fo
Conductor Size
1 AWG-250 kcmil
Frequency
50-400 Hz
Material
Aluminum,Beryllium Copper,Brass,Stainless Steel
Number of Poles
3 Pole
Number of Wires
3 Wire
Size
7-19/32" H x 6-5/8" W x 7-7/8" D
Style
Style I
Type
Aluminum NEMA 4X metallic receptacle
Voltage
600//250 VAC//VDC
Wire Size
1 AWG-250 kcmil

Manufacturer Information

Brand
Killark Electric
Sub Brand
VERSAMATE

General Product Info

12-Digit UPC
783936833118
Color
Gray
Finish
Baked Epoxy
GTiN
00783936833118
Product UPC
78393683311

Dimensions

Height
7.59 Inch
Length
7.87 Inch
Width
6.83 in

Certifications and Compliance

Country of Origin
USA
Features
  • Patented Breech-Lock cap serves as both flip lid and screw cover.
  • Patented notch in cap arm holds cap open for easy plug insertion or maintenance.
  • Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened.
  • Patented pin design uses slotted spring clip which avoids excessive wear while providing continuous electrical pin to sleeve contact.
  • Increased Safety type box terminals with gripper ribs securely clamp around conductors.
  • Boxes come with a green grounding screw.
Voltage Rating
  • 600 VAC
  • 250 VDC
