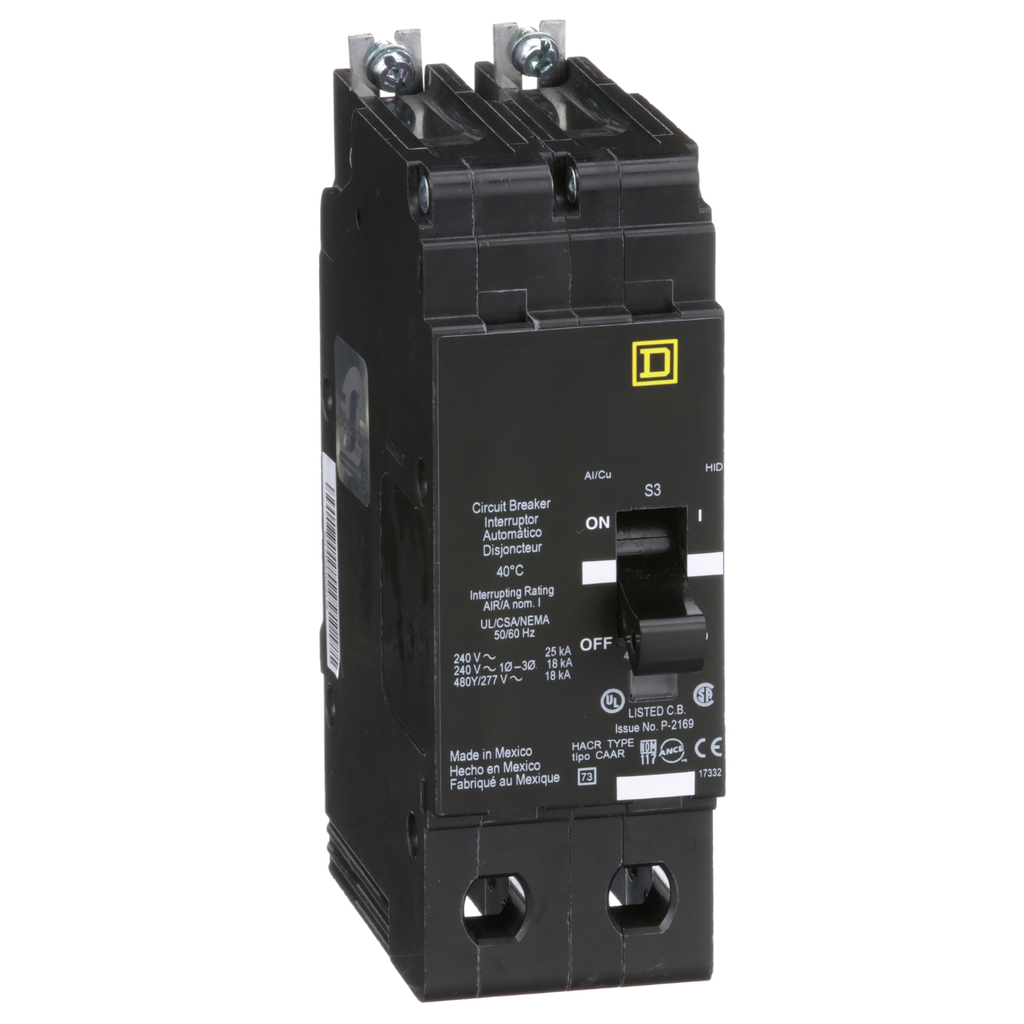

Product image for Square D EDB24035 2-Pole 35 Amp 480 Star/277 Volt Thermal Magnetic Miniature Circuit Breaker
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Image thumbnail 10
Email

Square D EDB24035 2-Pole 35 Amp 480 Star/277 Volt Thermal Magnetic Miniature Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # EDB24035 | Cooper Electric Part # 124902
$536.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer super

Technical Information

Amperage
35 Amp
Applications
HID rated;HACR rated
Frame
E-FRAME
Interrupt Rating
18, 25 kAIC
Line Rated Current
35 A
Module Type
E-Frame
Mounting Type
Bolt-On
Net Weight
3 lb
Number of Poles
2 Pole
Number of Spaces
2
Operating Temperature
40 Adegrees C
TC Connection
AWG 12...AWG 2/0 ALUMINIUM-AWG 14...AWG 2/0 COPPER,LUGS ALUMINIUM
Trip Range
1800 A
Trip Type
Thermal-magnetic
Type
Miniature circuit-breaker
Voltage
277/480 VAC

Manufacturer Information

Brand
Square D
Sub Brand
EDB

General Product Info

12-Digit UPC
785901311027
GTiN
00785901311027
Product UPC
78590131102
Weight
3 lb

Dimensions

Depth
4.05 Inch
Height
5.66 Inch
Length
4.05 Inch
Warranty Length
18 mth
Width
1.96 in

Certifications and Compliance

CA Prop65 Warning
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Certifications
CULus
Country of Origin
Mexico
Electrical Connection
  • lugs aluminium
Related Products
  • NF442L2C
  • NF430L2C
  • NF430L4C
  • NF442L4C
  • NF430L1C
Accessories
  • N150MH
  • N400M
  • HPAFD
  • EDPAF
  • AL100FD
Persona Type Names
  • End User
  • Contractor
  • Original Equipment Manufacturer
Accessory Products
  • N150MH
  • N400M
  • HPAFD
  • EDPAF
  • AL100FD
Persona Type Ids
  • EU
  • LC
  • OM

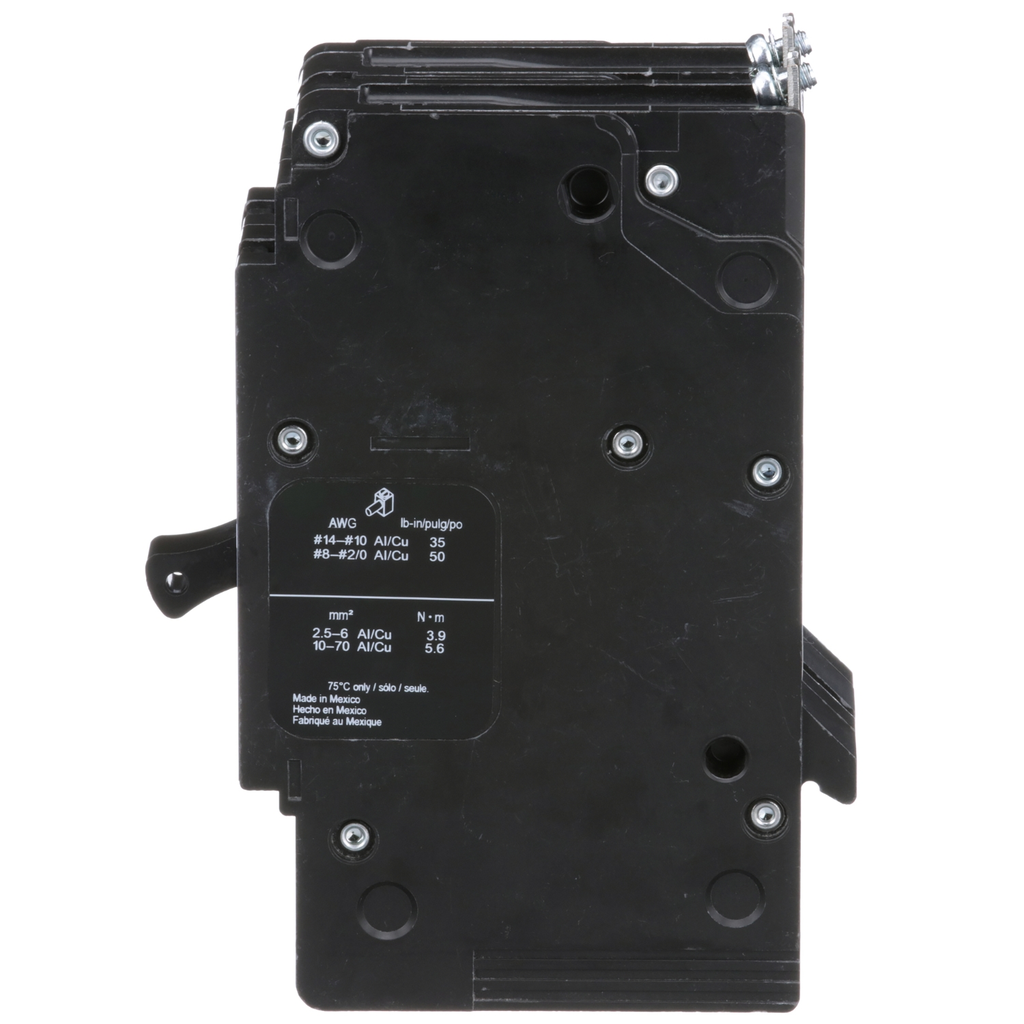

Tightening Torque
  • 3.9-3.9 N.m 2.5-6 mm² (AWG 14...AWG 10)
  • 5.6-5.6 N.m 10-70 mm² (AWG 8...AWG 2/0)
AWG Gauge
  • AWG 12...AWG 2/0 aluminium
  • AWG 14...AWG 2/0 copper
Product Destination
  • NF panelboard
UE Rated Operational Voltage
  • 480Y/277 V AC
