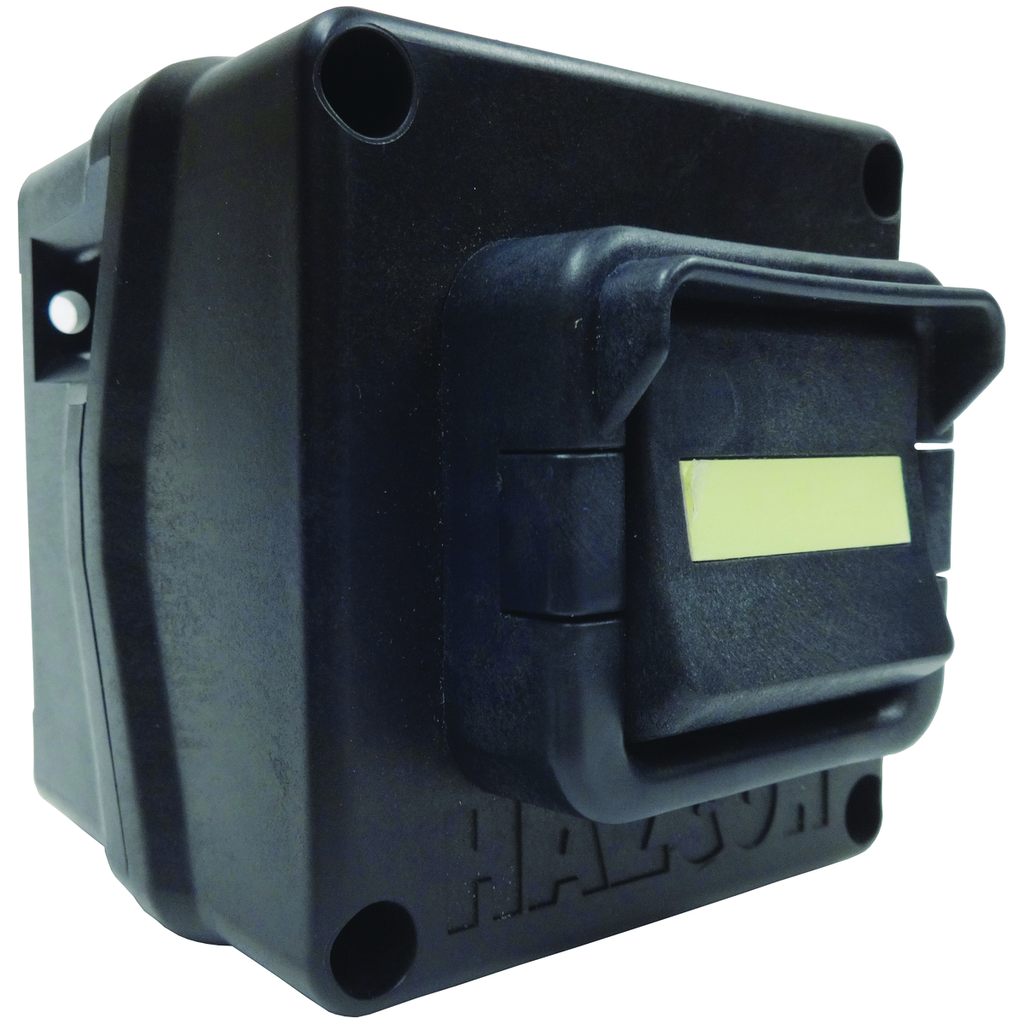

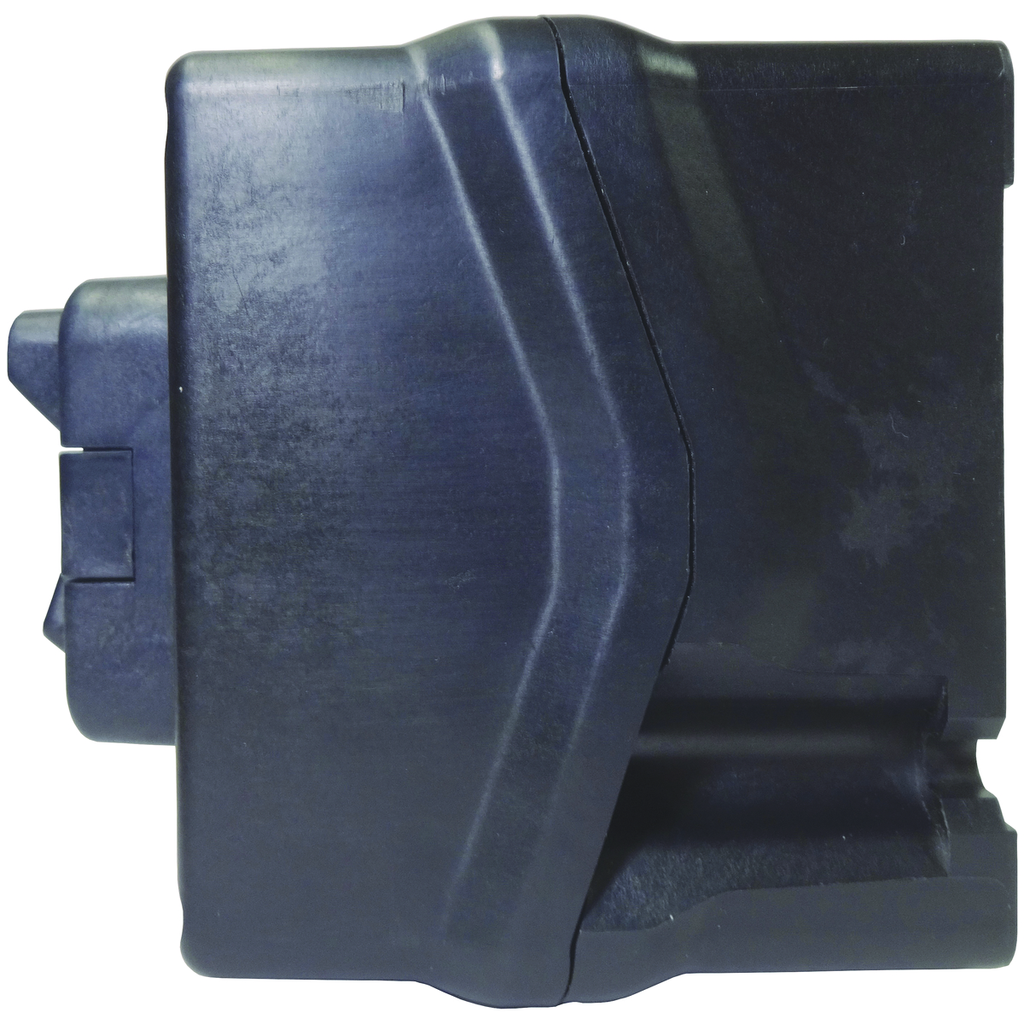

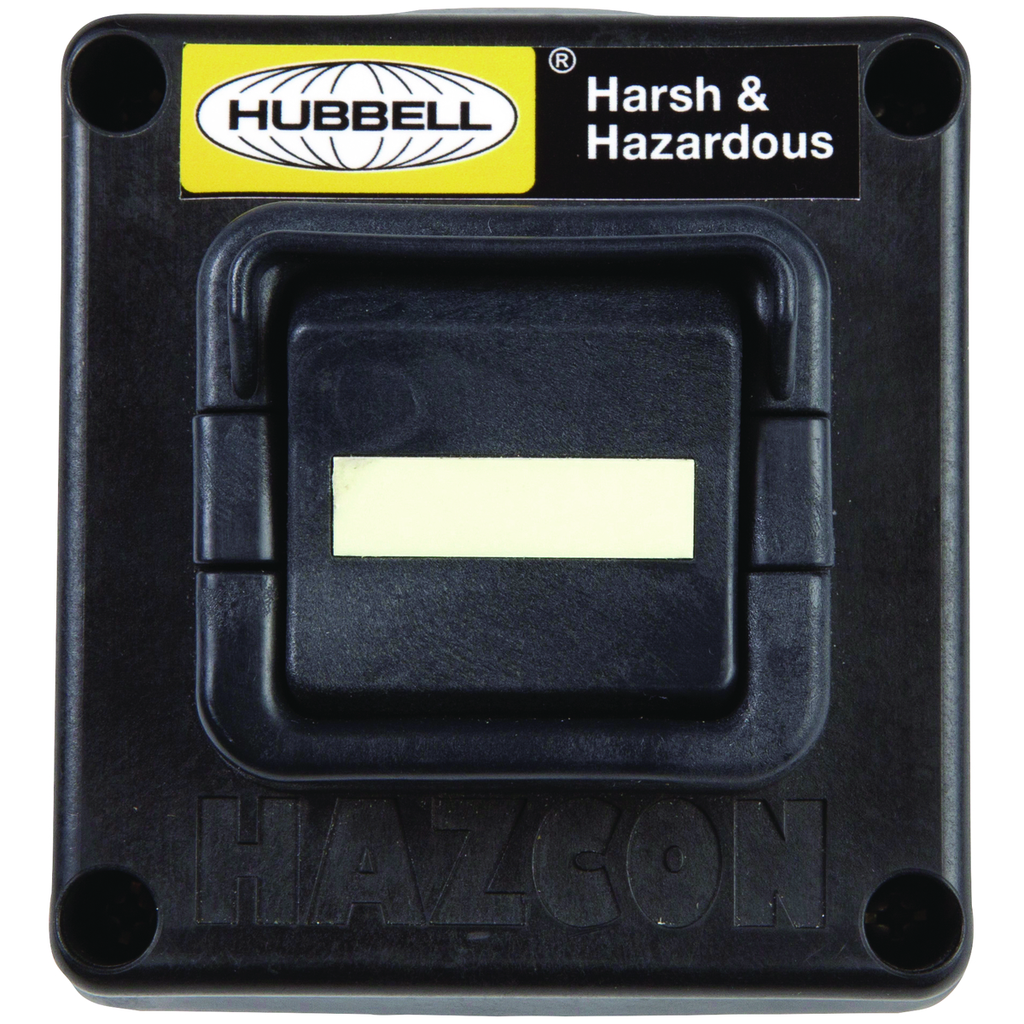

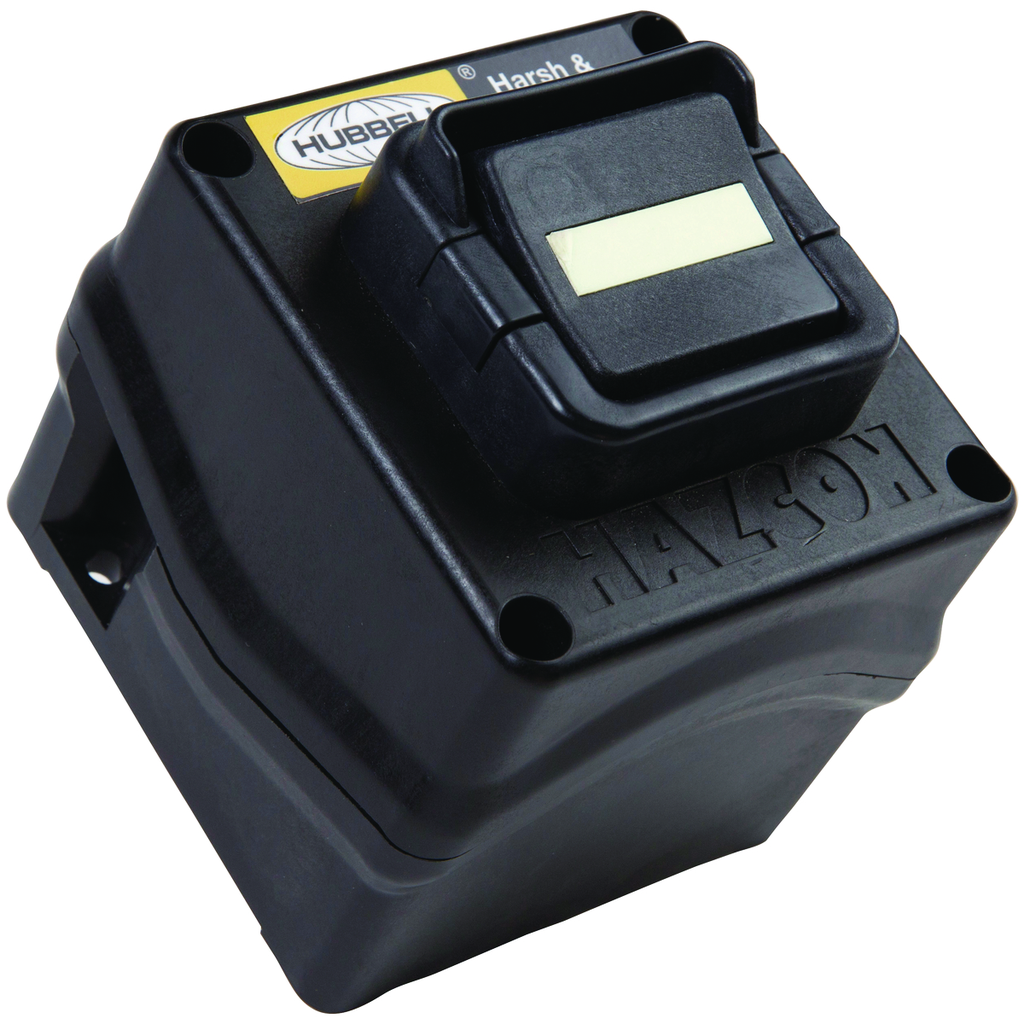

KLRK HKH1AND2RS4K8 CNTL STA

Manufacturer: Killark | Catalog # HKH1AND2RS4K8 | Cooper Electric Part # 1247932
$1,146.33/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual
HKH Rocker Switch, Maintained, 2 NO - Din Rail Mount- 3/4" SS Hub - Non-Metallic 1a

Technical Information

Amperage
20 Amp
Frequency
50/60 Hz
Horsepower
1 hp
Hub Size
3/4 in
Material
Plastic
Mounting Type
Wall
NEMA Size
12,13,3,4,4X

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Killark

General Product Info

12-Digit UPC
783936132341
GTiN
00783936132341
Product UPC
78393613234
Weight
0.75 lb

Dimensions

Height
4-3/4 Inch
Length
6-1/2 Inch
Width
6.125 in

Certifications and Compliance

Country of Origin
China
Features
  • Size 1 Control Stations available as 1a, 1b, & 1c as standard catalog number offerings for 1, 2 & 3 device openings and will accept 2-M20 entries in either end.
  • Ammeters available in 1b & 1c.
  • Size 2 Enclosures available as 2a & 2c for 2, 4 & 6 device entries in cover with ability to accept 2-M25 entries in either end.
  • Operating Temperature of -50C to +60C.
  • Explosion Protected contact blocks 690 VAC N.O. & N.C. capable of 20 Amps for Switching Duty and HP Ratings up to 1HP.
  • LED Pilot Light modules for 12-250V AC/ DC for UL applications. 12-254V AC/DC for IEC applications.
  • Contacts & Pilot lights can be mounted inside enclosure on Din Rail or in cover to the actuator.
  • Accessories available for Lockout/Tag Out functions made in 316 stainless steel.
  • Killark HKH HAZCON™ Series Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications, ON/OFF functions for Lighting Circuits and more. Utilized in Class 1 Division 2, Class 1 Zone 1 areas where Type 3, 4, 4X, 12 and 13 weather-ingress ratings are required for indoor and outdoor use. Certified for use in the European Union with ratings for IECEx and ATEX in addition to IP66 water ingress protection.
