SQD 9001KR16H6 Emergency stop push-

Manufacturer: Square-D / Schneider | Catalog # 9001KR16H6 | Cooper Electric Part # 1246787
$162.07 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Brochure

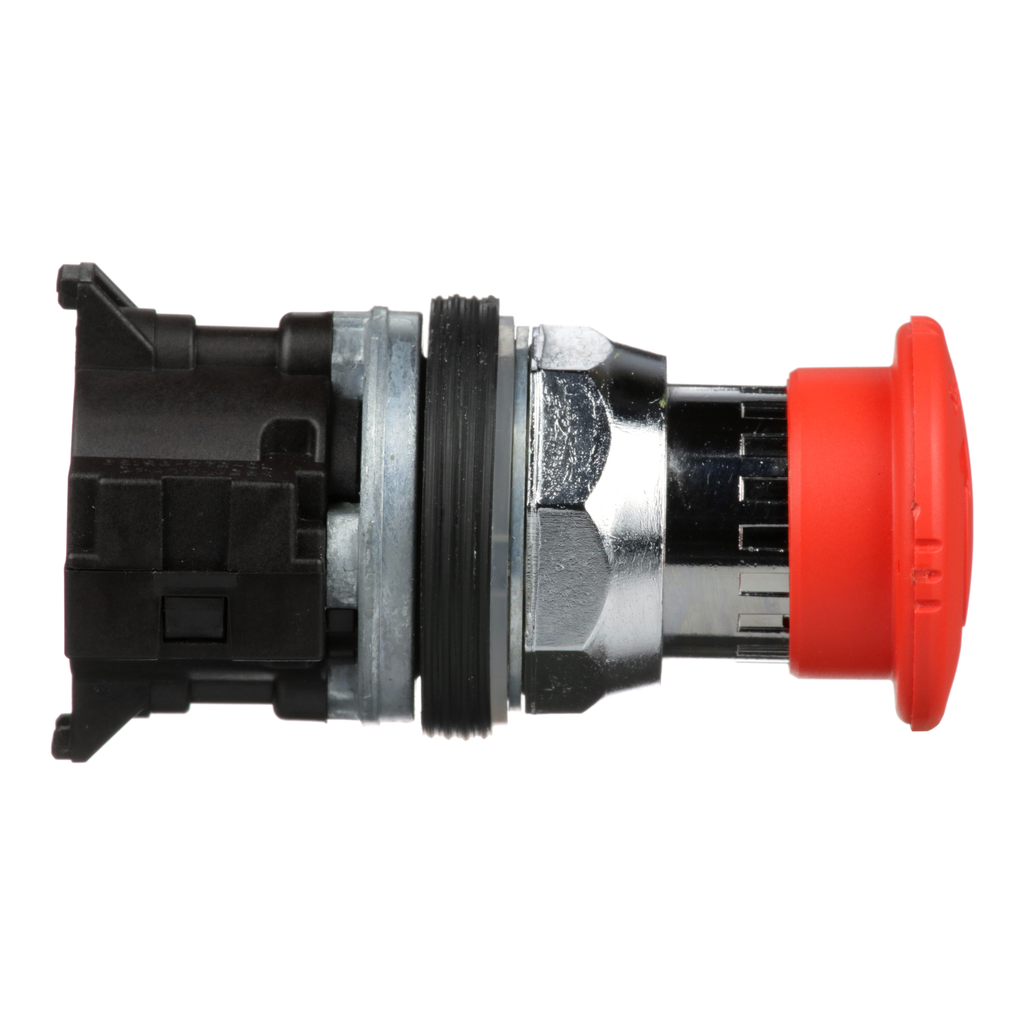

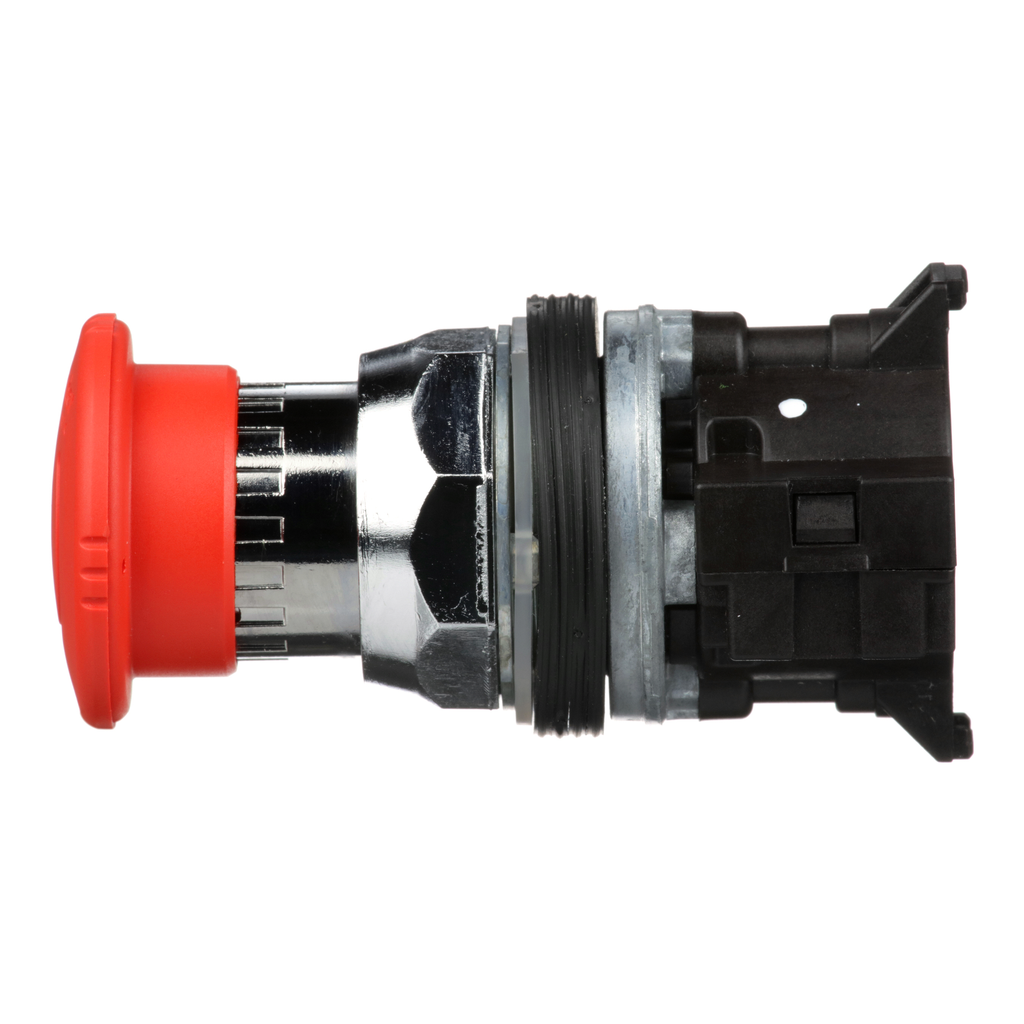

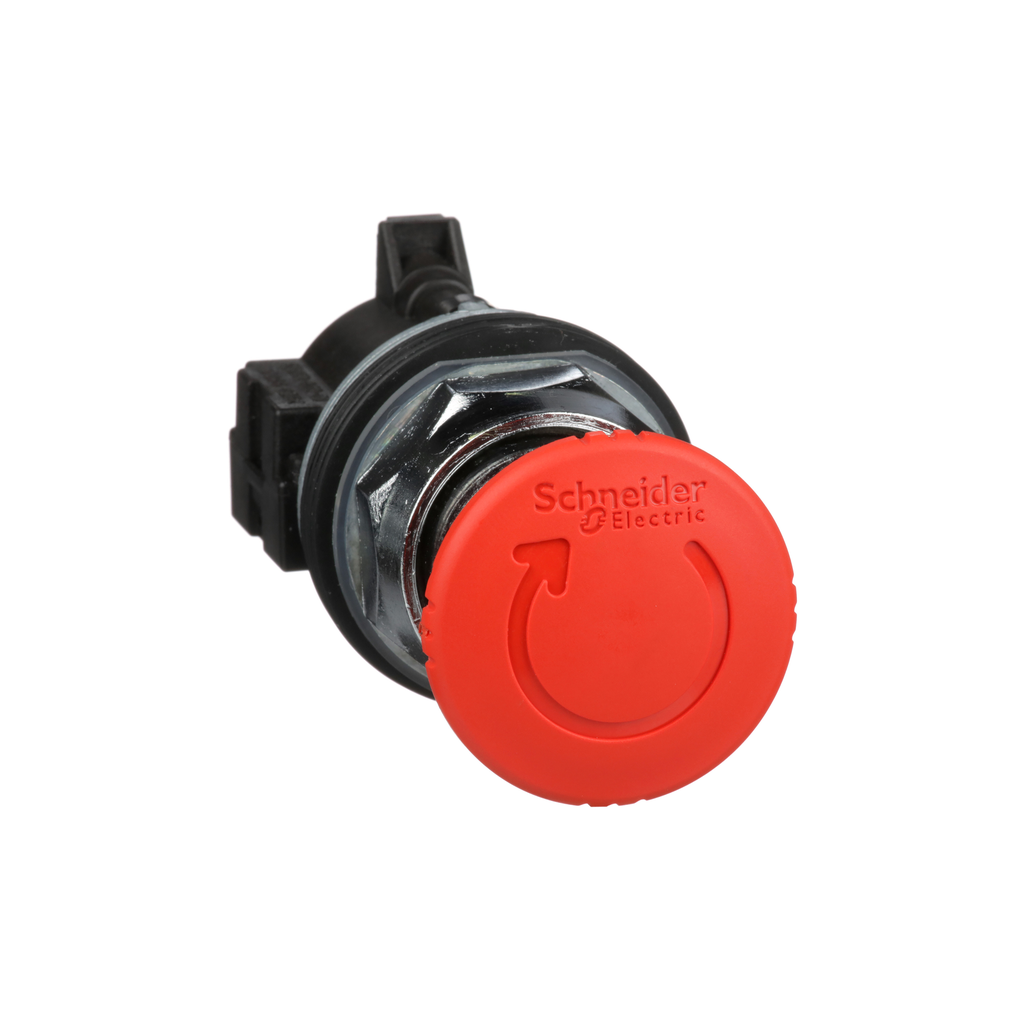

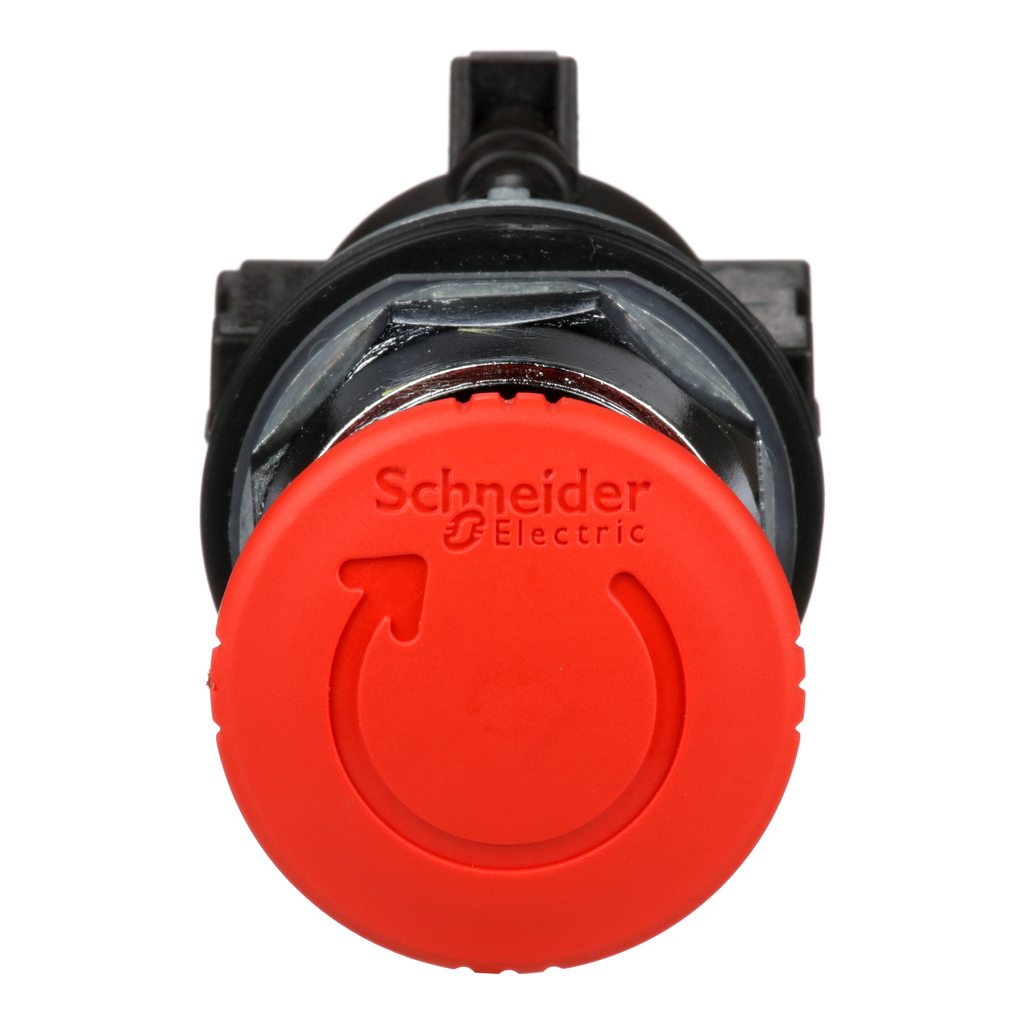

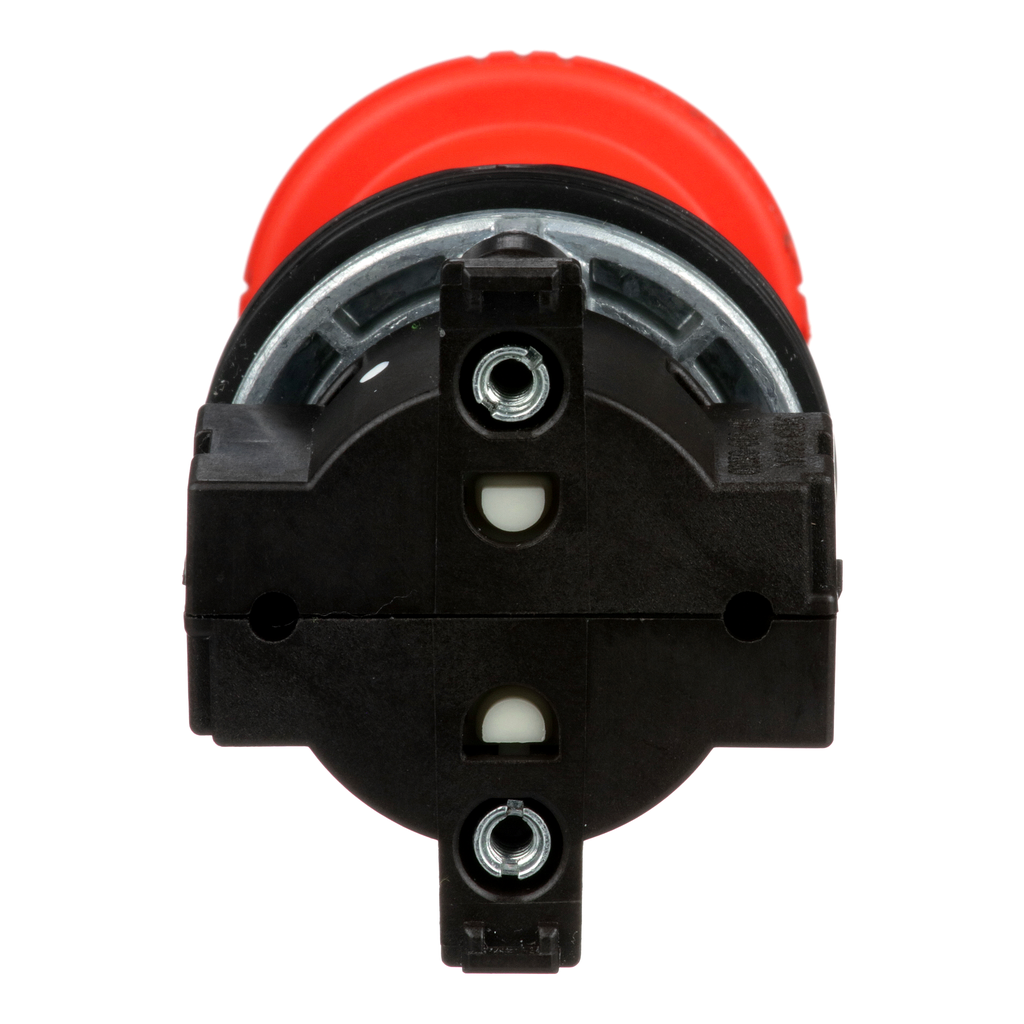

Emergency stop push-button, Harmony 9001K, metal, mushroom 40mm, red, 30mm, 2 positions, turn to release, 1 NC

Technical Information

Action
TRIGGER ACTION (TURN TO RELEASE)
Actuator
2 positions
Amperage
3 Amp 240 V, AC-15, A600-Q600 NEMA-0.55 Amp 125 V, DC-13, A600-Q600 NEMA
Bezel Material
Metal
Contact Configuration
1 NC
Contact Material
Silver Alloy
Enclosure
NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 6
Net Weight
0.141 kg
Operating Temperature
-25-70 Adegrees C
Size
30 mm
Standard
CSA C22.2 No 14,IEC 60204-1, For Emergency Stop Devices If Used With Emergency Stop Legend Plate Type 9001KN,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,IEC 60947-5-5,ISO 13850, For Emergency Stop Devices If Used With Emergency Stop Legend Plate Type 9001KN,JIS C 4520,JIS C 852,UL 60947-5-5
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS, 1 X 0.22...2 X 1.5 MMA EN/IEC 60947-1
Type
Emergency stop push-button

Manufacturer Information

Brand
Schneider Electric
Sub Brand
9001K

General Product Info

12-Digit UPC
785901816577
Color
Red
GTiN
00785901816577
Product UPC
78590181657
Weight
0.141 kg

Dimensions

Height
40 mm
Warranty Length
18 mth
Width
40 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
NEMA,UL 508
Country of Origin
Mexico
Features
  • Improves security thanks to finger-safe contact blocks and light modules
  • Single screw Contact Block Fastening
  • Large metal set of accessories to customize your product
  • Automatic self-grounding operators without additional wiring
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
