Lutron PD-5NE-BL Caseta ELV Dimmer 250

Manufacturer: Lutron | Catalog # PD-5NE-BL | Cooper Electric Part # 1244834
$169.70/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Controls 250 W LED (screw-base), 500 W incandescent/halogen, 400 VA (300 W) magnetic low-voltage, 500 W electronic low-voltage, 400 W Hi-lume 1 percent 2-wire LED driver, or 3.3 A Tu-Wire fluorescent ballast loads. Simple, intuitive design with on, off and raise/lower buttons. Provides true dimming from each location with Pico wireless remotes.

Technical Information

Actuator
Push-button
Applications
Lighting
Connection Type
Wire Leads,Wire Leads
Enclosure
Plastic
Enclosure Material
Plastic
Frequency
50 Hz
Insulation Material
Plastic
Material
Metal
Mounting Type
Wallbox
Number of Poles
1 Pole
Operating Temperature
32 To 104 degrees F
Size
75 in
Standard
CUL,FCC,ICC,IFTEL,NOM,UL
TC Connection
Wire Leads
Type
Multi-location/single-pole,Wireless In-wall Dimmer
Voltage
120 Volt
Wattage
500 Watt

Manufacturer Information

Brand
Caseta
Sub Brand
Caseta Wireless

General Product Info

12-Digit UPC
784276217729
Color
Black
Environmental Conditions
0 To 90% Humidity,Indoor Use Only,Non-condensing
Finish
Gloss
GTiN
00784276217729
Product UPC
78427621772

Certifications and Compliance

Country of Origin
Mexico
Features
  • Includes: One (1) Caseta Wireless ELV+ dimmer switch; Gloss finish
  • Works with up to 250W of dimmable LED, 500W of incandescent/halogen or ELV, or 400W MLV; Phase-Select available
  • Neutral Required; 120V
  • Create a 3-way and add a 2nd switch anywhere by pairing with a mountable Pico remote (PJ2-WALL-WH-L01 sold separately); Cannot be wired to existing 3-way switches
  • Add a Lutron Smart Hub to connect with Alexa, Apple Home, the Google Assistant, Ring, Serena Shades, SONOS, and more
  • Lutron Clear Connect does not rely on wi-fi and is ultra-fast and ultra-reliable (avoid repeat service calls)
  • Preset button allows you to turn your lights on to your preferred predetermined level
  • Pair up to ten (10) Pico Remotes or Caseta motion sensors to one (1) Lutron Caseta dimmer switch (limitations reflect when no Lutron Smart Hub installed)
  • Control at the wall, with a Pico smart remote, with a phone, or voice assistant (Lutron Smart Hub, L-BDG2-WH, required for phone and voice assistant control)
  • Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
  • Controls 250 W LED (screw-base), 500 W incandescent/halogen, 400 VA (300 W) magnetic low-voltage, 500 W electronic low-voltage, 400 W Hi-lume 1 percent 2-wire LED driver, or 3.3 A Tu-Wire fluorescent ballast loads

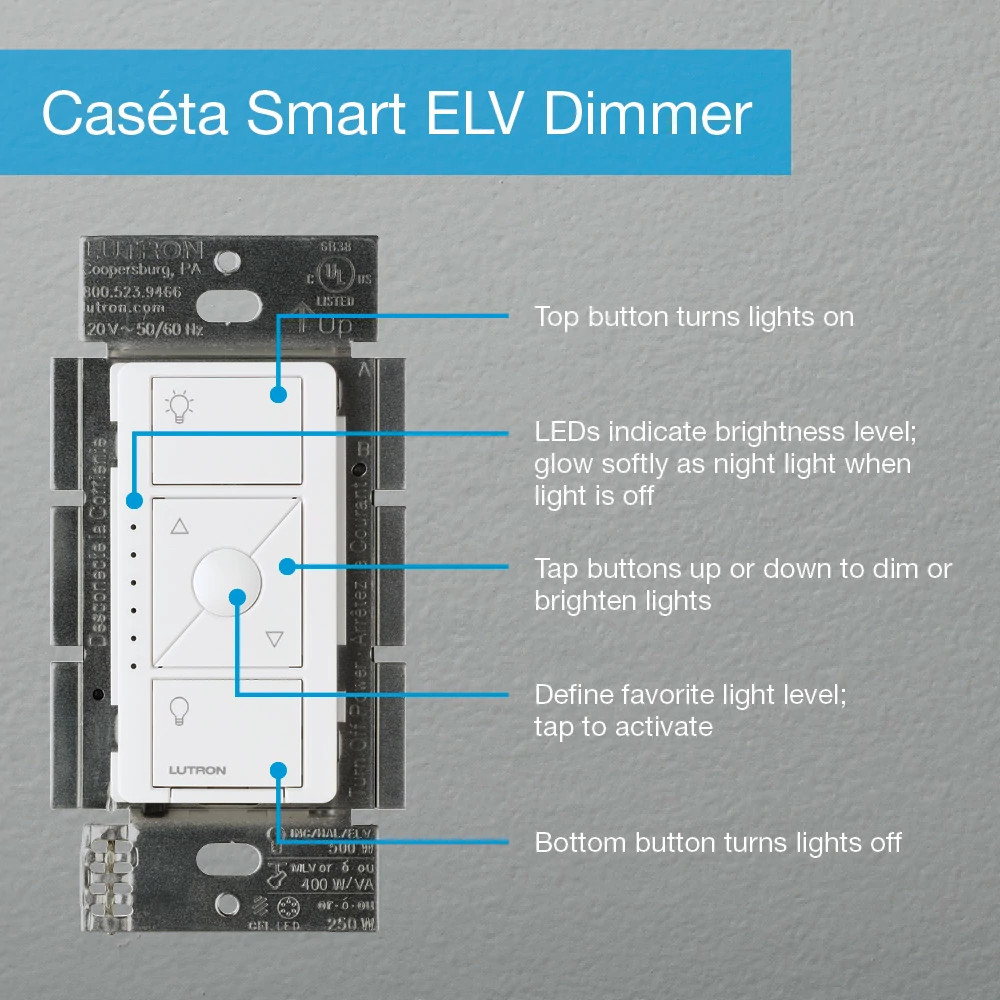

  • Simple, intuitive design with on, off and raise/lower buttons
  • Provides true dimming from each location with Pico wireless remotes.
Standards and Certifications
  • CULUS
  • NOM
  • FCC
  • UL
  • cUL
  • ICC
  • IFTEL
