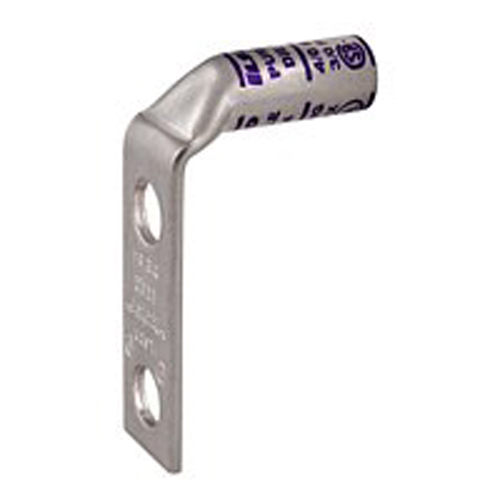

Product image for ILSCO CLNB-2-12-9 CU COMP 2AWG 90DE
Image thumbnail 0
Image thumbnail 1
Email

ILSCO CLNB-2-12-9 CU COMP 2AWG 90DE

Manufacturer: Ilsco | Catalog # CLNB-2-12-9 | Cooper Electric Part # 1244742
$24.57/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Long barrel, standard tang, 1 mounting hole(s), mounting bolt/stud size 1/2 in, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 90. connecting angle, Copper Primary Conductor 2 Str, 2 Sol, Contains DE-OX®, no sight window, Square tang end, flex conductor range 4 G,H,I,K,M,DLO, rated for 35 kV, die color code Brown, primary color Silver, die index I-33,

Technical Information

Applications
Terminating Connector
Barrel Length
1.125 in
Barrel Type
Long
Color Coding
Brown
Conductor Material
Copper
Conductor Type
Flex,Stranded
Connection Type
Compression
Direct Burial?
Yes
Material
Copper
Mounting Hole Size
0.562 in
Number of Holes
1 Hole
Size
L:1.794;W:0.75;H:1.62 IN
Standard
CSA,E2186,UL
Strip Length
30.162 mm
Temperature Rating
90 degrees C
Type
CLN9:LONG BENT TANG 90
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
SureCrimp®

General Product Info

12-Digit UPC
783669660012
Color
Silver
GTiN
00783669660012
Product UPC
78366966001
Weight
0.057 lb

Dimensions

Height
1.62 Inch
Inside Diameter
0.312 in
Length
1.794 Inch
Outside Diameter
0.421 in
Width
0.75 in
