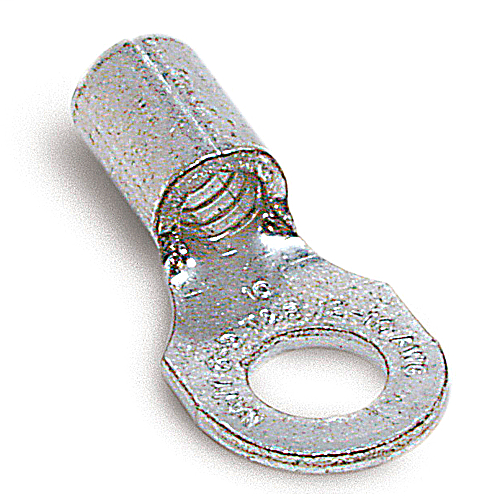

Product image for Thomas & Betts B14-14 18 to 14 AWG 1/4 Inch Stud Metallic Electrotinned Copper Non-Insulated Ring Terminal
Image thumbnail 0
Image thumbnail 1
Email

Thomas & Betts B14-14 18 to 14 AWG 1/4 Inch Stud Metallic Electrotinned Copper Non-Insulated Ring Terminal

Manufacturer: ABB | Thomas & Betts | Catalog # B14-14 | Cooper Electric Part # 124304
$182.95/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Friday 8:00am ET
100 available

For Delivery

Order by Friday 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
Product Spec Sheet

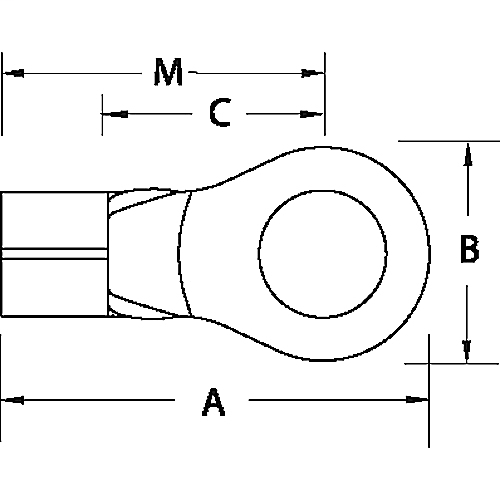

Non-Insulated Ring Terminal, Length .93 Inches, Width .50 Inches, Bolt Hole 1/4 Inch, Wire Range #18-#14 AWG, Copper, Tin Plated

Technical Information

Barrel Type
Serrated
Conductor Size
18-14 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Type
Non-Insulated
Material
Copper
Stud Size
1/4 in
Temperature Rating
150 degrees C
Terminal Type
B
Type
Short Sleeve
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210803289
Color
Metallic
Finish
Tin Plated
GTiN
05414363148401
Product UPC
78621080328
Used With
Round Conductors

Dimensions

Thickness
.03 in
Certifications
  • UL
  • CSA
Features
  • These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
