SQUARED RSB2A080B7S Interface plug

Manufacturer: Square-D / Schneider | Catalog # RSB2A080B7S | Cooper Electric Part # 1243001
$11.59/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

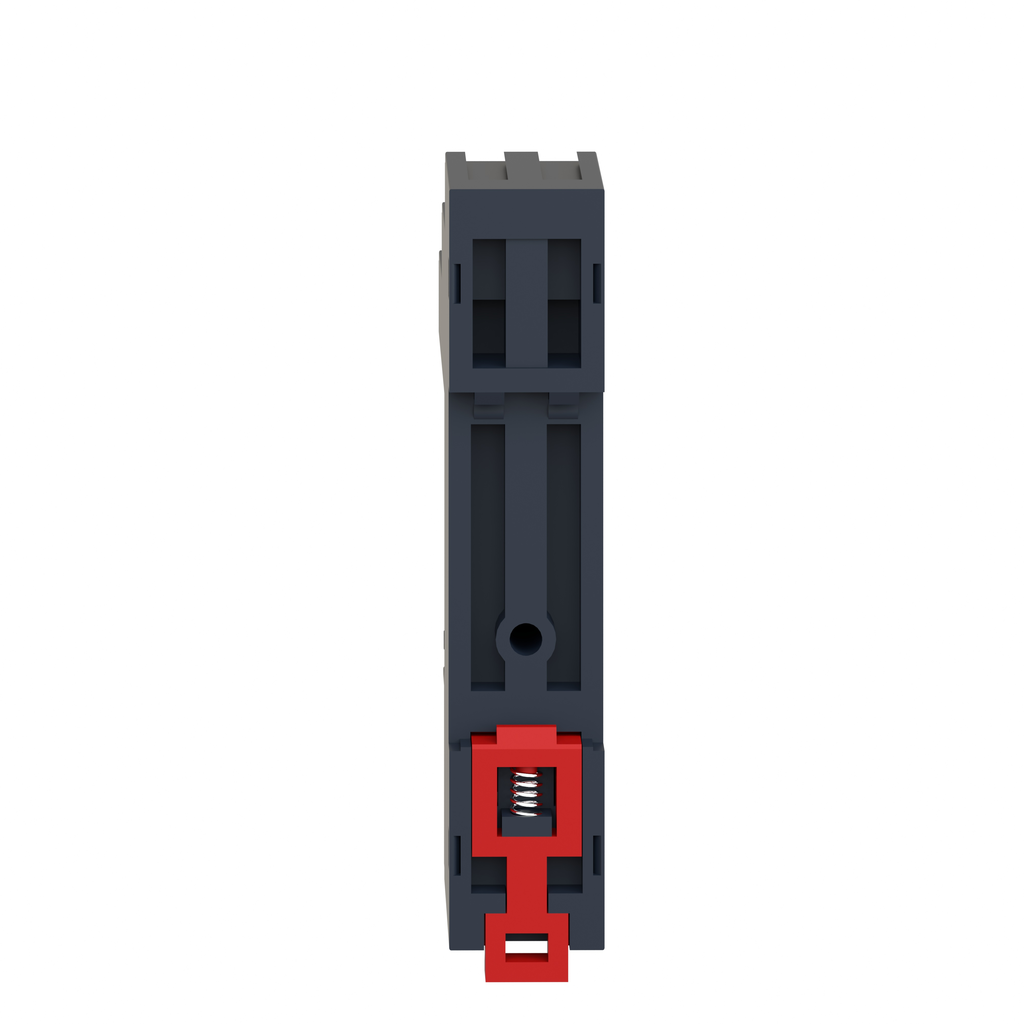

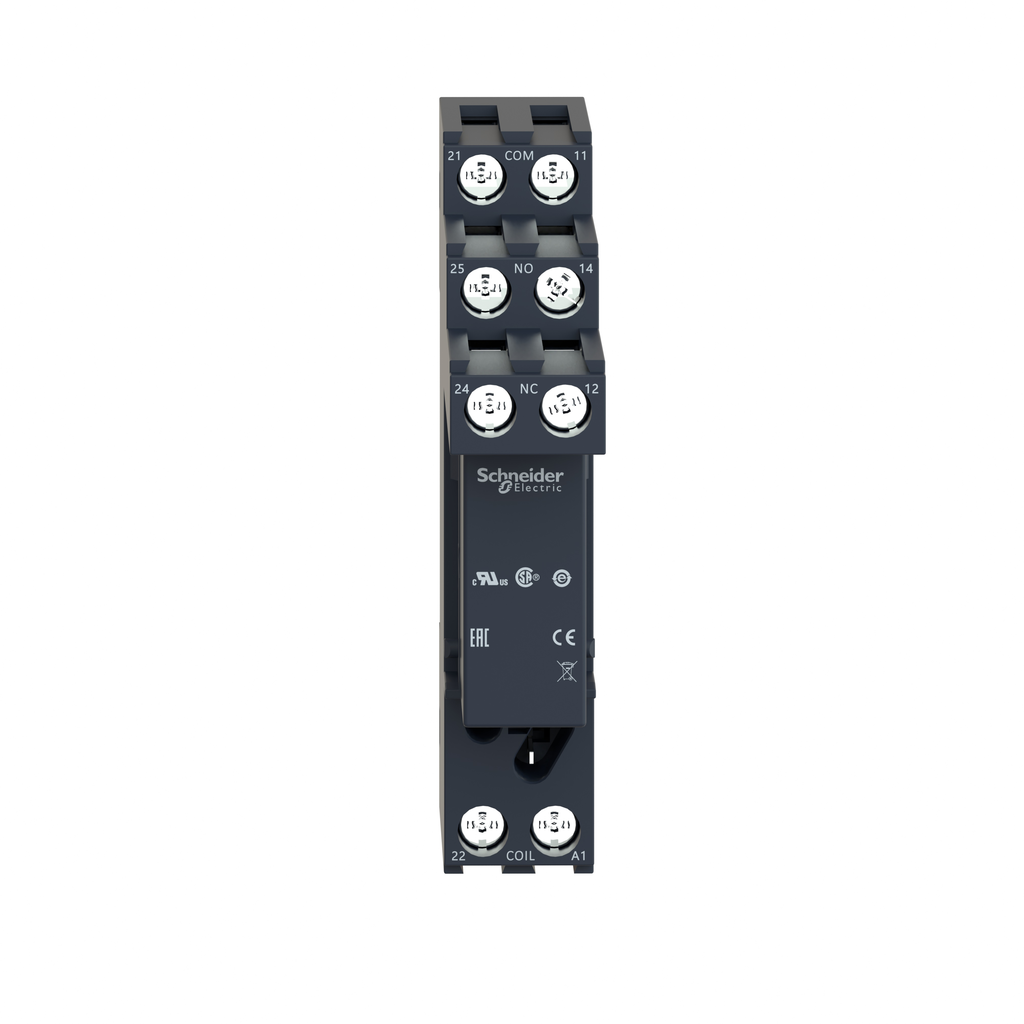

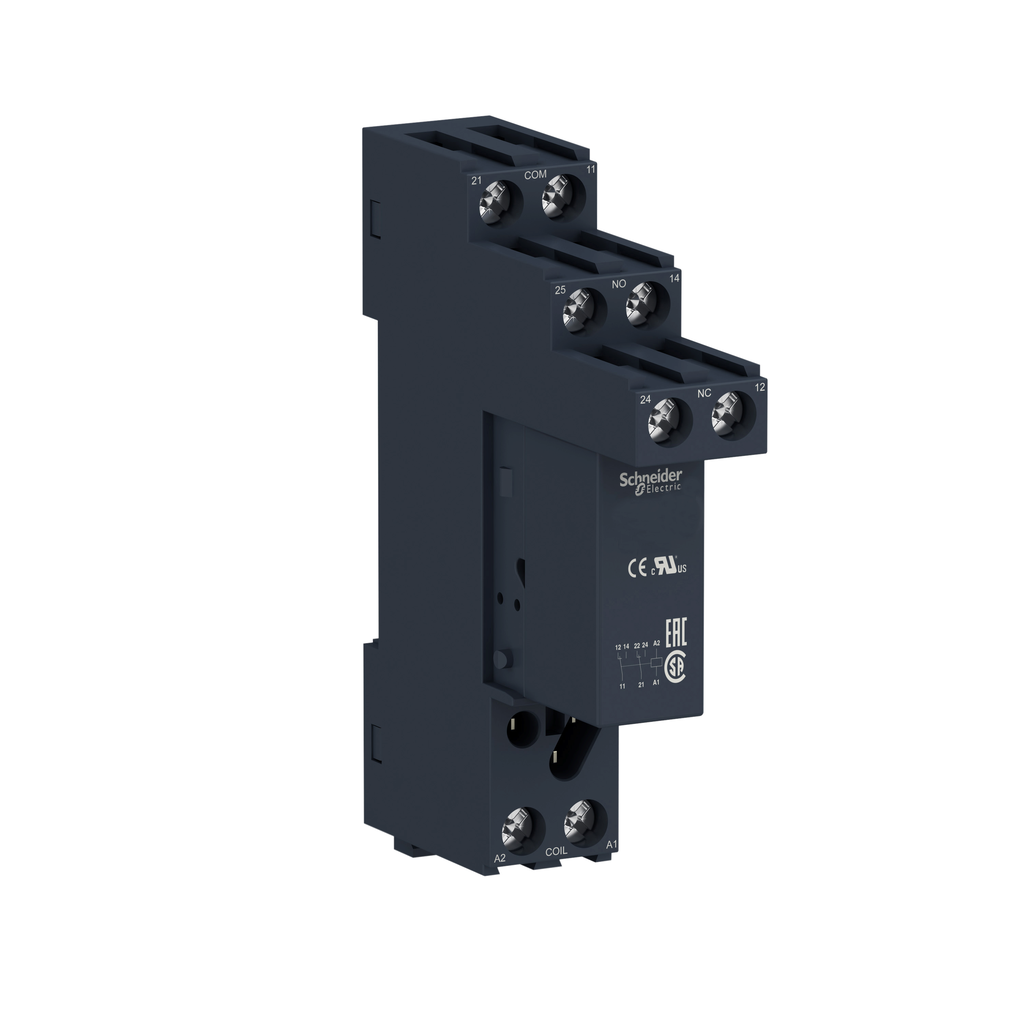

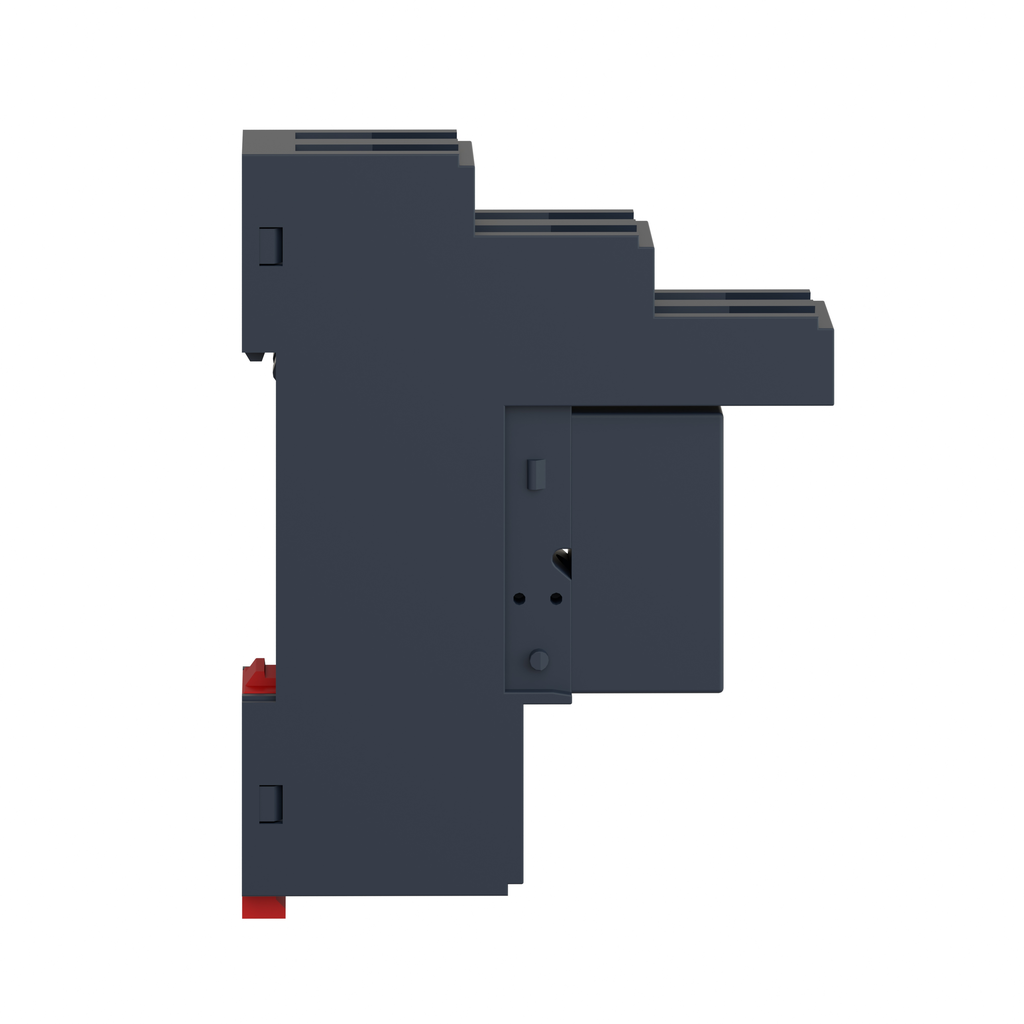

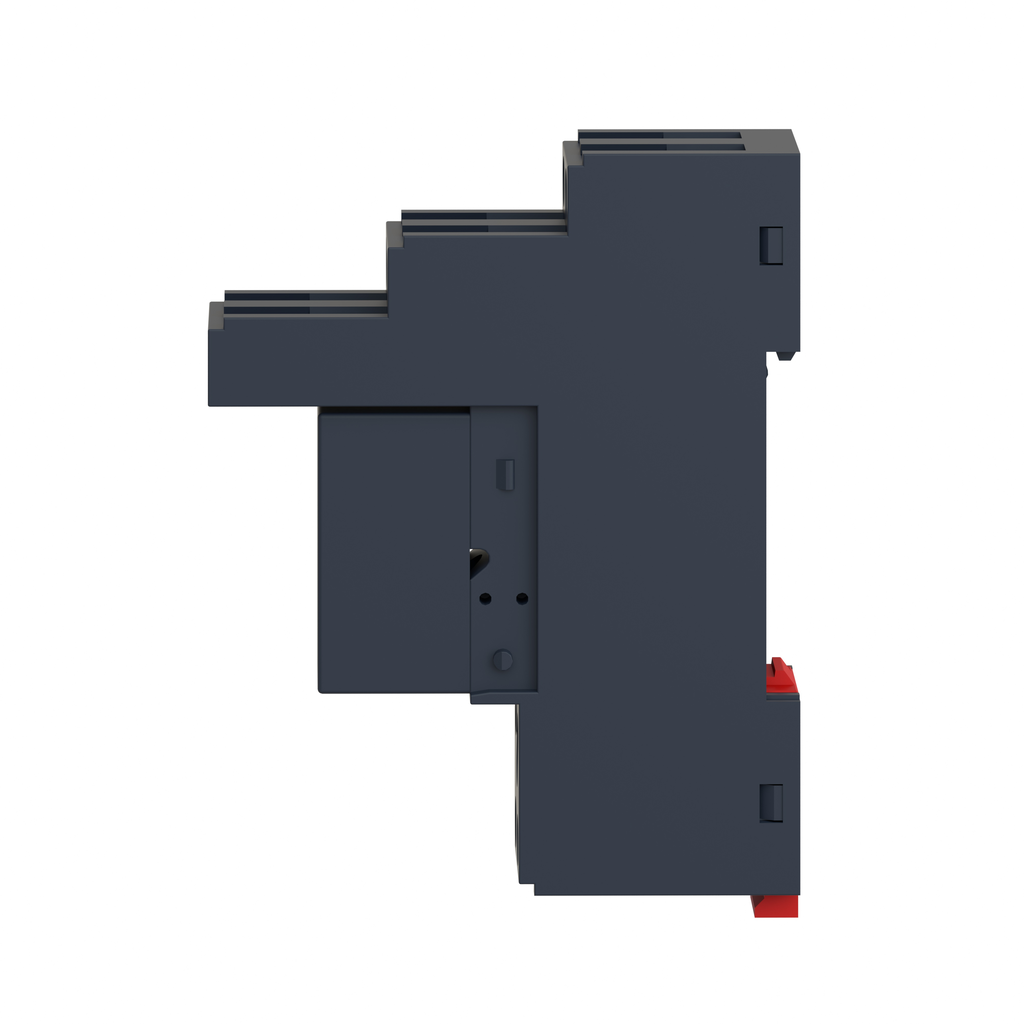

This RSB interfacing plug-in relay is part of the range of electromechanical relays Harmony. It is equipped with a socket. 0 It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. It has a control coil voltage of 24V AC and has 2 changeover contacts double pole double throw with a rating of 8A. Its protection index is IP40. 0 0 0 Conforming to IEC standards, UL and CSA certified, this relay is suitable for universal use. 0 0 0 0 0 0

Technical Information

Amperage
4 Amp AC-1/DC-1) NC IEC-8 Amp AC-1/DC-1) NO IEC,8 Amp 250 V AC-8 Amp 28 V DC
Contact Configuration
2 C/O
Contact Material
Silver Alloy
Control Type
Without push-button
Enclosure
IP40
Line Rated Current
8 A
Operating Cycles
<= 600 Cycles/hour Under Load,<= 72000 Cycles/hour No-load
Operating Temperature
-40-70 Adegrees C AC)--40-85 Adegrees C DC)
Resistance
400 OHM (AC) AT 20 C +/- 15
Standard
CSA C22.2 No 14,EN/IEC 61810-1,UL 508
Storage Temperature
-40-85 degrees C
TC Connection
FLAT PINS
Type
Plug-in relay;Flat
Voltage
26.4 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
RSB

General Product Info

12-Digit UPC
785901639152
GTiN
03389110254907
Product UPC
78590163915

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,GOST,UL
Country of Origin
France
