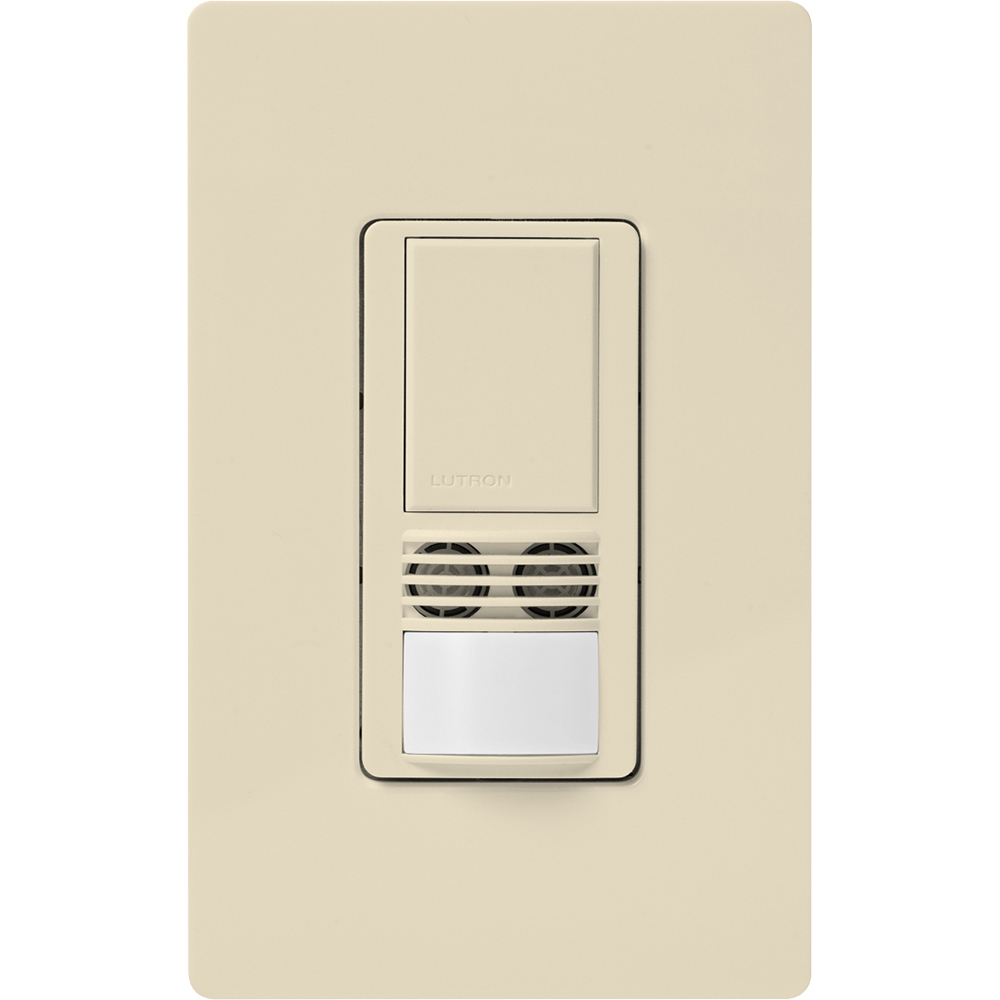

Product image for LUT MS-B102-ES OBS MAR 22-MAESTRO 1
Email

LUT MS-B102-ES OBS MAR 22-MAESTRO 1

Manufacturer: Lutron | Catalog # MS-B102-ES | Cooper Electric Part # 1241329
$99.30/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
6A lighting per circuit, 4.4A fan, XCT Dual Technology occupancy sensor, single pole/3-way/multi-location, 120-277V, neutral required

Technical Information

Amperage
6 Amp
Applications
Lighting
Body Material
Plastic
Enclosure
Plastic
Enclosure Material
Plastic
Indicator
Smart ambient light detection (ALD)/Fixed ambient light detection
Mounting Type
Wallbox
Operating Temperature
0 degrees C
Power Supply
120 V
Sensing Range
900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
Standard
CUL,NOM,UL
Type
Multi-location/3-way/single-pole,Occupancy Sensor Switch,Single-circuit
Voltage
120-277 Volt

Manufacturer Information

Brand
Lutron Electronics Company
Sub Brand
Maestro

General Product Info

12-Digit UPC
784276079280
Environmental Conditions
0 To 90% Humidity,Indoor Use Only,Non-condensing
GTiN
00784276079280
Product UPC
78427607928

Certifications and Compliance

Country of Origin
China
Features
  • Applies Lutron's exclusive XCT Technology (Dual Tech) to the ultrasonic as well as the passive infrared technology in this sensor to create a product that can detect very fine motion, such as typing
  • Includes all of the great features found in the rest of the Maestro sensor family, including: adaptive relay switching, smart ambient light detection, and simple button presses for changing settings
  • XCT technology for major, minor, fine, and very fine motion detection
  • 180 degree field-of-view
  • Tamper-resistant PIR lens
  • Up to 900 ft2 (81 m2) major motion coverage and 400 ft2 (36 m2) minor motion coverage
  • Two ambient light detect (ALD) options: Learning ALD mode: uses adaptive algorithm
  • Sensor learns user's preferred light level over time
  • Fixed ALD mode: four selectable light level thresholds: Hi, Med, Low, Min
  • Can be set to auto-on/auto-off or manual-on/auto-off per circuit
  • Adjustable timeout for each circuit (1, 5, 15, or 30 minutes)
  • Sensitivity adjustment: PIR (Hi, Med, Min), ultrasonic (Hi, Med, Low, Off)
  • Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent
  • Switches fan loads at 120 V
  • Works with Maestro accessory switches in multi-location applications
  • Requires neutral wiring.
Standards and Certifications
  • UL
  • TITLE24
  • TITLE20
  • cUL
  • NOM
