STI TRK444 SERIES 44 T RATING KIT

Manufacturer: Specified Technologies Inc | Catalog # TRK444 | Cooper Electric Part # 1240906
$431.74/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

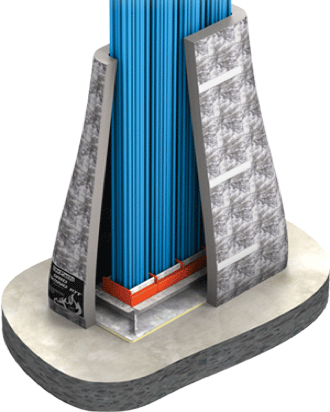

The EZ Path Series 44+ Fire-Rated Pathway is designed for high cable volume conditions through fire-rated walls and floors while eliminating the burden of ongoing maintenance. The Series 44+ incorporates self-sealing intumescent pads that automatically adjust to the installed cable fill without the need for user manipulation. Under fire exposure, the intumescent pads expand and swell resisting the passage of smoke and flame.

Technical Information

Material
Steel
Type
Fire Rated Pathway

Manufacturer Information

Brand
Ez-Path

General Product Info

12-Digit UPC
730573004463
Color
Silver
Product UPC
73057300446
Weight
15.36 lb

Dimensions

Height
23-1/2 Inch
Length
50-1/4 Inch
Width
23.5 in

Certifications and Compliance

Country of Origin
USA
Features
  • All data, video, and communications cable bundles shall utilize an enclosed fire rated pathway device wherever said cables penetrate rated walls and floors. The fire rated pathway shall contain a built-in fire sealing system sufficient to maintain the hourly fire rating of the barrier being penetrated. The self-contained sealing system shall automatically adjust to the installed cable loading and shall permit cables to be installed, removed, or retrofitted without the need to remove or reinstall firestop materials. The pathway shall be UL Certified and/or FM Systems Approved and tested to the requirements of ASTM E814 (UL1479) and CAN/ULC-S115.
  • Self Sealing design provides exceptional fire and smoke leakage ratings, Allows for easy Moves, Adds, and Changes, Designed for New and Existing conditions, Variety of accessories available for any field condition, Modular grid system for riser applications, Greatest achievable cable density of any solution on the market
  • Self Sealing design provides exceptional fire and smoke leakage ratings
  • Allows for easy Moves, Adds, and Changes
  • Designed for New and Existing conditions
  • Variety of accessories available for any field condition
  • Modular grid system for riser applications
  • Greatest achievable cable density of any solution on the market
Standards and Certifications
  • ASTM E814
  • UL 1479
  • CAN/ULC S115
  • ASTM E814 (UL1479)
  • CAN/ULC-S115
  • FM Approved: Yes
  • UL Certified Firestop: Yes
  • FBC System Compatible: No
Applications
  • Cables
  • Cable Tray
Properties
  • Finished product
  • Intumescent
  • Low VOC
  • No Expiration
  • Paintable
  • Re-Enterable
  • Smoke Barrier
  • STC Rating
  • ZERO Maintenance
Construction Type
  • EZ Path Series 44 Fire Rated Pathway is designed for easy installation in floors and walls all types of construction.
Industry
  • Residential
  • Commercial
  • Industrial
  • Construction
  • Government
Recommended Use
  • SpeedFlex Track Top Gasket (TTG) is a patented thin profile intumescent cover for gypsum wall framing for tracks, runners and studs that is designed to provide fire, smoke and acoustical ratings for head of wall joints, wall to wall joints, bottom of wall joints and perimeter fire-barrier between gypsum wall(s) and concrete. TTG is compatible with most ceiling track and provides an economical method of providing the required seal in rated and non-rated wall construction. Installed on the track prior to installation, the wall is effectively sealed against fire, smoke, and sound transmission during the construction process, thereby providing cost savings. TTG allows up to 100% movement. The red color is easy to identify and easy to inspect, and it is not susceptible to cracking, sagging, or dripping.
