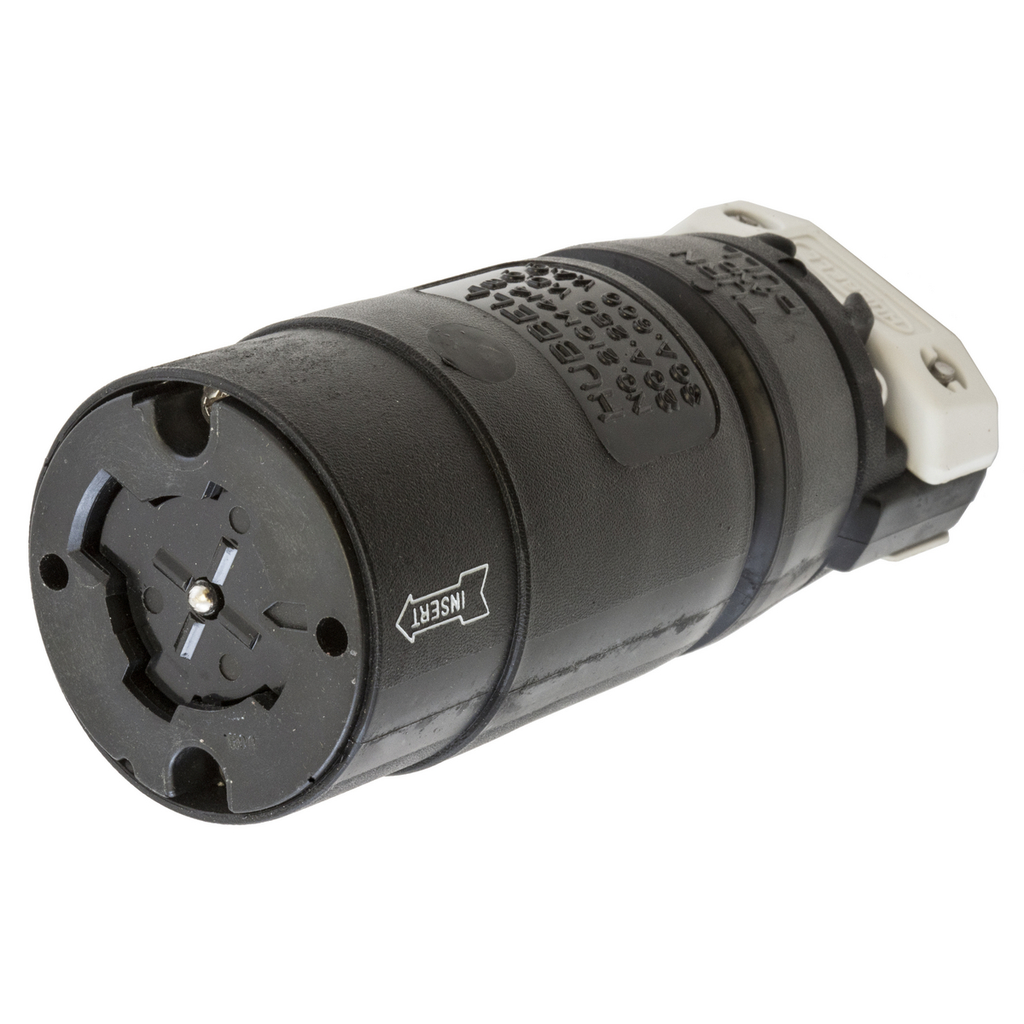

Product image for HWDK HBL21CM414B H/LOCK CONN, 3P4W,
Image thumbnail 0
Image thumbnail 1
Email

HWDK HBL21CM414B H/LOCK CONN, 3P4W,

Manufacturer: Hubbell Wiring Device | Catalog # HBL21CM414B | Cooper Electric Part # 1236072
$581.99/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Hubbellock®, Industrial, Female Connector Body, 30A 600V AC, 20A 250V DC, 3-Pole 4-Wire Grounding, Black nylon housing, Thermoplastic interior, Corrosion resistant, Non-NEMA, Screw Terminal, Black and White.

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial
Conductor Size
12-8 AWG
Current
20 Amp
Grade
Marine
Grounding
Non-Grounding
Material
Thermoplastic
Mounting Type
Cord
Number of Conductors
3-Wire Non-Grounding
Number of Poles
3 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,UL 498
TC Connection
Pressure Screw Terminal
Temperature Rating
-40 to 75 degrees C without Impact, -25 to 75 degrees C with Impact
Type
Non-Reversing
Voltage
250 Volt
Wire Count
4
Wire Size
10-6 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Hubbell-Lock®

General Product Info

12-Digit UPC
783585017570
Color
Black
Environmental Conditions
Corrosion-Resistant
GTiN
00783585017570
Product UPC
78358501757
Weight
1.1 lb

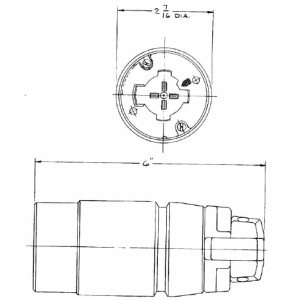

Dimensions

Height
2.44 Inch
Length
6 Inch
Width
2.44 in

Certifications and Compliance

Country of Origin
USA
Features
  • Spring loaded safety shutter contains arcing when mating or un-mating devices under load
  • Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
  • Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependabilit
  • Three-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust
  • Corrosion Resistant
