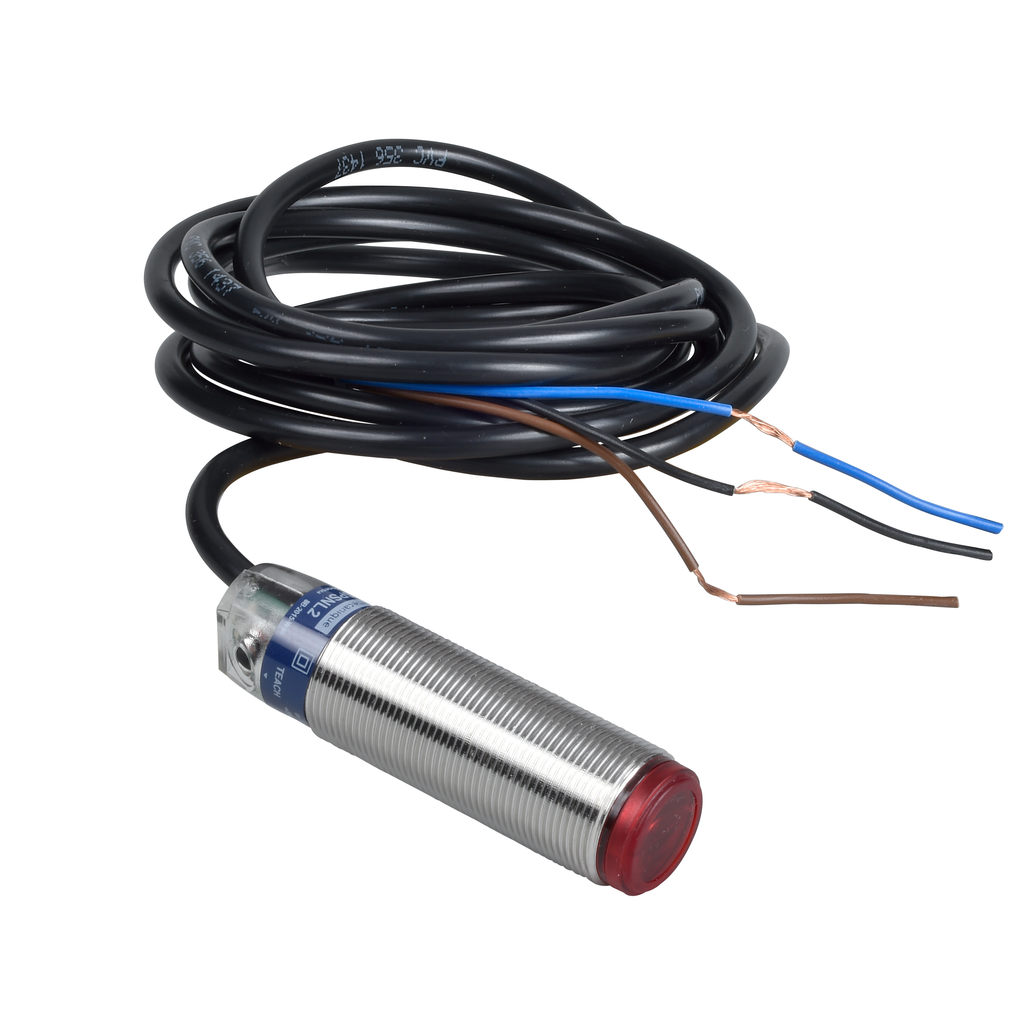

Product image for TES XUB0SPSNL2 Photoelectric sensors XU, XUB, multi, Sn 0...20 m, 12...24 VDC, cable 2 m
Image thumbnail 0
Image thumbnail 1
Email

TES XUB0SPSNL2 Photoelectric sensors XU, XUB, multi, Sn 0...20 m, 12...24 VDC, cable 2 m

Manufacturer: TES Electric | Catalog # XUB0SPSNL2 | Cooper Electric Part # 1233174
$117.30/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Photoelectric sensors XU, XUB, multi, Sn 0...20 m, 12...24 VDC, cable 2 m

Technical Information

Amperage
<= 100 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION)
Applications
-
Current
35 mA
Enclosure
IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529-IP69K DOUBLE INSULATION CONFORMING TO DIN 40050,STAINLESS STEEL : 304 CU
Enclosure Material
Stainless Steel
Material
Stainless Steel
Net Weight
0.105 kg
Operating Cycles
<= 250 HZ
Operating Temperature
-25-55 degrees C
Output
1 NO OR 1 NC PROGRAMMABLE,PNP,DISCRETE,SOLID STATE
Sensing Range
3-3 M POLARISED REFLEX NEED REFLECTOR XUZC50-20-20 M THRU BEAM NEED A TRANSMITTER XUB0SKSNL2T-0.12-0.12 M DIFFUSE WITH BACKGROUND SUPPRESSION-0.3-0.3 M DIFFUSE,> 0...65.62 FT (> 0...20 M)
Size
18 MM,78 MM
Storage Temperature
-40-70 degrees C
TC Connection
CABLE
Type
APPLICATION FOOD AND BEVERAGE MUTLIMODE,CYLINDRICAL M18,MULTIMODE,PHOTO-ELECTRIC SENSOR
Voltage
12...24 Volt DC REVERSE POLARITY PROTECTION

Manufacturer Information

Brand
Telemecanique

General Product Info

12-Digit UPC
389119010422
GTiN
03389119010429
Product UPC
38911901042
Weight
0.23 lb

Dimensions

Cable Length
2 m
Diameter
18 mm
Length
78 mm
Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL
Country of Origin
France
